OPERATION

B–63664EN/02

15. LASER FUNCTION

783

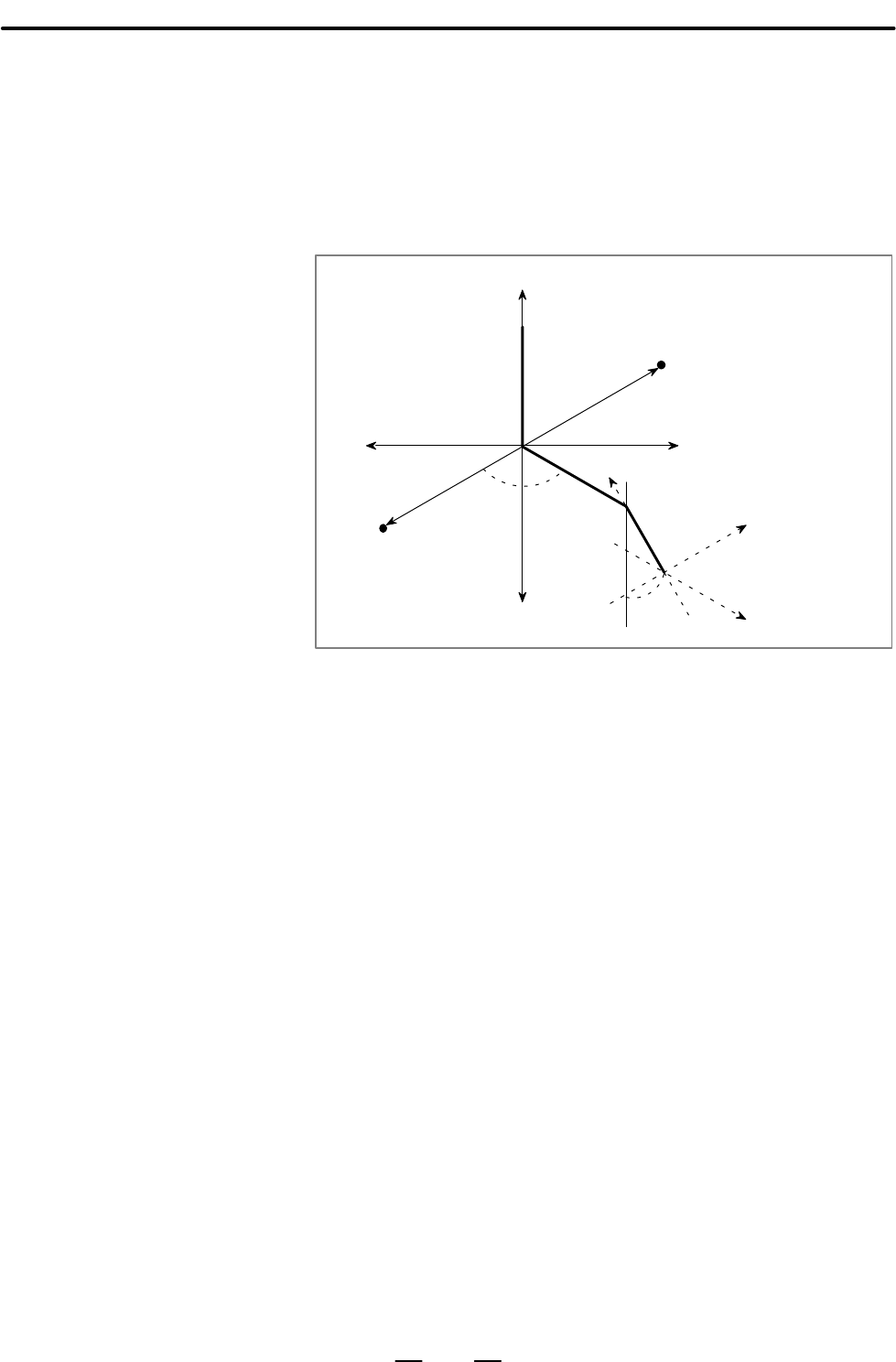

(2)Attitude control B

S Letting +Zh be a direction normal to the nozzle;

S Letting +Xh be the α–axis arm direction;

S With the thumb and the first and second fingers of the left hand

extended at right angles to one another, letting +Xh and +Zh be the

directions of the second finger and thumb, respectively; let +Yh be

the direction of the first finger.

Machine

coordinates

(x, y, z)

L1 +Zh

+Xh

Hand coordinate

system

+Yh

1 Turn on the manual operation in hand coordinate system signal

(G226#3 HNDCD).

2 Jog feed

Each axis moves in the ± Xh-axis direction using jog feed axis

direction signal ± X. They also move in the ± Yh-axis direction using

a ± Y signal and the ± Zh-axis direction using a ± Z signal.

For the jog feed in the hand coordinate system, one-axis operation

(including α and β axes) is performed at the same time. When jog feed

axis direction signal ± α and ± β are specified, the rotarion axis

operates in the nozzle tip fixed mode. If execution of the rotation axis

command stops, the hand coordinate system is updated to a new

coordinate system.

A linear axis command is executed in the updated hand coordinate

system.

3 Handle feed

Each axis can be moved in the ± Xh-axis direction using a manual

pulse generator when manual handle feed axis select signal HX

turned on. They also move in the ± Yh-axis direction using ± HY

signal and the ± Zh-axis direction using a ± HZ signal.

H4 (4th axis: α axis) and H5 (5th axis: β axis) handle feeds cannot be

accepted when hand coordinate mode select signal HNDCD is set to 1.

To move the α and β axes by the handle feed, set the HNDCD signal to

0. When manual handle feed axis select signal H4 or H5 is selected, set

a PMC ladder so that the HNDCD signal is “0”. This facilitates the

operation.

Set all the X–, Y–, and Z–axes to the same manual feedrate.

Procedure

Limitations
