16i/160i-LB Operators manual Page 194

Operators manual

Page of 912

/ 912

PROGRAMMING

12. COMPENSATION FUNCTION

B–63664EN/02

170

The following blocks have no beam movement. In these blocks, the beam

will not move even if cutter compensation is effected.

M05 ; M code output. . . . . . . . . . . .

S21 ; S code output. . . . . . . . . . . .

G04 X10.0 ; Dwell. . . . . . .

G10 L11 P01 R10.0 ; Cutter compensation value setting

(G17) Z200.0 ; Move command not included in . . . .

the offset plane.

G90 ; G code only. . . . . . . . . . . .

G91 X0 ; Move distance is zero.. . . . . . . . .

Commands (1)

to (6) are of no

movement.

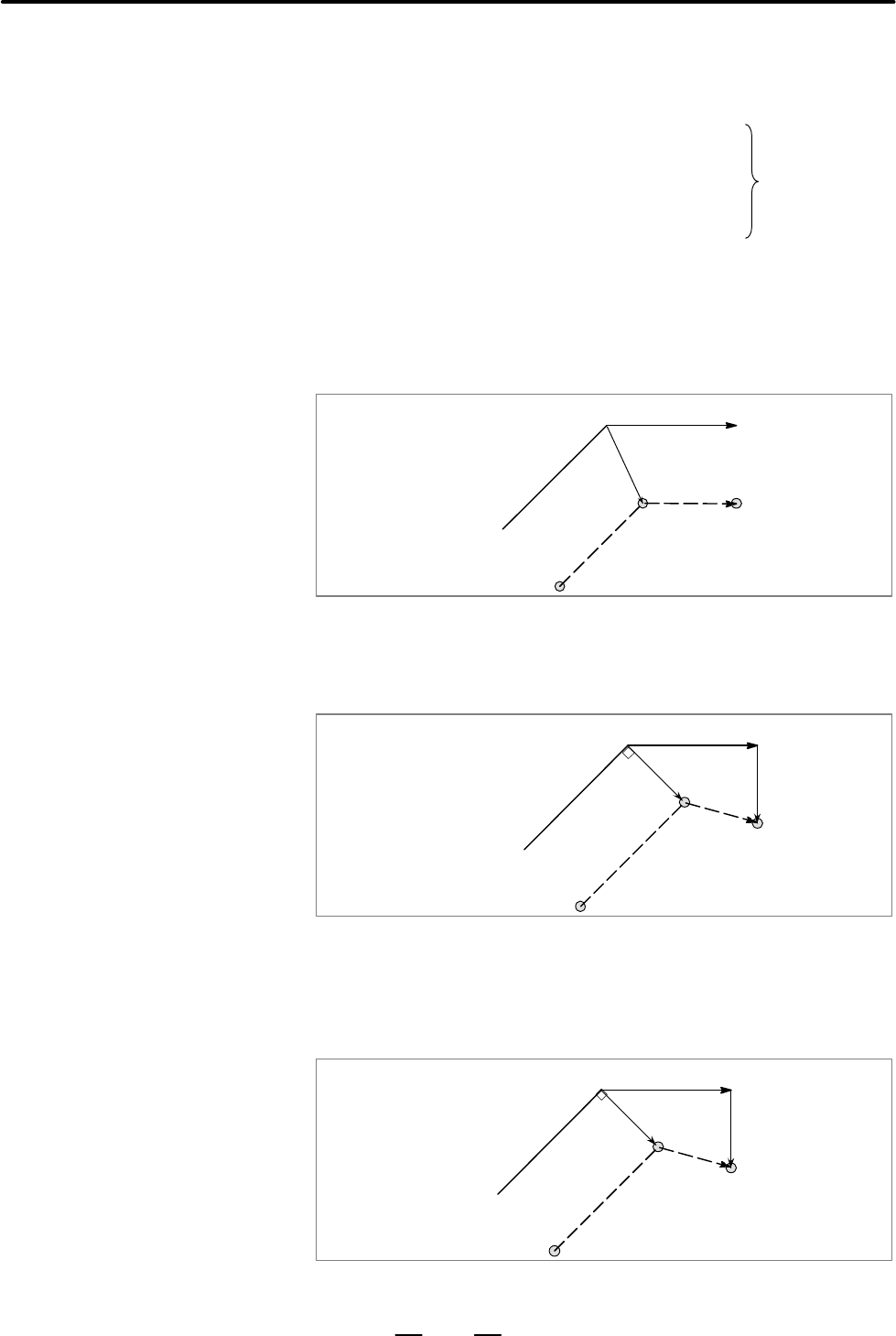

When a single block without baem movement is commanded in the offset

mode, the vector and beam center path are the same as those when the

block is not commanded. This block is executed at the single block stop

point.

N7 N8

N6 G91 X100.0 Y100.0 ;

N7 G04 X100.0 ;

N8 X100.0 ;

Beam center path

Programmed path

Block N7 is executed here.

However, when the move distance is zero, even if the block is commanded

singly, beam motion becomes the same as that when more than one block

of without beam movement are commanded, which will be described

subsequently.

N7 N8

N6 G91 X100.0 Y100.0 ;

N7 X0 ;

N8 X100.0 ;

Programmed path

Beam center pat

Two blocks without beam movement should not be commanded

consecutively. If commanded, a vector whose length is equal to the offset

value is produced in a normal direction to beam motion in earlier block,

so overcutting may result.

N7 N8

SSS

N6 G91 X100.0 Y100.0 ;

N7 S21 ;

N8 G04 X10.0 ;

N9 X100.0 ;

Blocks N7 and N8 are executed

here.

Programmed path

Beam center path

D A block without beam

movement

A block without beam move-

ment specified in offset

mode
