PROGRAMMING 18. SPECIFYING THE LASER FUNCTION

B–63664EN/02

373

S Method that rewrites parameter settings with G10

S Method that rewrites specified output condition values with the

PMC–CNC window

S Method that rewrites specified output condition values with system

variables of the macro executor

S Method that rewrites specified output condition values on the laser

setting screen

According to the actual feedrate, the laser power control function controls

each of the laser output conditions: peak power, pulse frequency, and

pulse duty cycle.

When laser power control mode, described below, is set with a G code or

external signal, the power specification, pulse frequency, and pulse duty

cycle are controlled according to the following formula:

M + Mo ) (Mc–Mo)

Mo : Each data item (power, frequency, duty cycle) when feedrate

F = 0 To be set by parameters

Mmin : Minimum clamp value for each data item (parameter)

To be set by parameters

Mc : Each specified data item when laser power control mode is set

To be set by programming

Fc : Specified feedrate when laser power control mode is set

To be set by programming

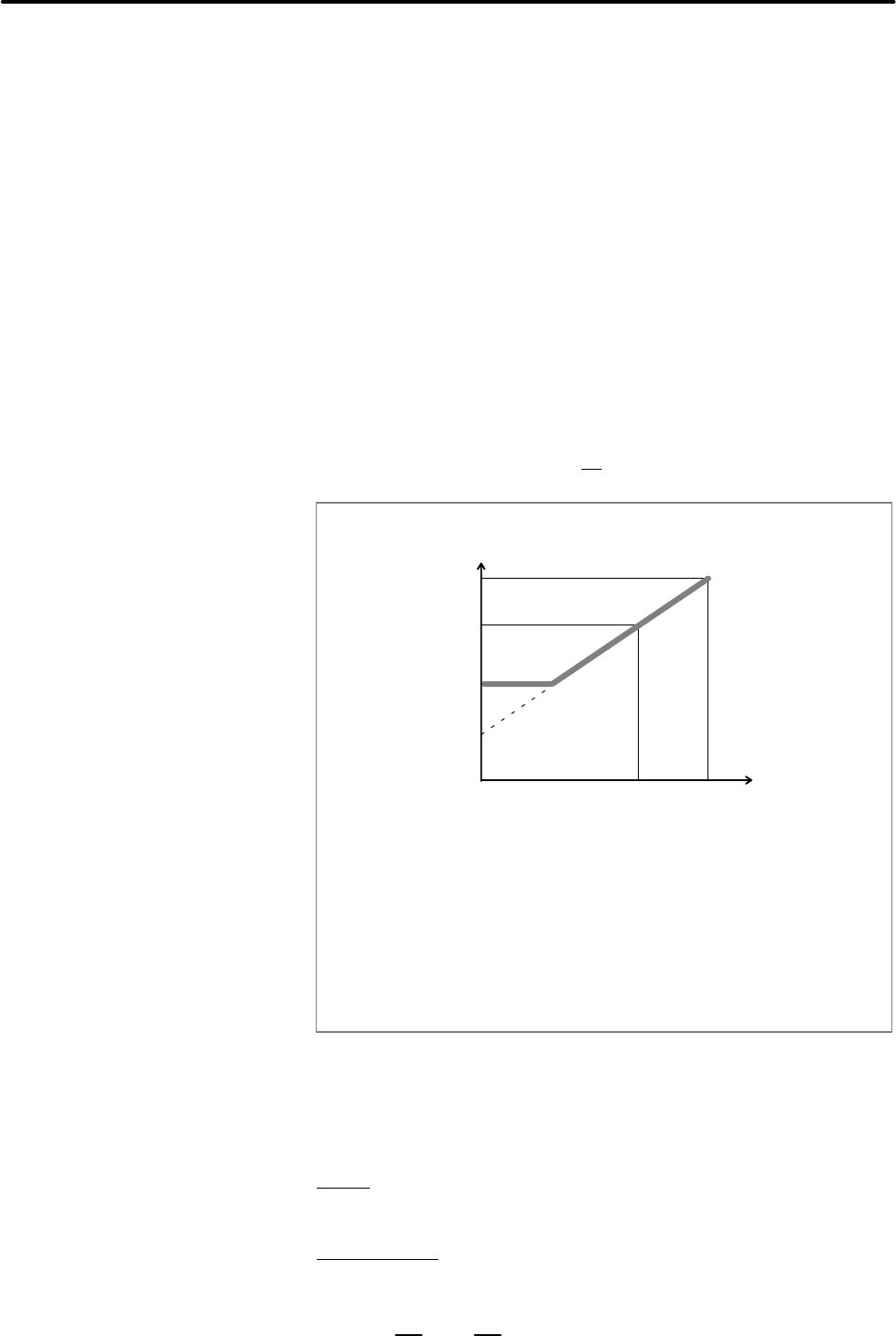

Feedrate

FFc

Mmin

Peak power

Pulse frequency

Pulse duty cycle

Laser power control mode can be set with a G code or external signal.

When power control mode is set, the power control mode on signal

(F224#1) is output.

G code

G63 P1; : Laser power control mode

G63 P0; : Laser power control mode cancel

External signal

G224#1 Power control mode signal

Laser power control

function

D Power control mode
