B-65285EN/03 TROUBLESHOOTING 3.TROUBLESHOOTING AND ACTION
- 101 -
3.3 SERVO SOFTWARE
If a servo alarm is issued, an alarm message is output, and details of the
alarm are also displayed on the servo adjustment screen or the
diagnosis screen. Using the alarm identification table given in this
section, determine the alarm, and take a proper action.

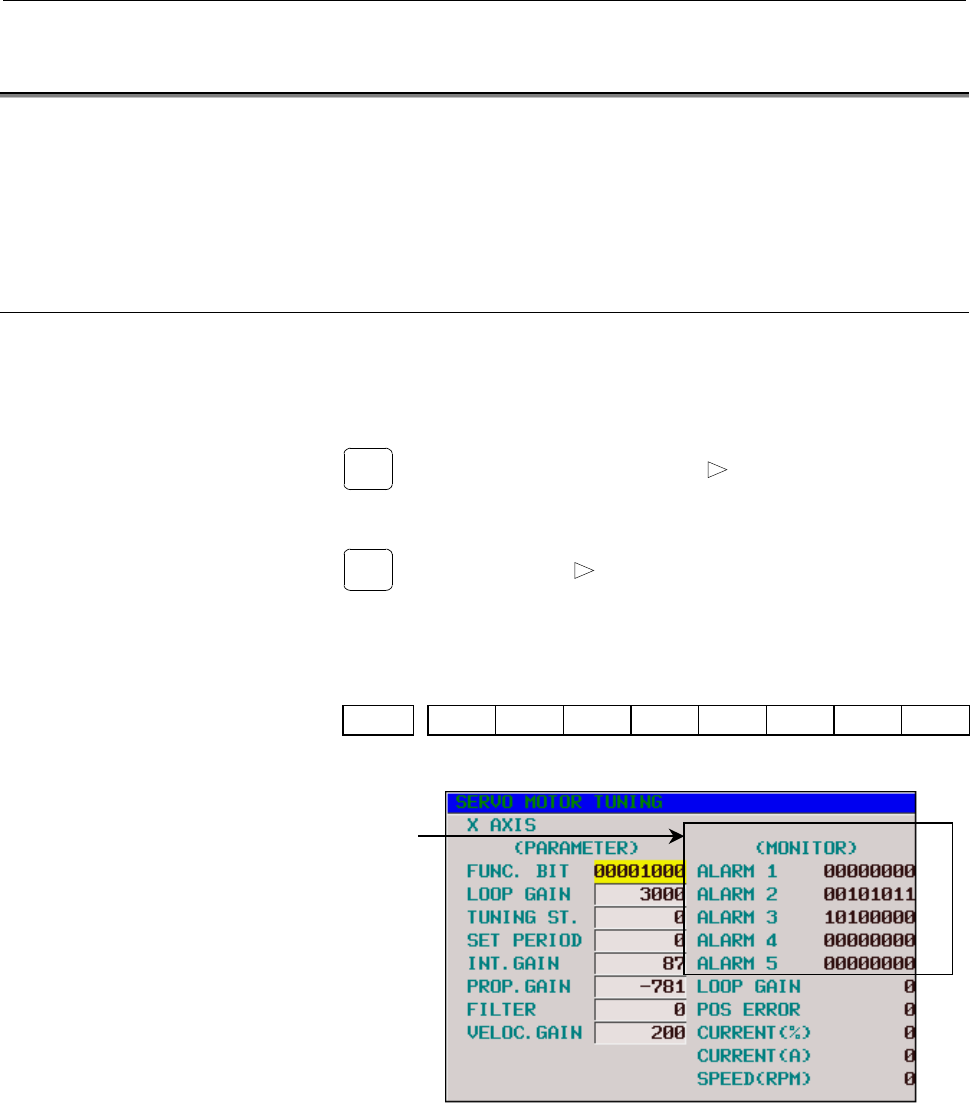

3.3.1 Servo Adjustment Screen
The following procedure can be used to display the servo adjustment
screen.
(The DPL/MDI of the Power Mate has no servo adjustment screen.)
l
ll
l Series 15i
SYSTEM
→
[CHAPTER]
→
[SERVO]
→
[ ]
→
[SERVO ALARM]
l
ll
l Series 16i, 18i, 20i, 21i, 0i
SYSTEM
→
[SYSTEM]
→
[ ]
→
[SV-PRM]
→
[SV-TUN]
If the servo setting screen does not appear, specify the following
parameter, then switch the CNC off and on again.
#7 #6 #5 #4 #3 #2 #1 #0
3111 SVS
SVS (#0)=1 (to display the servo setting screen)
Alarm detail
information
<1>
<2>
<3>
<4>
<5>
Fig. 3.3.1(a) Servo adjustment screen
