4.2 HOW TO REPLACE THE FAN MOTOR
4.2.1 Internal-Fan Motor Replacement Procedure Common to 60, 90,
and 150 mm Wide Units

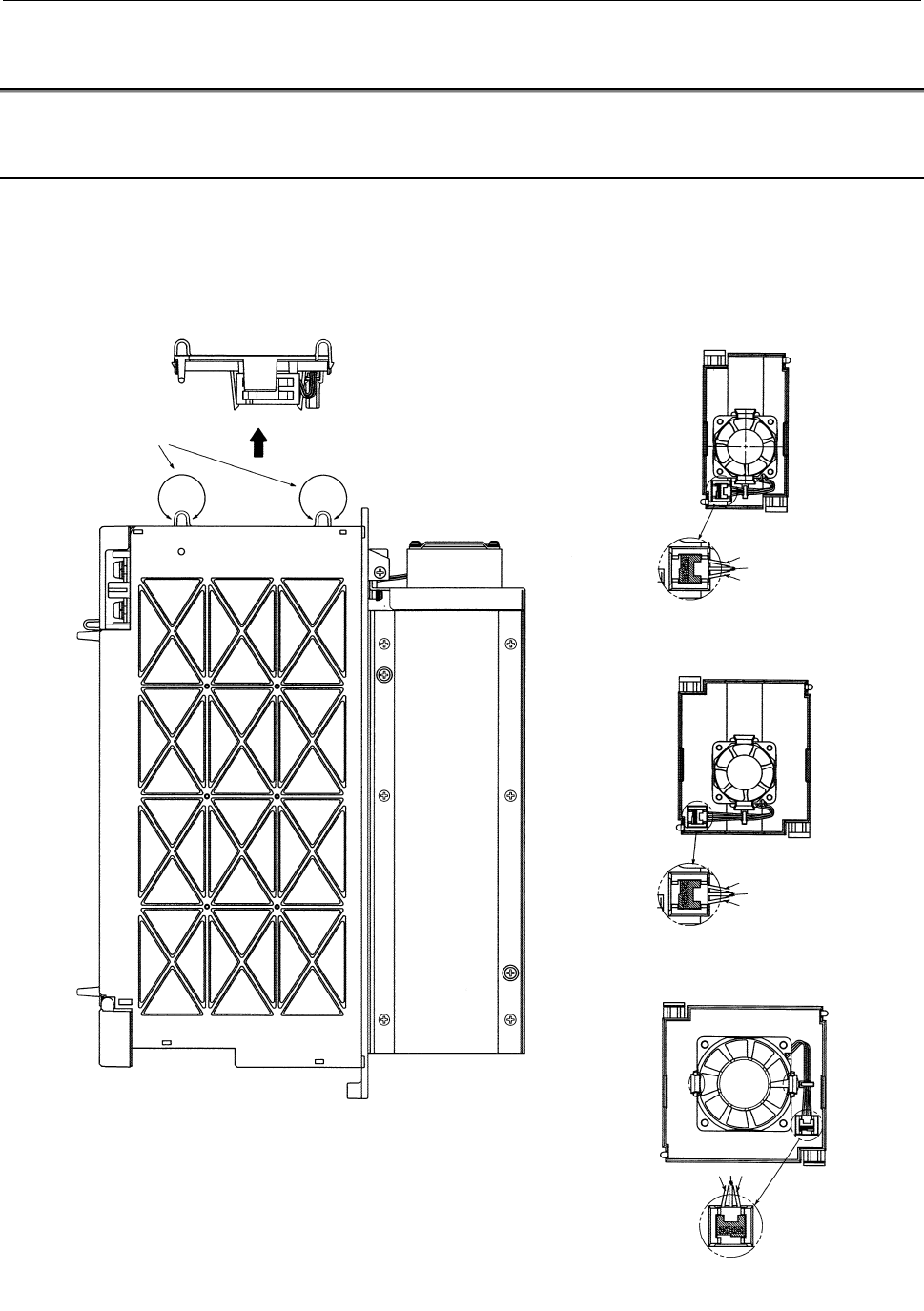

1 Holding the two lugs on the fan unit, lift the fan unit in the
direction of the arrow (toward the right in the figure).
Holding the two lugs on the fan unit, lift the fan
unit in the direction of the arrow (toward the
right in the figure).
Lugs
When replacing the fan motor, pay
attention to its orientation and the
orientation of the connector.
Pay attention to the
orientation of the
connector key.
Fan unit (for the 60 mm wide unit)
White
Black
Red
Pay attention to the
orientation of the
connector key.
Fan unit (for the 150 mm wide unit)
White
Black
Red
Pay attention to the
orientation of the
connector key.
Fan unit (for the 90 mm wide unit)
White
Black
Red
