4. SERVO FUNCTION DETAILS B-65150E/04

− 116 −

4.5.2 Observer Function

(1) Overview

The observer is used to eliminate the high-frequency component and to

stabilize a velocity loop when a mechanical system resonates at high

frequency of several hundred Hertz.

The observer is a status observer that estimates the controlled status

variables using the software.

In a digital servo system, the speed and disturbance torque in the

control system are defined as status variables. They are also estimated

in the observer. An estimated speed consisting of two estimated values

is used as feedback. The observer interrupts the high-frequency

component of the actual speed when it estimates the speed. High-

frequency vibration can thus be eliminated.

(2) Explanation

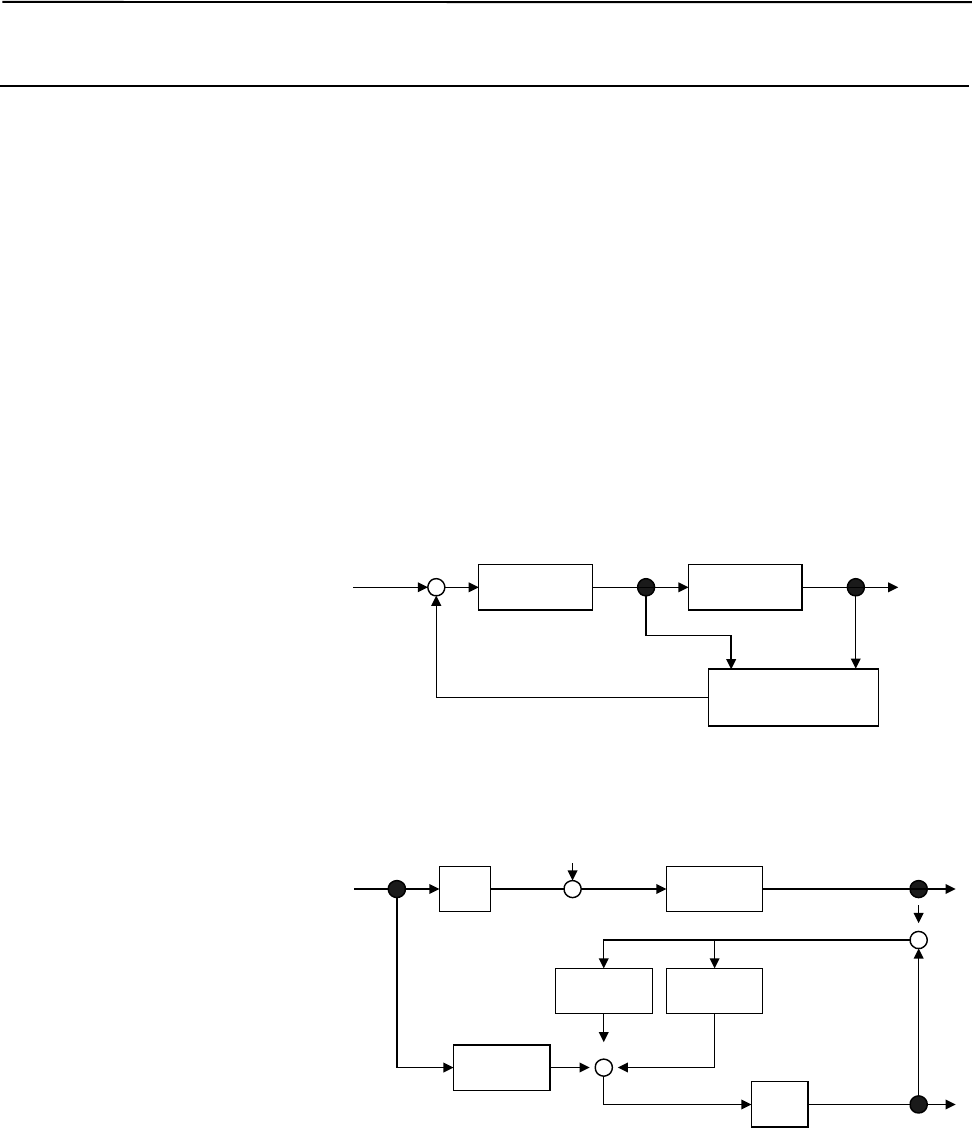

Fig. 4.5.2 (a) shows a block diagram of the velocity loop including an

observer.

Fig. 4.5.2 (a) Configuration of velocity loop including observer

Fig. 4.5.2 (b) shows a block diagram of the observer.

Fig. 4.5.2 (b) Block diagram of the observer

POA1, POK1, and POK2 in Fig. 4.5.2 (b) correspond to digital servo

parameters. The observer has an integrator as a motor model. POA1 is

a coefficient that converts the torque command into motor acceleration

and is the characteristic value of the motor. The motor model is

accelerated by this value. The actual motor is also accelerated by the

torque and disturbance torque that it generates.

PK1V/s + PK2V

TCMD

−

Velocity feedback

Estimated speed

Kt/(Jm • s)

Observer

VCMD

1/(Jm • s)

TCMD

−

Disturbance

POK1POK2/s

1/s

POA1

Velocity feedback

Motor

Motor model

Estimated

speed
