AC SERVO MOTOR Alpha series Parameter manual Page 451

Parameter manual

Page of 482

/ 482

4/7

Descri

tion

Design.

DateEd

01.03.19









Okita

Newly designed

Servo Tuning Tool

FANUC

TUNE

B-65150E/04-018

FANUC LTD

(Note4) You may meet “the lack of resource” when you use it on Windows98/Me and you open

several “Parameter Windows” and several “Graph Windows” at the same time. So we’ll

recommend Windows NT/2000.

(Note5) You can’t use online help if you don’t install Internet Explore 4.01 or later.

(Note6) You need more disk space to save some getting data.

(Note7) SVGA also can be available. But we think it is hardly to see the windows when you

open several windows.

(Note8) It’s not necessary the LAN-card when you use “

s Series CNC” which is adopt

WindowsCE. Because the NC can’t accept the LAN-card.(In this case please connect by

Internal Ethernet connector.)

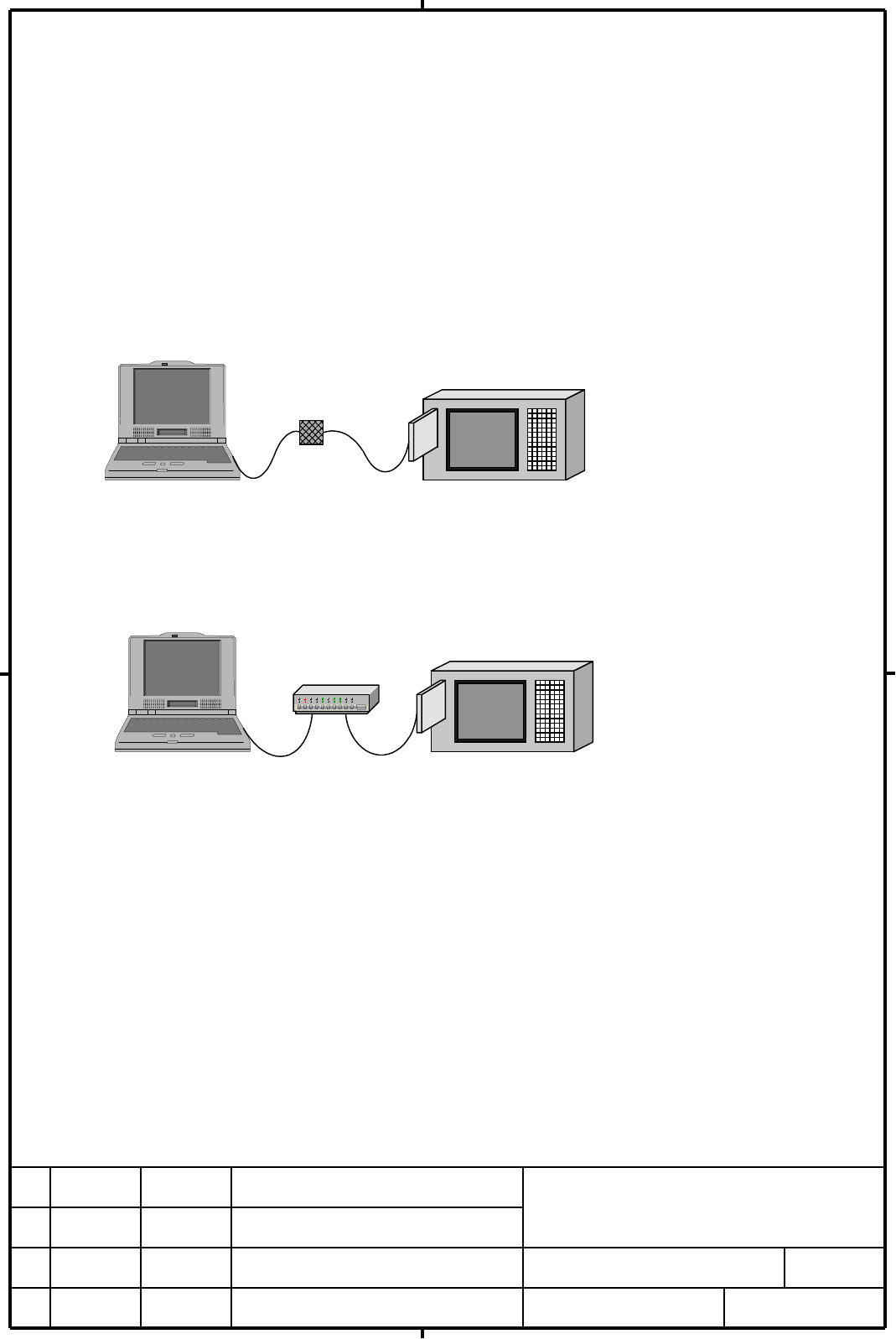

(Note9) The LAN-card, which FANUC provide, has the straight cable with RJ45 male

connector. To connect directly between CNC and PC please refer following figure.

* The cross type cable and coupler can be got at some PC shops.

And when you connect via HUB, please refer following figure. In this case you don’t need a

coupler and you have to prepare straight type cable.

[The Specification of software]

TUNE has three windows. They are called “Parameter Window”, “Graph Window” and

“Program Window” respectively. We’ll show you the specifications of each window.

(Parameter Window)

Read all CNC parameters and display them which are categorized by each function

Both Servo and Spindle parameters can be available

The parameters for automatic Acc./Dec. functions in High Speed, High precision

Controls also can be available.

Changing CNC parameters only by PC operation can be available.

File output : text file

Printer output : List type output can be available.

Coupler

Straight typ e cableC ross typ e Cable

Hub

Straight typ e cableStraight typ e cable
