AC SERVO MOTOR Alpha series Parameter manual Page 219

Parameter manual

Page of 482

/ 482

B-65150E/04 4. SERVO FUNCTION DETAILS

− 213 −

<9> Set a distance to be retraced at abnormal-load detection.

If the retrace amount parameter is 0, the motor stops at the point

where an abnormal load was detected. To retract the tool from the

location of collision quickly, set the retrace distance parameter.

1996

−

Retrace distance

2103 1103

[Increment system] Detection unit

[Setting value] Approximately 3 mm

<10> Run the machine with the alarm level set up.

If the abnormal-load detection function works incorrectly,

increase the alarm level.

<11> Nullify the estimated load torque output from the check board.

Now adjustment is completed.

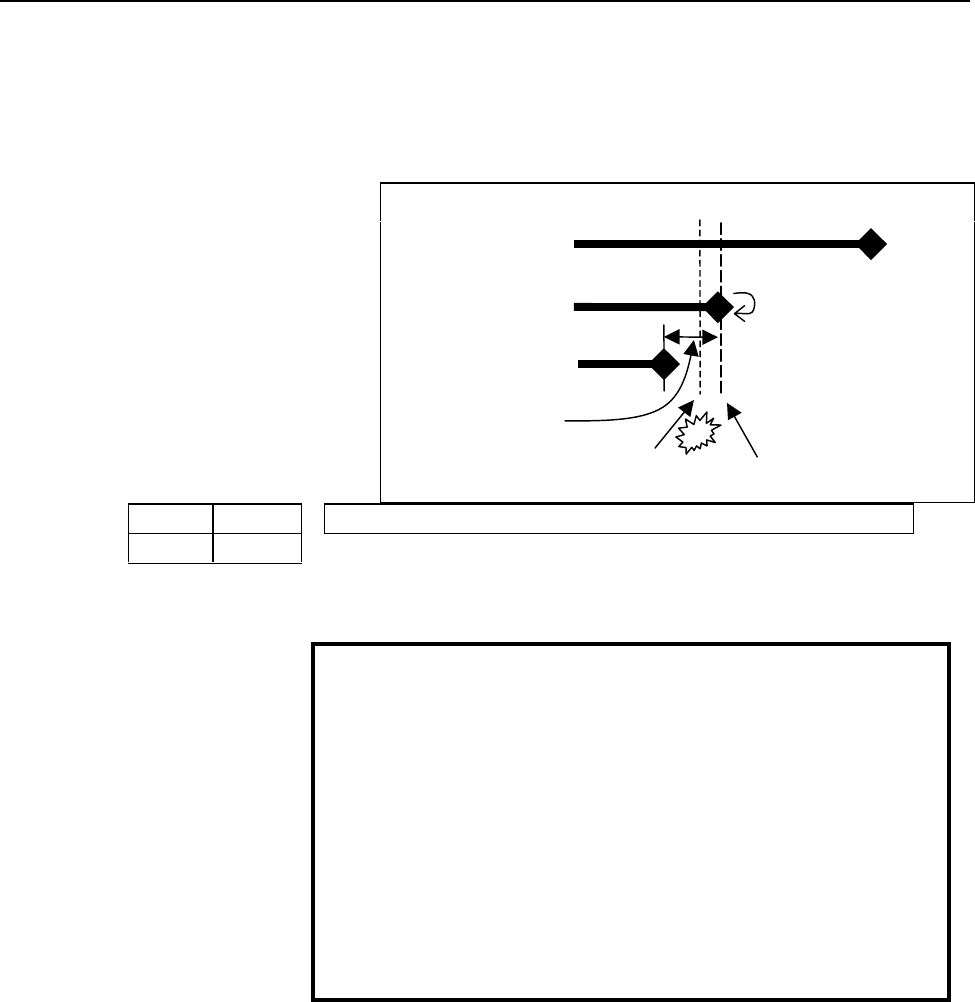

Conceptual diagram illustrating retrace

Collision

Abnormal load detected

The tool go beyond slightly,

and returns to the location

where the abnormal load was

detected.

Retrace distance

The tool is retracted from

the location where the

abnormal load was

detected to avoid

mechanical contact at the

ultimate stop position.

No abnormal load

detected

Abnormal load detected,

but no retrace is

performed.

Abnormal load detected,

and retrace is performed.

The tool plunges in at full torque.

NOTE

When the tool is moving faster or slower than the

velocity listed below, the tool will not go back even if

this parameter is set. It stops at the location where an

abnormal load was detected.

Let the value set in the retrace distance parameter be

A/8 × detection unit × 1000 [mm/min] or lower:

Stop at the location where an abnormal load was

detected.

A/8 × detection unit × 1000 [mm/min] or higher:

Stop after going back.
