3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 78 −

When the enlarged range is viewed, it is seen that the machine is

vibrating in the arc areas. This vibration is caused by a low velocity

loop gain. To reduce this vibration, two methods are available. One

method increases the velocity loop gain. (This method cannot be used

when the velocity loop gain has already been increased to the

oscillation limit.) The other method decreases the feedrate in the arc

areas with the arc radius based feedrate clamp function as described in

Subsec. 3.4.3 (6).

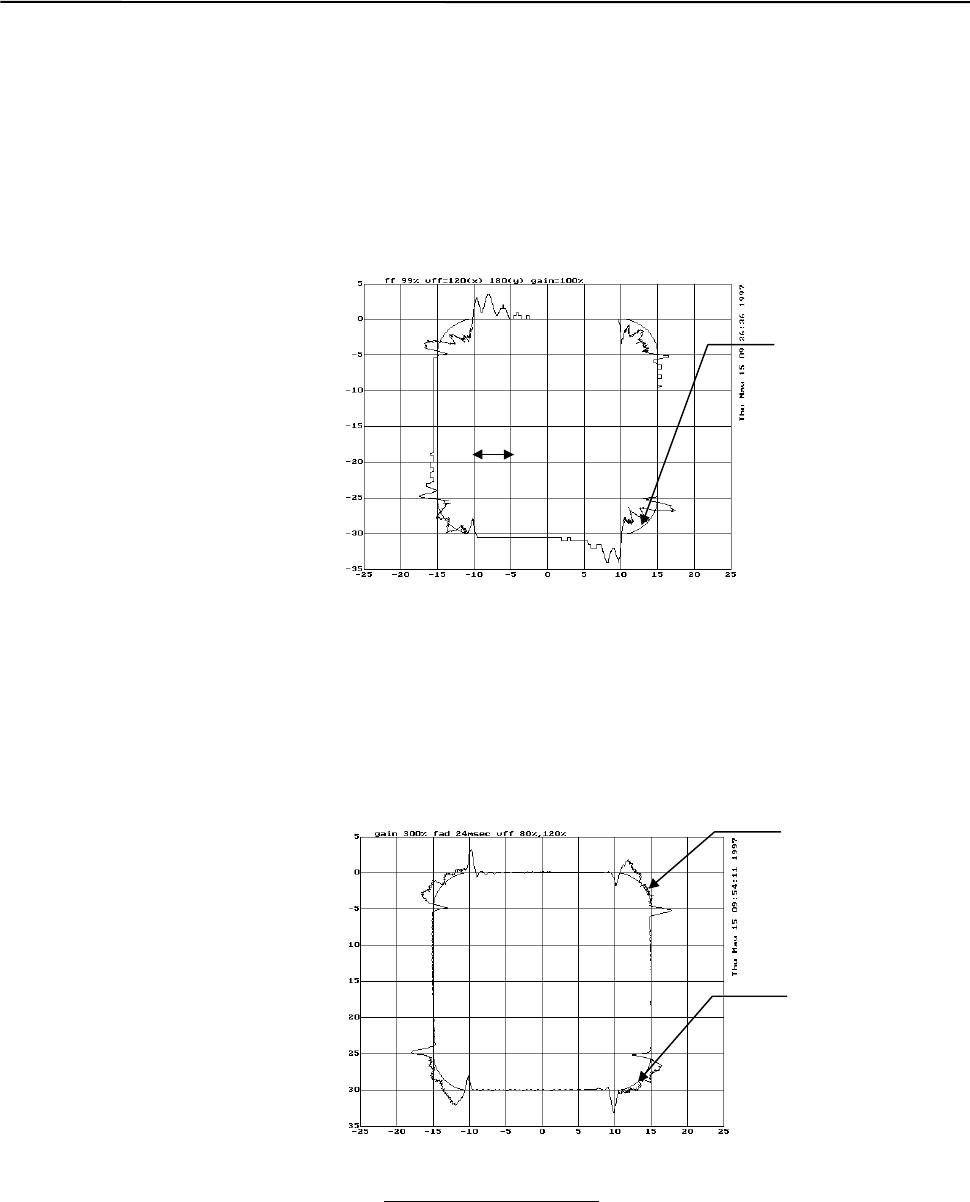

Fig. 3.4.3 (k) Velocity feed-forward adjustment

Swells in the arc areas can be reduced by increasing the velocity loop

gain (Fig. 3.4.3 (l)). However, figure errors that occur at the joints of

straight lines and arcs cannot be fully eliminated. Swells can be

additionally reduced by fine adjustment of the velocity feed-forward

coefficient or by using the arc radius based feedrate clamp function

described in Subsec. 3.4.3 (6).

The figure display is 5 mm wide.

The error

is 10

m in size.

Machine vibration

caused by insufficient

velocity control

response is observed.

Figure errors in

this area cannot

be fully eliminated

by increasing the

velocity loop gain.

Swells can be

reduced by

increasing the

velocity loop gain.

Fig. 3.4.3 (l) Velocity feed-forward adjustment

Velocity loop gain: 300%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)

Velocity feed-forward: X120%, Y180%
