AC SERVO MOTOR Alpha series Parameter manual Page 92

Parameter manual

Page of 482

/ 482

3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 86 −

<4> Set a highest possible position gain. While viewing the VCMD

waveform, make an adjustment so that the overshoot value lies

within a requested precision. After setting a position gain,

perform rapid traverse for a long distance to check that low-

frequency vibration due to an excessively increased position gain

does not occur. If the set position gain is too high, vibration after

an overshoot exceeds a requested precision. An overshoot itself

can be suppressed to some extent by adjustment of <5>.

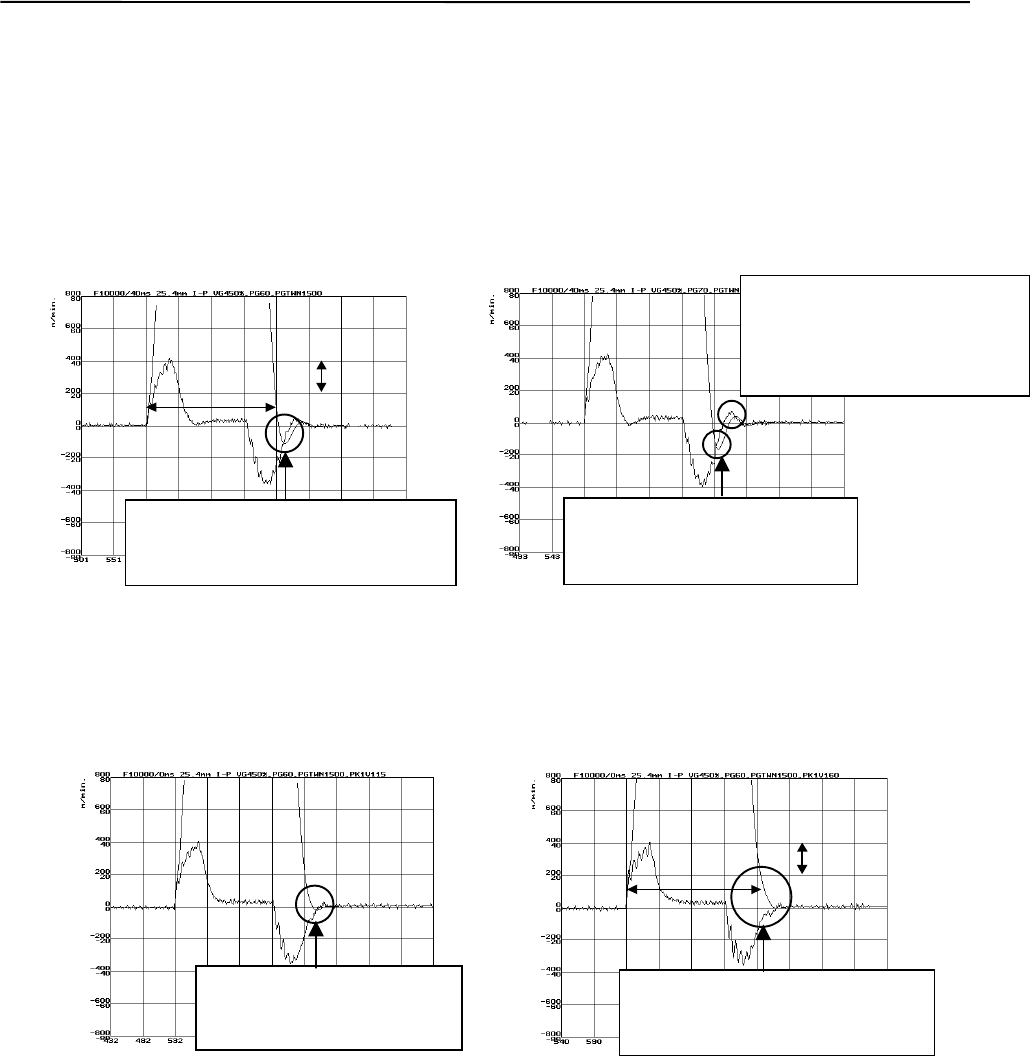

Fig. 3.4.4 (e) Adequate position gain Fig. 3.4.4 (f) Excessively high position gain

<5> Make a fine PK1V adjustment to eliminate an overshoot and

undershoot. If a large value is set for PK1V, a large undershoot

occurs.

Fig. 3.4.4 (g) After PK1V adjustment Fig. 3.4.4 (h) When the value of PK1V is too large

TCMD

VCMD

When the value of PK1V is

increased, the amount of an

overshoot decreases.

TCMD

VCMD

210 ms

When the value of PK1V is

increased excessively, the amount

of an undershoot increases.

TCMD

VCMD

200 ms

When a precision of 10 µm is

requested, adjust the overshoot value

to within 10

If the position gain is too high, the

requested precision 10 µm is

exceeded.

A large vibration occurs in a

return movement. Suppress the

vibration to within 50% of the

requested precision.
