2. SETTING α SERIES SERVO PARAMETERS B-65150E/04

− 28 −

(5) Reference position return when a serial type separate detector is used as

an absolute-position detector

When a serial type separate detector is used as an absolute-position

detector, the phase-Z position must be passed once before a reference

position return is performed. Then, turn the CNC off then back on to

allow reference position return.

When reference position return is performed, adjust the deceleration

dog so that the grid-shifted reference position is not too near the

deceleration dog.

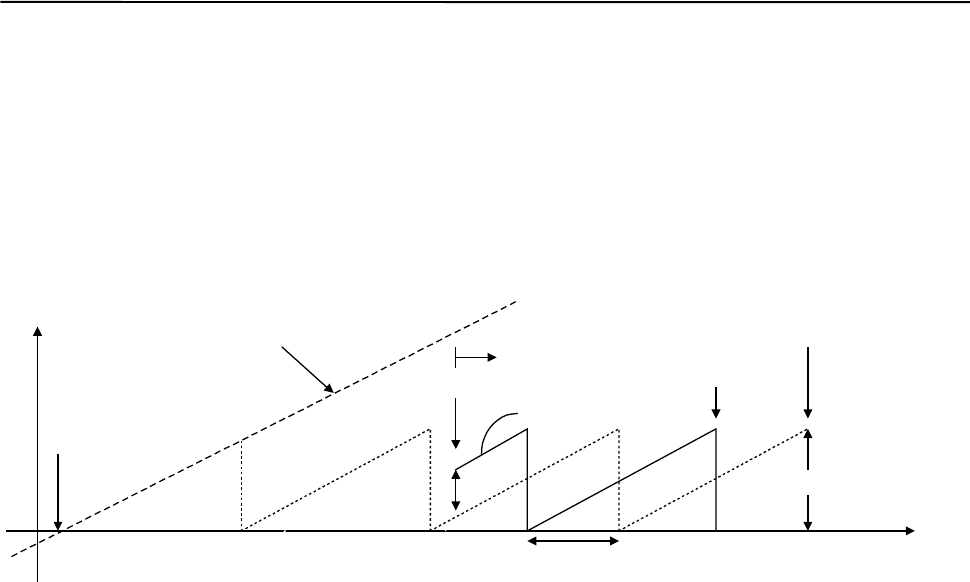

Encoder position

Reference position data

of the detector = 0

Position data from

the encoder

Start position of

reference position return

Direction of reference

position return

Deceleration dog

To be adjusted so that the grid-shifted reference

position is not too near the deceleration dog.

Reference counter capacity

Grid-shifted reference

position

Reference position not grid-shifted

Machine position

Grid shift amount

Reference counter
