AC SERVO MOTOR Alpha series Parameter manual Page 269

Parameter manual

Page of 482

/ 482

B-65150E/04 4. SERVO FUNCTION DETAILS

− 263 −

1737

−

Position feedback switching time constant τ (JITEI)

2126

−

Set this parameter for the main axis only. Set 0 for this parameter for the

sub-axis.

[Valid data range] 0 to 4096

[Method of setting] {1 − exp (−1 ms/τ)} × 4096

[Standard setting] 0

When τ = ∞ : Parameter = 0

When τ = 50 ms: Parameter = 81

When τ = 0: Parameter = 4096

 Notes on the position feedback switching function

 Reference position return operation and positioning are

performed with the main axis only. Note, however, that during

movement (command ≠ 0), position feedback on the driving side

is used for position control. (A switching time constant is to be

specified with the parameter.)

 Adjust the switching time constant if a shock is observed at the

time of position feedback switching.

 Basically, the position feedback switching function assumes

setting of semi-closed loop mode.

When the position feedback switching function is to be used with

full-closed loop mode, divide the scale signal into two to apply the

same signal to both the main and sub-sides.

Moreover, set full-closed loop mode for the main and sub-sides as

well.

Separate main

axis

Separate

sub-axis

Feedback cable

Scale

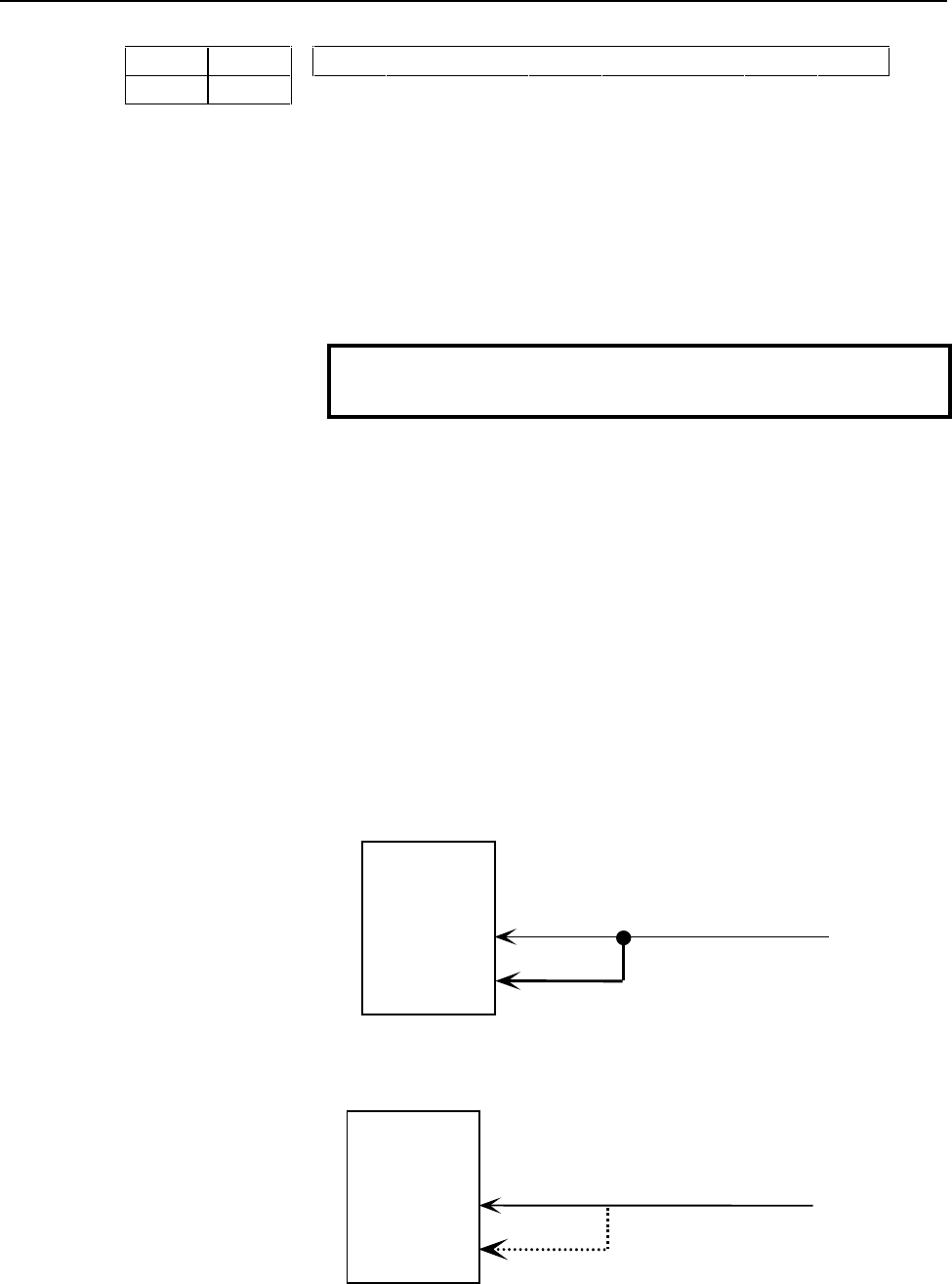

Fig. 4.17.8 (b) Cable on the scale side when the position feedback

switching function is used (full-closed loop)

Separate main

axis

Separate sub-

axis

Feedback cable

Scale

NOTE) It is unnecessary to branch

out.

Enable the full-closed loop feedback sharing function.

Fig. 4.17.8 (c) Example of using the full-closed loop feedback sharing

function together with the position feedback switch function

NOTE

This parameter is valid only when PFBSWC = 1.
