B-65150E/04 3. α SERIES PARAMETER ADJUSTMENT

− 75 −

(5) Velocity feed-forward coefficient adjustment (example using a square

figure with 1/4 arcs)

[Purpose of adjustment]

Feed-forward coefficient adjustment can reduce positional

deviation and figure errors. If the response of the velocity loop for

executing a velocity command is low, velocity control cannot be

exercised as specified where the specified acceleration varies to a

large extent, thus causing a figure error. The response of the

velocity loop can be improved by increasing the velocity loop gain

and by adjusting the velocity feed-forward coefficient.

Velocity feed-forward multiplies a specified rate of variation

(acceleration) by an appropriate coefficient for torque command

compensation. In the servo velocity loop (PI control), a

compensation torque occurs only when a difference (velocity

deviation) between a specified velocity and actual velocity

actually occurs. On the other hand, velocity feed-forward

performs torque command compensation according to an

acceleration value specified beforehand. So, a figure error that

occurs due to a velocity loop delay can be reduced.

[Guideline for adjustment value setting]

The formula below is applicable. In actual adjustment, however,

make an adjustment starting with a velocity feed-forward

coefficient of 100.

(Motor rotor inertia + load inertia)

(Velocity feed-forward coefficient) = 100 ×

Motor rotor inertia

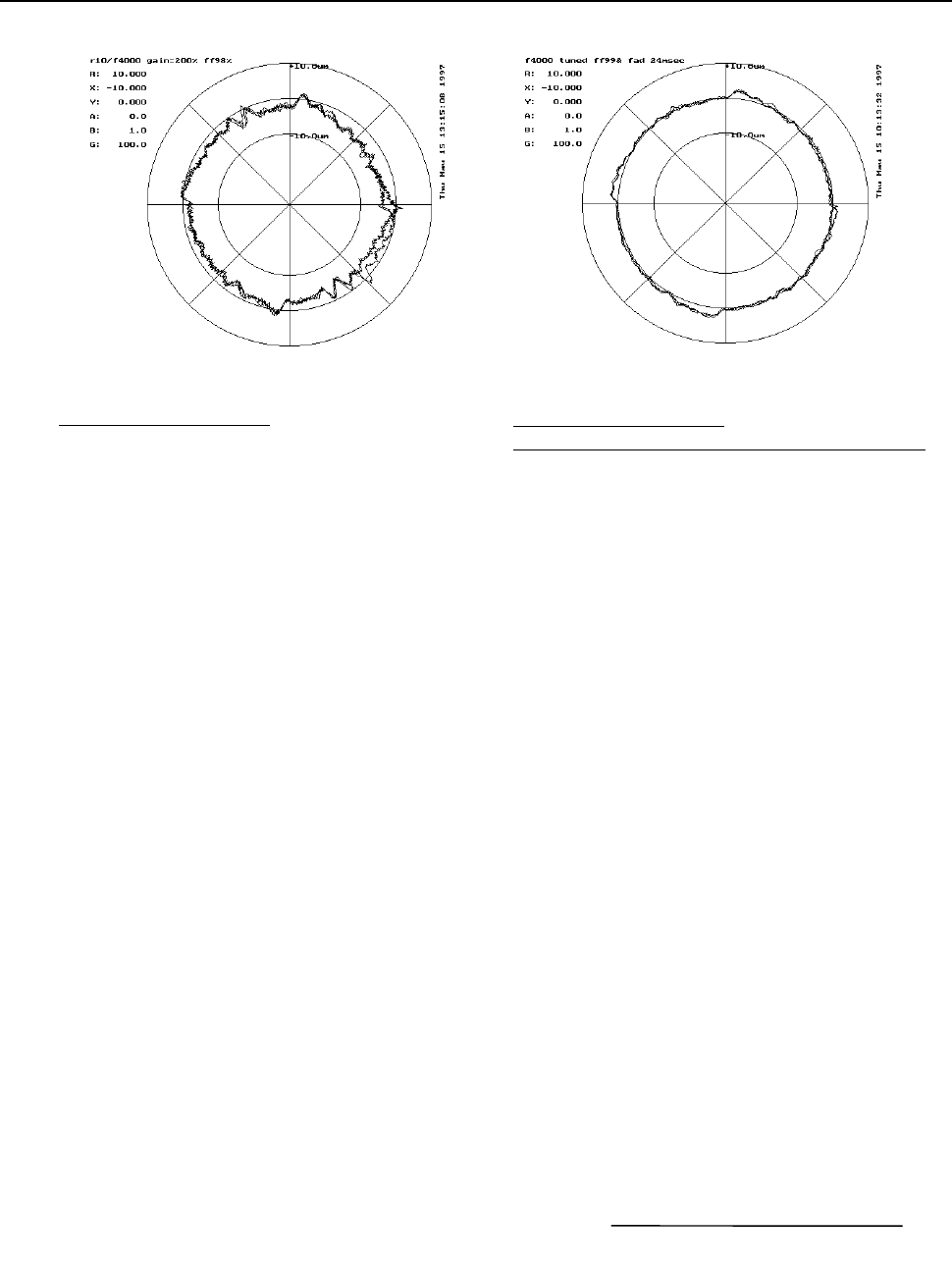

Fig. 3.4.3 (c) Effect of velocity loop gain

Velocity loop gain: 200%

Advanced preview feed-forward coefficient: 98%

FAD time constant: 24 ms (linear type)

Fig. 3.4.3 (d) Effect of velocity loop gain

Velocity loop gain: 300%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)
