3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 84 −

3.4.4 High-Speed Positioning Adjustment Procedure

(1) Overview

This section describes the adjustment procedure for high-speed

positioning required with a punch press and PC board drilling machine.

(2)

Adjustment procedure

Make a high-speed positioning adjustment while viewing the VCMD

(servo error amount) and TCMD. Set a measurement range as

described below.

• VCMD: Adjust the VCMD magnification, measurement voltage

level (when an analog check board is used), and

measurement range (when the servo adjustment

software is used) to allow viewing to a requested

positioning precision. In the example below, a

requested precision of 10 µm is assumed.

• TCMD: Make an adjustment to view a specified maximum

current value. If an adjustment is made to reduce

positioning time, TCMD saturation may occur. Make

an adjustment so that the TCMD lies within a specified

maximum current.

<1> I-P control setting

Select I-P control for velocity loop control. In general, PI control

reduces start-up time for a command, but requires a longer setting

time, so that PI control is not suitable for high-speed positioning.

On the other hand, I-P control reduces time required to reach a

target position, so that I-P control is generally used for high-speed

positioning adjustment.

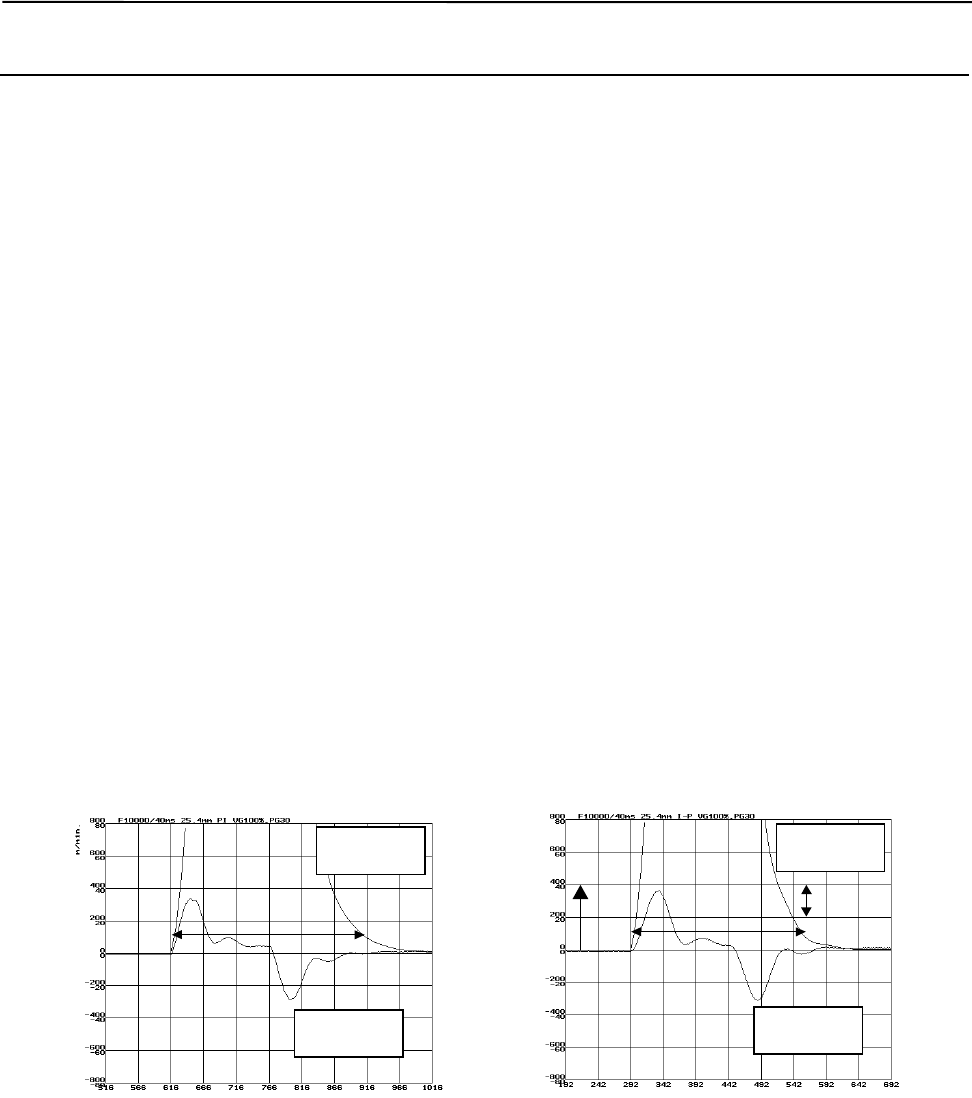

Fig. 3.4.4 (a) When PI control is used Fig. 3.4.4 (b) When I-P control is used

TCMD

VCMD

270 ms

Specified maximum

300 ms

TCMD

VCMD
