3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 82 −

[Actual adjustment procedure]

Execute the following program, and measure the actual path.

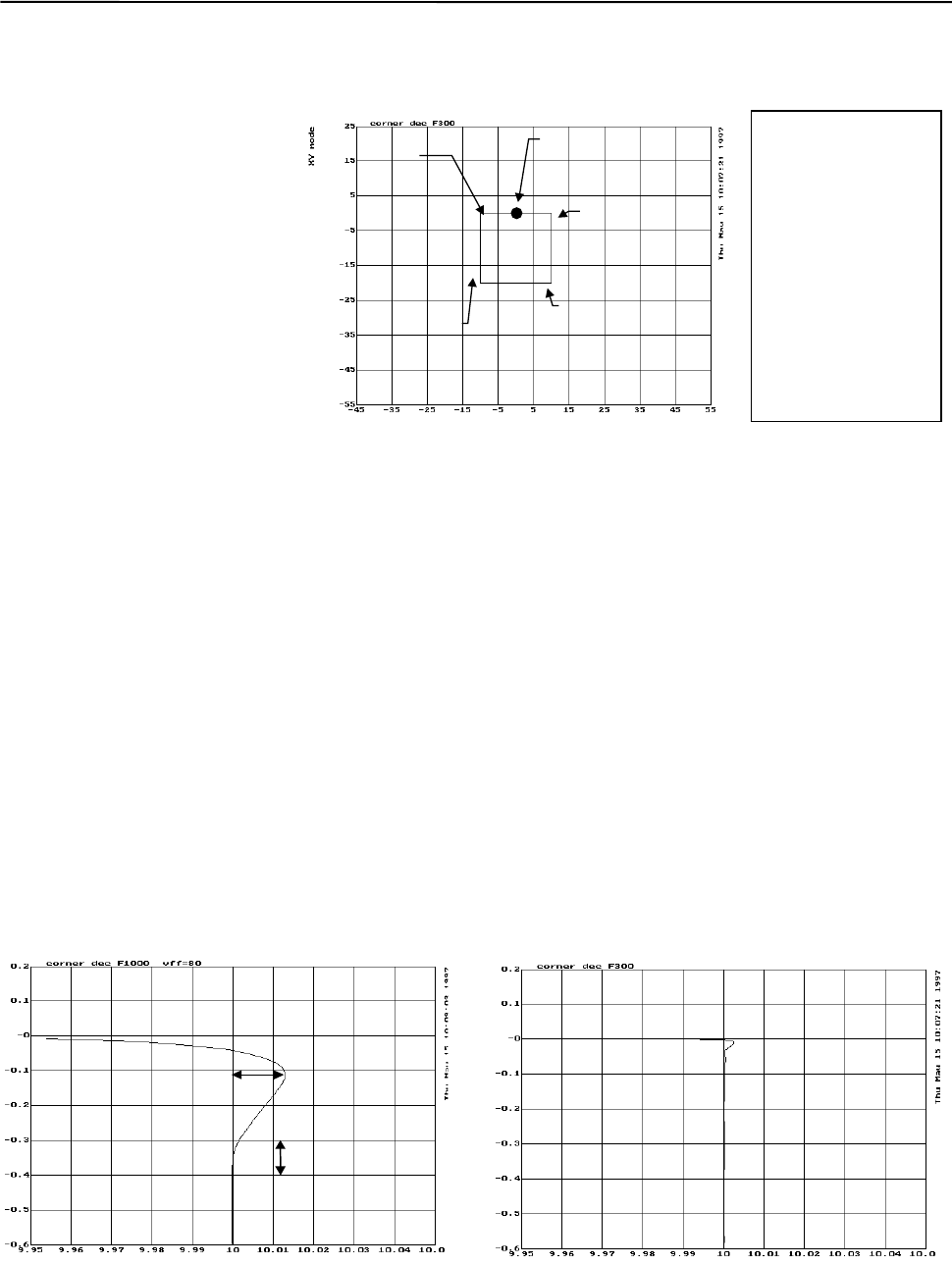

Fig. 3.4.3 (p) Programmed figure

The XY mode (ctrl-X) is used for drawing. To observe an overshoot

along an axis to be stopped, the figure is enlarged in the direction of the

axis to be stopped. Corner 1 and corner 3 in Fig. 3.4.3 (p) are enlarged

in the X-axis direction, and corner 2 and corner 4 are enlarged in the

Y-axis direction. In the examples below, corner 1 is displayed using

0.01 mm/div in the X-axis direction and 0.1 mm/div in the Y-axis

direction.

In Fig. 3.4.3 (q) where a reduced corner feedrate of F1000 is set, an

overshoot of 10 µm or more has occurred. In Fig. 3.4.3 (r), however,

the overshoot is reduced to about 3 µm.

If an overshoot cannot be removed by setting a reduced corner feedrate

close to 0, the acceleration of acceleration/deceleration before

interpolation may be too large. In such a case, set a longer time for

acceleration/deceleration before interpolation. (In this case, a longer

machining time results.)

Fig. 3.4.3 (s) shows the feedrate along the X-axis and Y-axis (corner 1)

when the corner deceleration function is used.

Fig. 3.4.3 (q) Reduced corner feedrate F1000 Fig. 3.4.3 (r) Reduced corner feedrate F300

G91;

G08P1;

G01X10.F4000;

G01Y-20.;

G01X-20.;

G01Y20.;

G01X10.;

G08P0;

G04X3.;

M99;

Start and end point

Corner 1

Corner 2

Corner 3

Corner 4

0.01 mm

Overshoot
