AC SERVO MOTOR Alpha series Parameter manual Page 80

Parameter manual

Page of 482

/ 482

3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 74 −

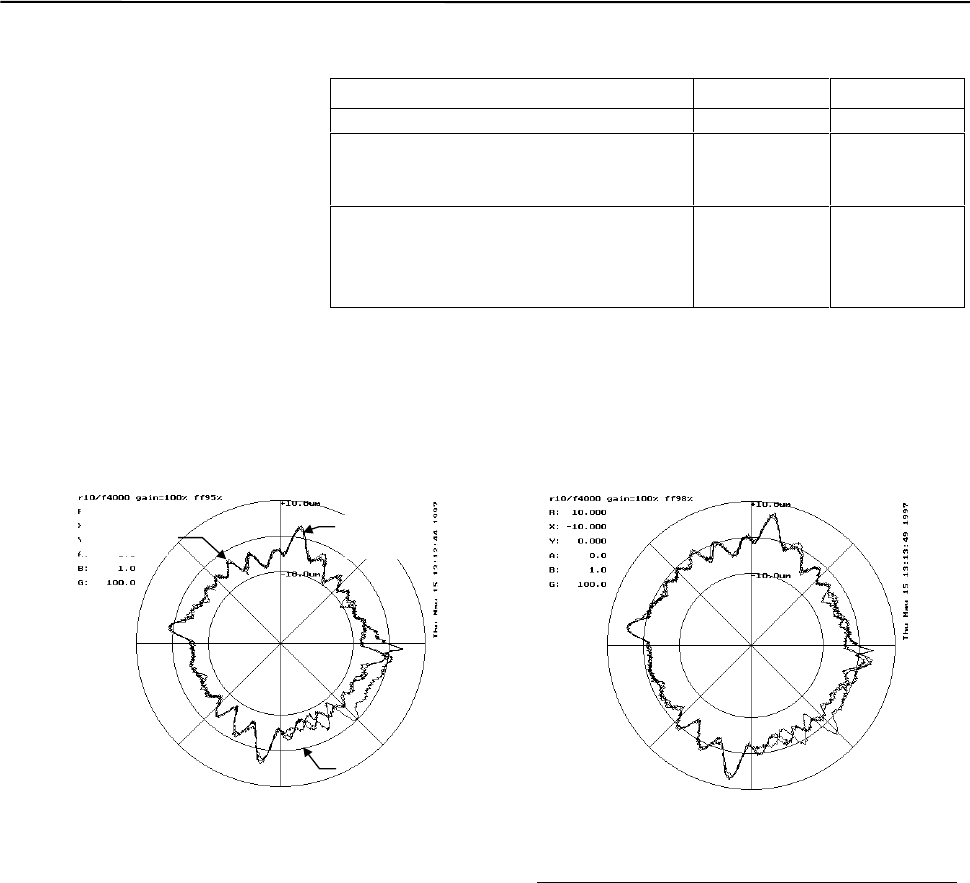

Table 3.4.3 (b) Codes for starting and ending each mode

Start End

FS16, 18, 21 + Advanced preview control G08P1 G08P0

FS16 + High-precision contour control

FS15B + High-precision contour control

FS15i + Fine HPCC

G05P10000 G05P0

FS16i + AI contour control

FS16i + AI nano-contour control

FS15B + Advanced preview control

FS21i + AI advanced preview control

G05.1Q1 G05.1Q0

In Fig. 3.4.3 (a), the feed-forward coefficient is insufficient, resulting

in a radius reduction of about 5 µm. In addition, the velocity loop gain

is low, so that swells and quadrant protrusions are observed. By

adjusting the feed-forward coefficient as shown in Fig. 3.4.3 (b), the

arc radius reduction can be reduced to nearly 0.

In the figures above, a low velocity loop gain is used for measurement.

By using an increased velocity loop gain, swells and quadrant

protrusions can be reduced (Fig. 3.4.3 (c)). Increase the velocity loop

gain to 70% to 80% of the limit. Adjust the feed-forward coefficient

finely, and apply quadrant protrusion compensation (backlash

acceleration/deceleration) to reduce the quadrant protrusions and

improve the roundness (Fig. 3.4.3 (d)).

Specified

arc

Swell

Quadrant

protrusion

Fig. 3.4.3 (a) Feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 95%

FAD time constant: 24 ms (linear type)

Fig. 3.4.3 (b) Feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 98%

FAD time constant: 24 ms (linear type)
