4. SERVO FUNCTION DETAILS B-65150E/04

− 268 −

4.17.10 Notes on Tandem Control

(1) Tandem control and synchronous control selection criteria

Two control methods are supported to enable the control of one axis

using two motors: tandem control and synchronous control. The

synchronous control method controls the position of the master axis

and slave axis by using the same command. If a position feedback

difference occurs between the two motors, control is applied by

correcting the slave axis. The servo system applies position control

separately to the master and slave axes.

The tandem control method exercises position control over the main

axis only; this method exercises torque control over the sub-axis only.

(For clarity, the terms master and slave are used for synchronous

control, while main and sub are used for tandem control.)

When building a machine system, select a suitable control method,

paying careful attention to the differences between the control

methods.

In general, apply the following guideline:

 When the machine system is rigid or supports back-feed, select

tandem control.

 When the machine system exhibits effects such as twisting, or

does not support back-feed, select synchronous control (for

example, when a gantry type machine or worm wheel is used).

Machine system rigid?

Yes

Back-feed possible?

Yes

Synchronous control Tandem control

Main

motor

Reducer

Sub-

motor

Reducer

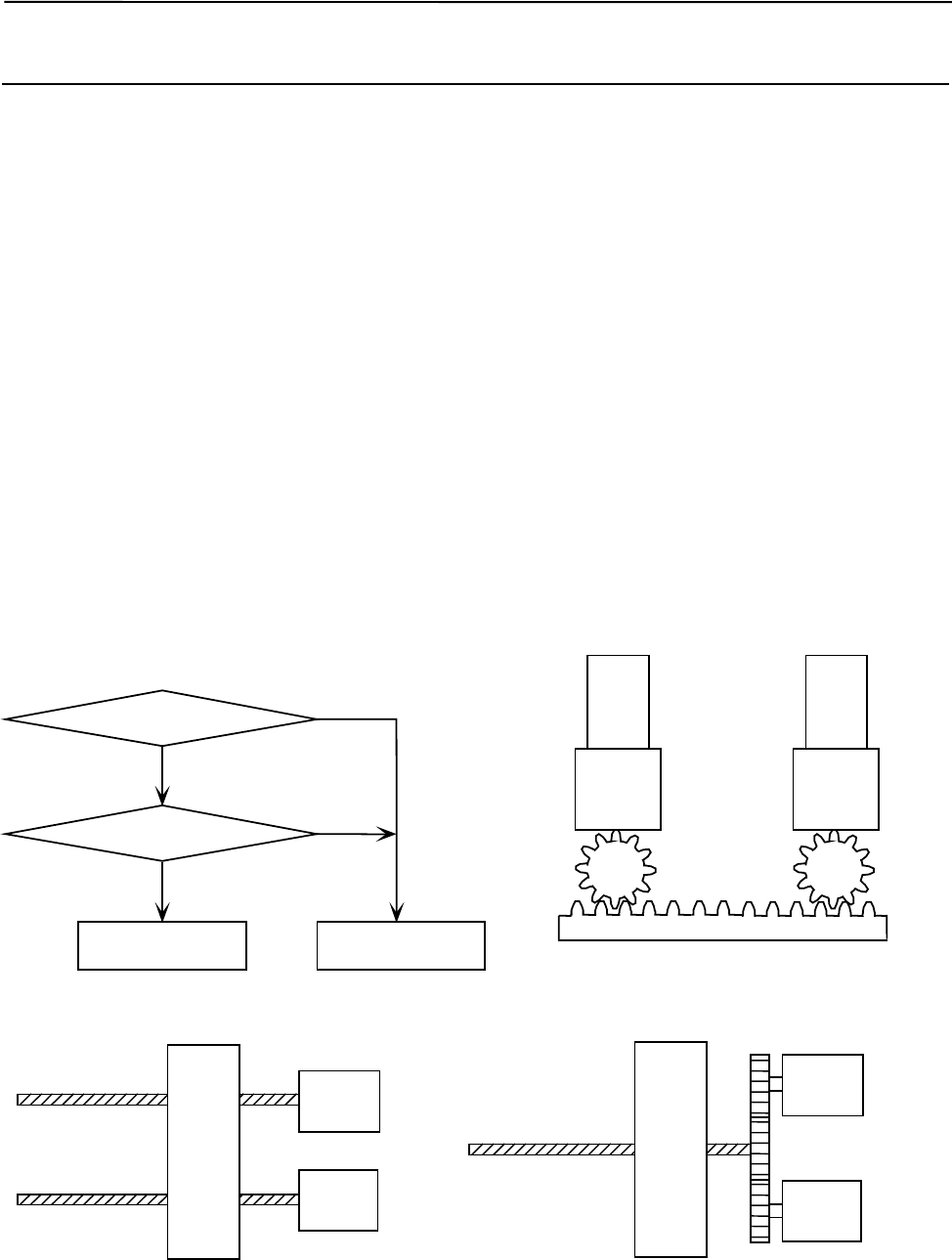

Flow of selection

Fig. 4.17.10 (a) Flow of selection Fig. 4.17.10 (c) Example of tandem control

(machine system supporting back-feed)

Sub-

motor

Main

motor

Sub-

motor

Main

motor

Fig. 4.17.10 (b) Example of synchronous control Fig. 4.17.10 (d) Example of tandem control

(machine system not supporting back-feed) (rigid machine system)
