4. SERVO FUNCTION DETAILS B-65150E/04

− 242 −

4.17 TANDEM CONTROL FUNCTION

(1) Overview

If a single motor is not capable of producing sufficient torque to drive a

large table, for example, tandem control allows two motors to produce

movement along one axis.

A motor of the same specification is used for both the main motor and

sub-motor.

Only the main motor is responsible for positioning. The sub-motor

only produces a torque. In this way, double the torque can be obtained

(load sharing mode).

By applying a preload torque to produce tension between the main

motor and sub-motor, the backlash between gears can be reduced

(anti-backlash mode).

Tandem control is used to run linked linear motors and motors with a

winding tandem (α300, α400, etc.).

(2) Applicable servo software series and editions

Series 9060/F(06) and subsequent editions (Series 15-B, 16-A, 18-A,

Power Mate)

Series 9080/A(01) and subsequent editions (Series 15-B, 16-C, 18-C)

Series 9090/C(03) and subsequent editions (Series 16i-A, 18i-A, Power

Mate i)

Series 90A0/A(01) and subsequent editions (Series 15i-A, 16i-A, 18i-

A, Power Mate i)

Main

motor

Reducer

Pinion

Reducer

Sub-

motor

Rack

Pinion

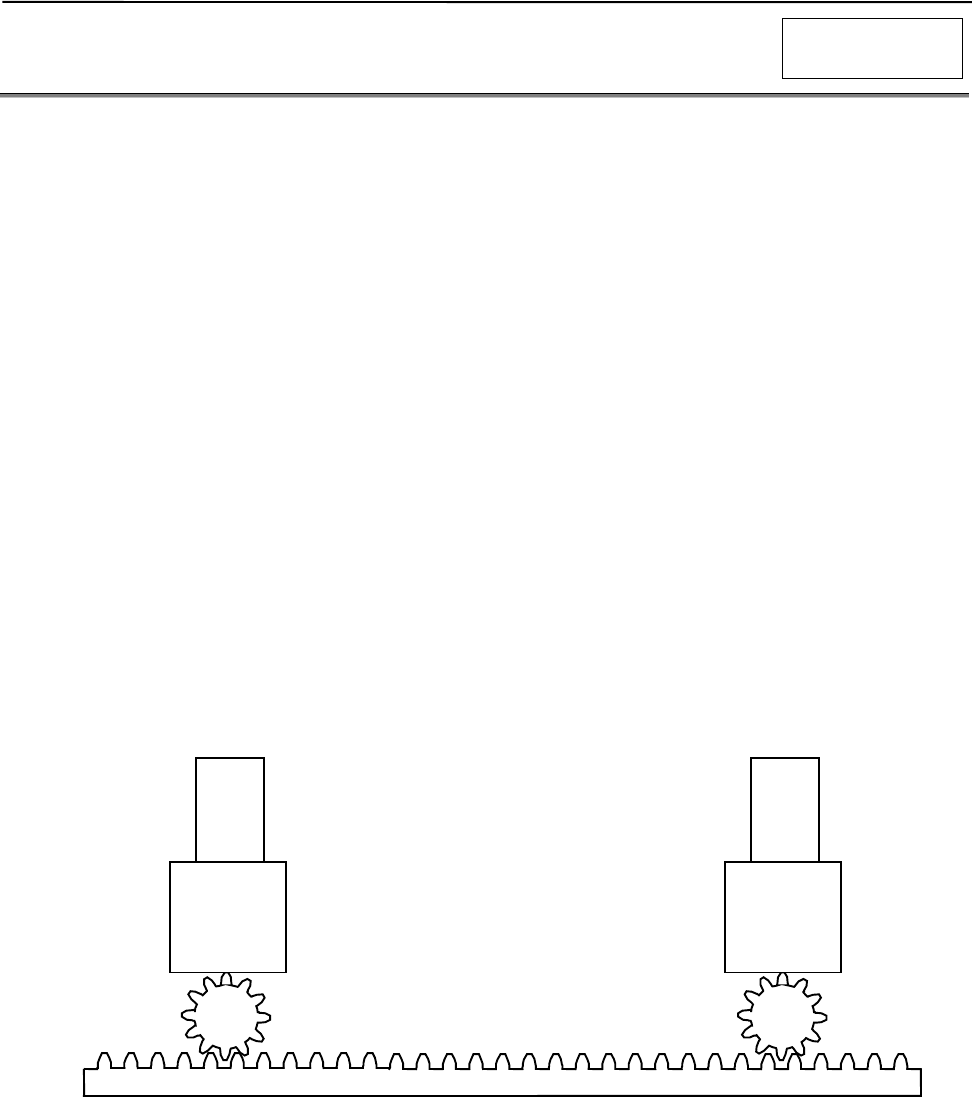

Fig. 4.17 (a) Example of tandem control application (1)

Optional function
