POWER MATE MODEL D/F Maintenance manual Page 142

Maintenance manual

Page of 420

/ 420

B–62835EN/01

2. HARDWARE

131

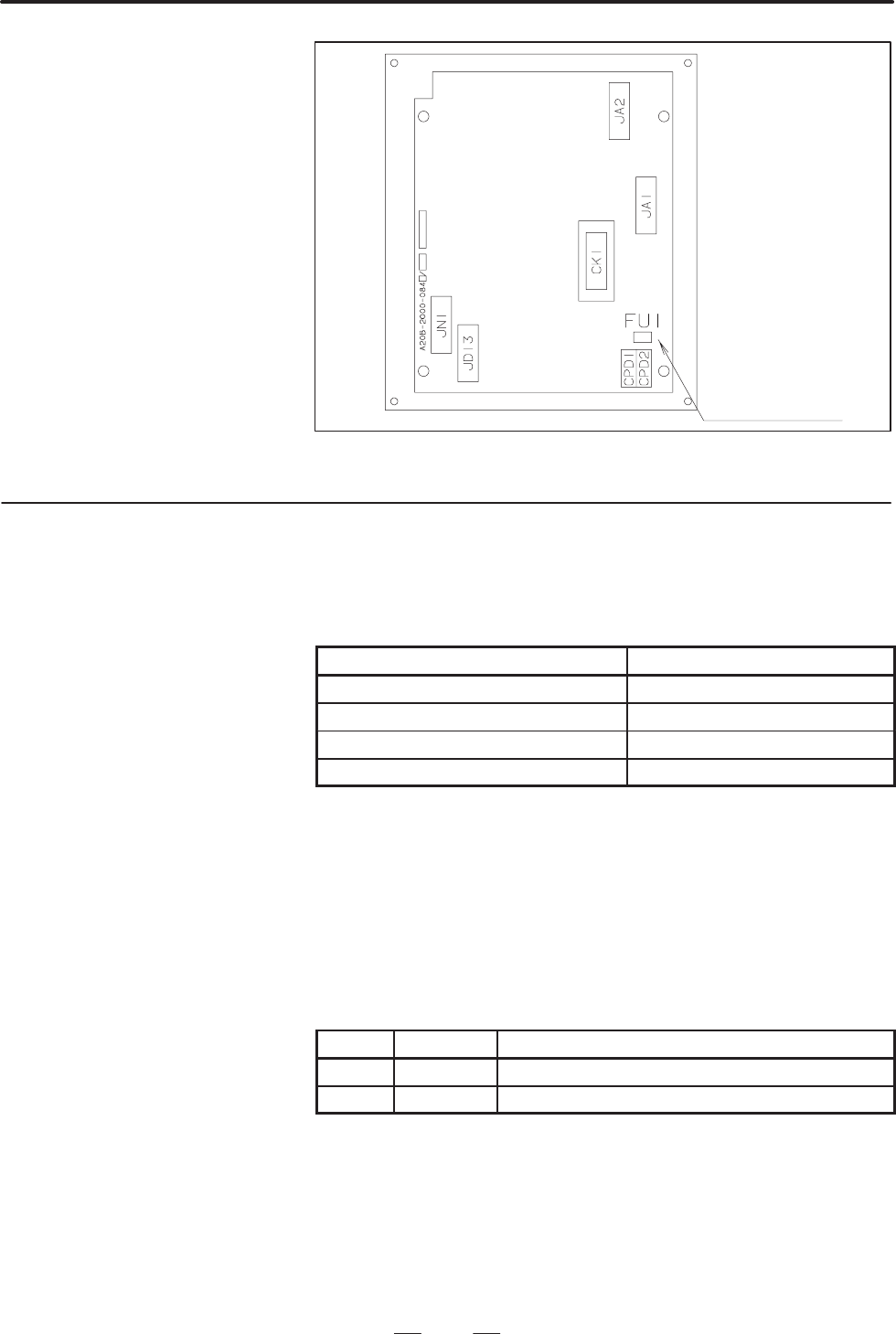

Fuse FU1 (3.2 A)

Fig.2.10.2(b) Location of separate MDI unit fuse

This section describes the replacement of the Power Mate–D external I/O

card fuses. The table below lists the names and drawing numbers of the

I/O cards.

 2.10.3(a) I/O card drawing numbers

Name

Drawing number

I/O card A DI: 48 points, DO: 32 points A16B-2201–0071

I/O card B DI: 96 points, DO: 64 points A16B-2201–0070

I/O card D DI: 48 points, DO: 32 points A16B-2202–0733

I/O card E DI: 96 points, DO: 64 points A16B-2202–0732

The I/O card contains a +24 V power input fuse, FU1, and +5 V power

output fuse, FU2. If +5 V is not output, fuse FU1 or FU2 may have blown.

In such a case, remove the fuses from their sockets, then check their

continuity using a multimeter (or visually check whether they have

blown). If a fuse has blown, investigate the cause, take appropriate action,

then replace the fuse. The capacity, part number, and location of the fuses

are as follows:

 2.10.3(b) Capacity and part number of I/O card fuses

Name

Capacity Ordering specification

FU1 3.2A A60L-0001-0175#3.2A

FU2 5.0A A60L-0001-0290#LM50

2.10.3

The I/O Card Fuses
