3. INPUT AND OUTPUT OF DATA

B–62835EN/01

154

3. When the controller tape does not have a program number or a program

number is to be changed, enter a desired program number. (When the

controller tape has a program number and a program number is not

changed, this operation is not necessary.)

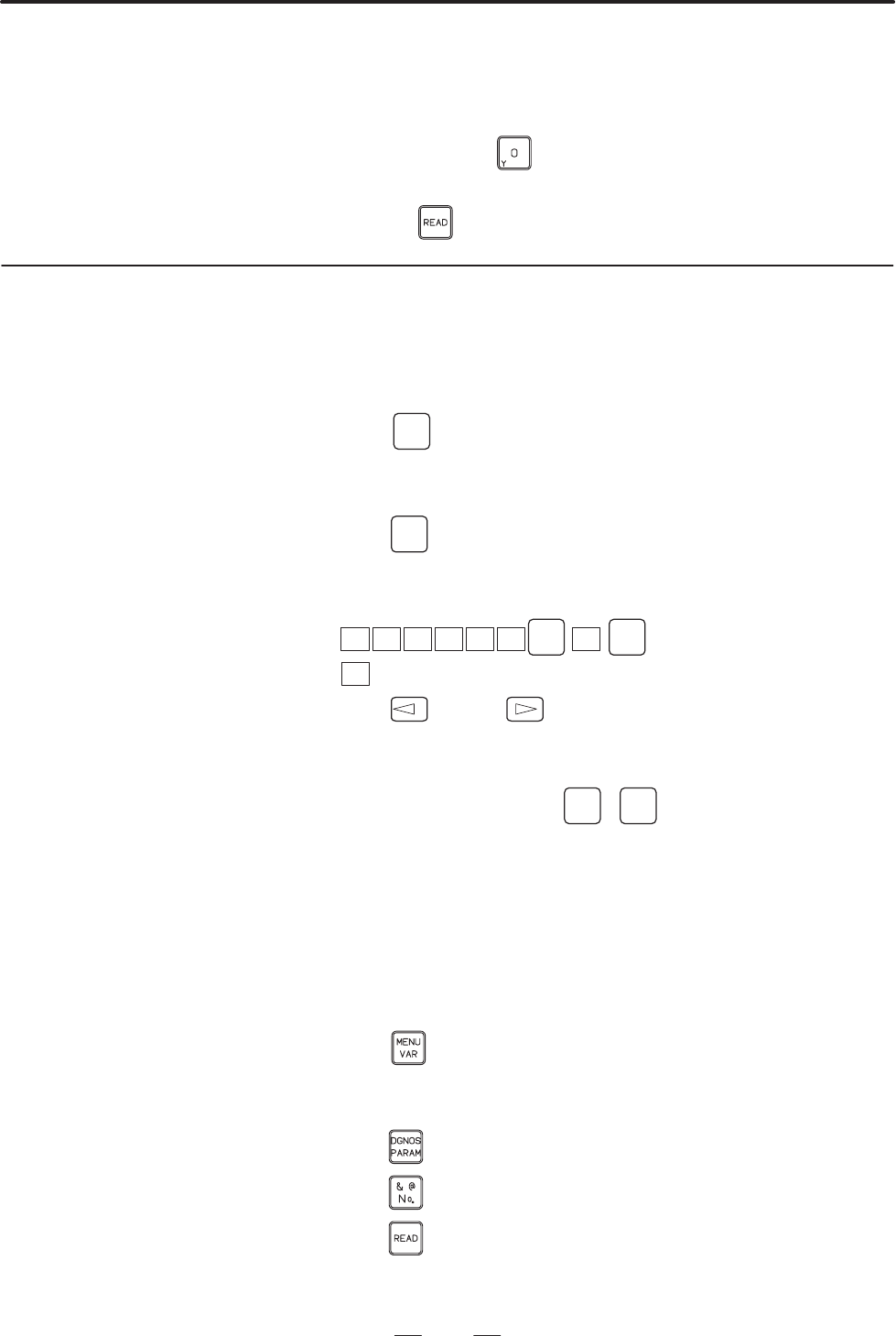

i) Key in address

ii) Key in a desired program number.

4. Press the

key.

1. Set the emergency stop state.

2. Press

OFFSET

SETTING

key and soft key [SETTING] to select the SETTING

screen.

3. Confirm that PARAMETER WRITE=1.

4. Press

SYSTEM

key and soft key [PMC].

5. Press soft key [PMCPRM] and soft key [KEEPRL].

6. Set the cursor to K17 and set bit 1 to 1.

× × ×× × ×

INPUT

× means the setting value which is before input.

7. Press

key and key.

8. Press soft key [I/O] and set the parameters required for I/O.

Item selection cursor displays the next item after an item is set.

9. In CHANNEL item , press

INPUT

to select channel 1.

10.In DEVICE item, press [FDCAS] key to select the floppy cassette.

11.In FUNCTION item, press soft key [READ] to input data. In DATA

KIND item, not set the data.

12.Press soft key [EXEC] and the PMC ladder are started to be input.

13.After data has been read, turn off power and turn it on.

1. Set the emergency stop state.

2. Press

key several times and soft key to select the SETTING

screen.

3. Confirm that PWE=1.

4. Press

key several times and set diagnosis screen (@).

5. Press

then set the file number.

6. Press

and the ladder programs are started to be input.

7. After data has been read, turn off power and turn it on.

3.2.14

Inputting PMC Ladder

D Procedure (CRT/MDI)

D Procedure (DPL/MDI)
