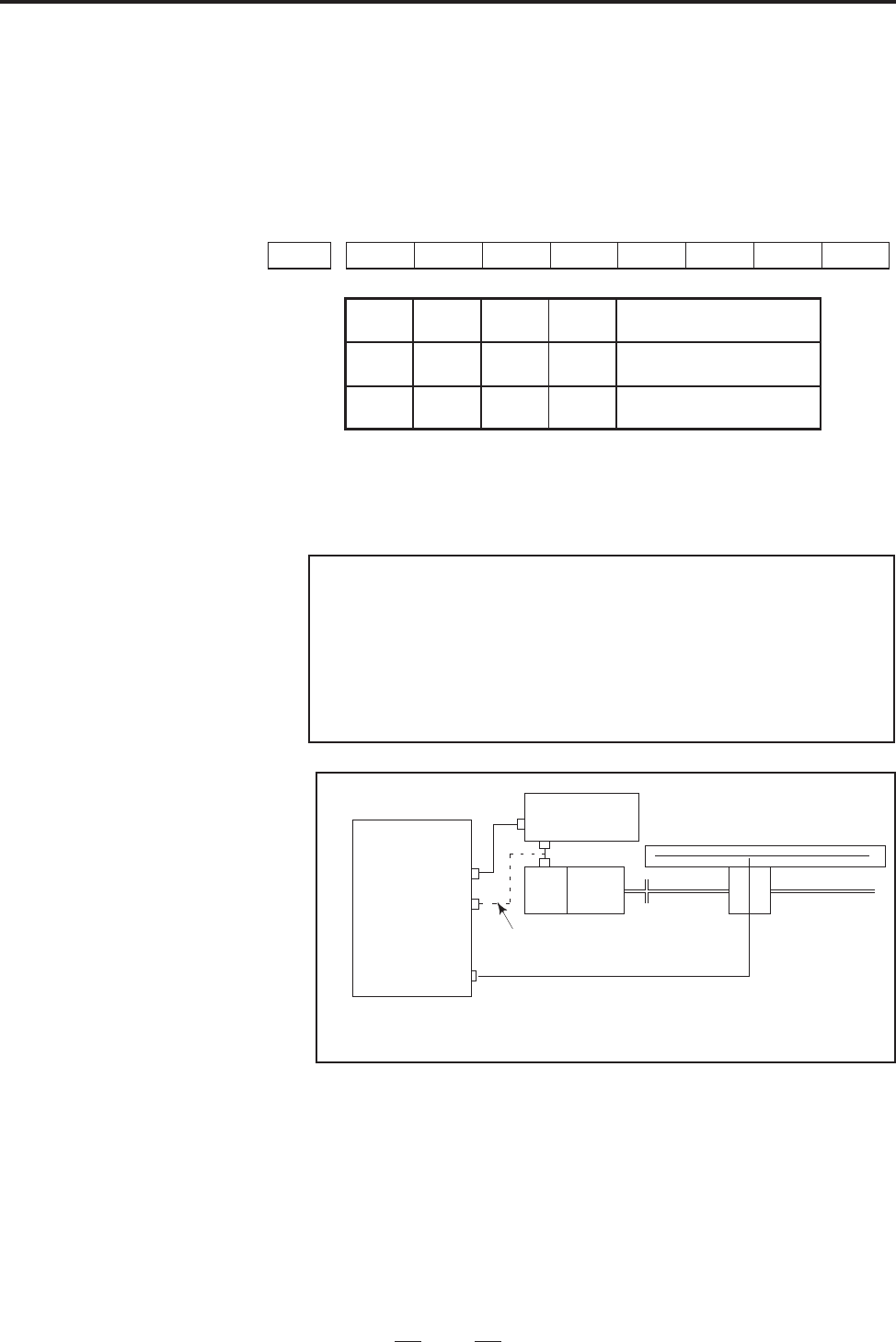

8. TROUBLESHOOTING

B–62835EN/01

314

Position detection signal line is disconnected or short–circuited.

Check the details using the Power Mate’s diagnostic fucntion.

1 – – 0 Built–in serial pulse coder

disconnection

1 – – 1 Separate type position

detector connection

1 – – 0 Pulse coder disconnec-

tion (software)

1Signal cable is disconnected or short–circuitted.

2Serial pulse coder or position detector is faulty.Refer to Note 1

3Base printed board or servo module is faulty. (See Sec.8.13.)

Refer to Caution 2

CAUTION

1After the pulse coder is replaced, reference position or

machine’s standard position is different from former one.

Adjust and set it correctly.

2When the base printed board is replaced, all the data stored

in memory is lost. Set NC data again, referring to chapter

3 ” Data input/output” .

Linear scale

Power Mate

JF2x

NOTE)In the case of the type A interface, the position detection signal line is

connected to the Power Mate, while in the case of the type B interface,

it is connected to the servo amplifier.

Servoamplifier

JFx

JVx

JSxB

JFx

Signal line for position detector

x is an axis number

8.23

ALARM 416

(DISCONNECTION

ALARM)

Point

Causes
