CPU error (illeagal interrupt) has generated.

1) Base printed board is faulty

An interrupt which will not occur during usual operation has

generated.

Peripheral circuit of the CPU may be abnormal. Change the base

printed board. If operation is performed normally by power off and

on, noise may be a cause. Refer to Subsec.2.2.3. Suppressing Noise.

2) Memory is faulty

Replace PCB including the memory. For location of memory see the

section of alarm 910 to 911.

3) Defective CPU module

Replace the CPU module. (Power Mate–D/B001, B520)

When replacing the CPU module, the memory module must be

removed then re–mounted. Observe the following precaution.

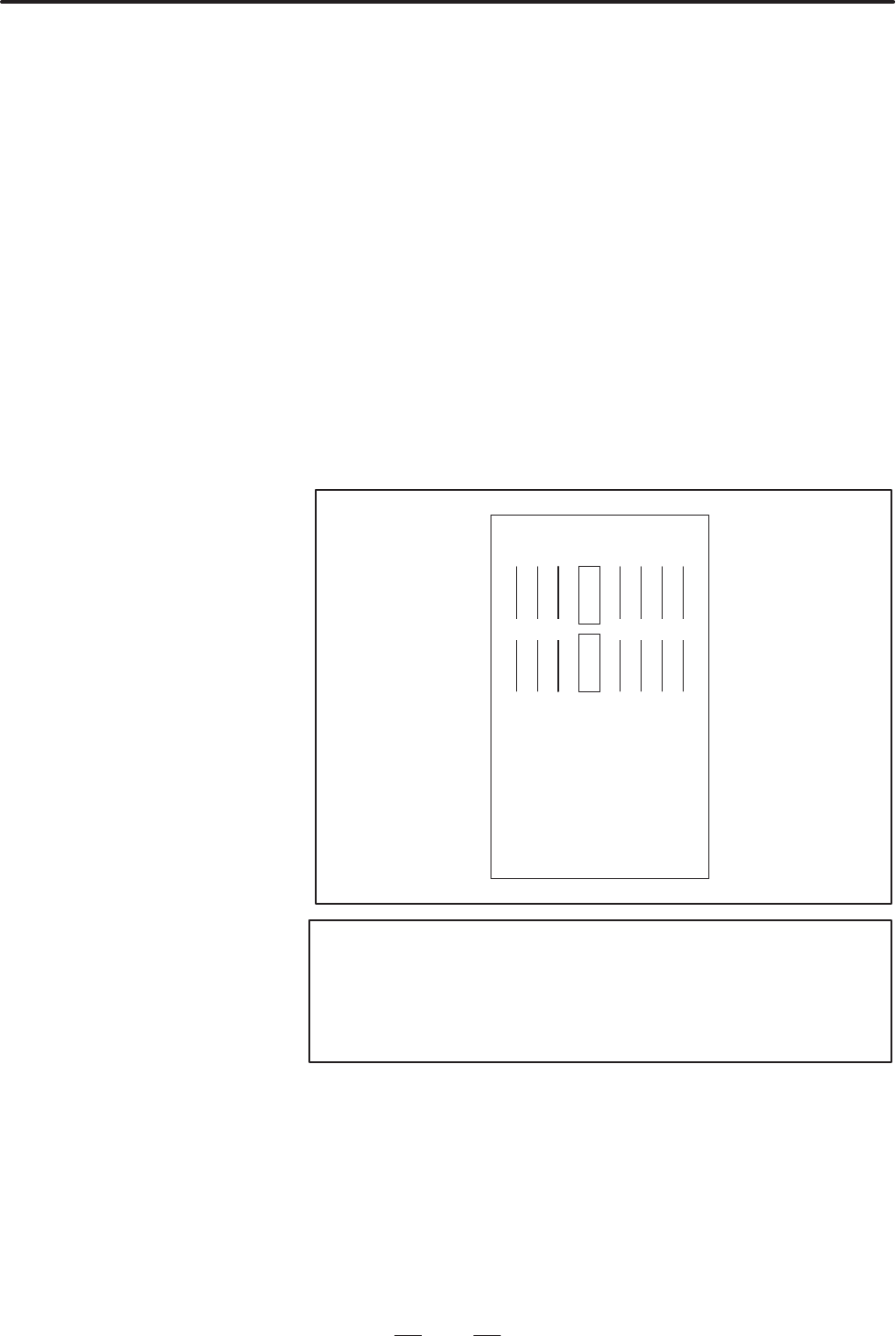

(1) (2)(3) (4) (5) (6) (7)

(3) CPU module

A20B–2901–0500

CAUTION

If the base printed–circuit board is replaced, or the memory

module is removed then remounted, all data in memory will

be lost. Set data again, referring to chapter 3 ” Data

input/output”.

8.33

ALARM 930

(CPU ERROR)

Causes and Remedies
