POWER MATE MODEL D/F Maintenance manual Page 364

Maintenance manual

Page of 420

/ 420

B–62835EN/01

10. TROUBLESHOOTING

(ANALOG INTERFACE SPINDLE)

353

(1) Remove PCB–1 on the spindle amplifier.

(2) Turn off power of main power supply of machine side and remove the

motor power line.

(3) Measure resistance across the following terminals of the transistor

module on the circuit board shown below with a tester.

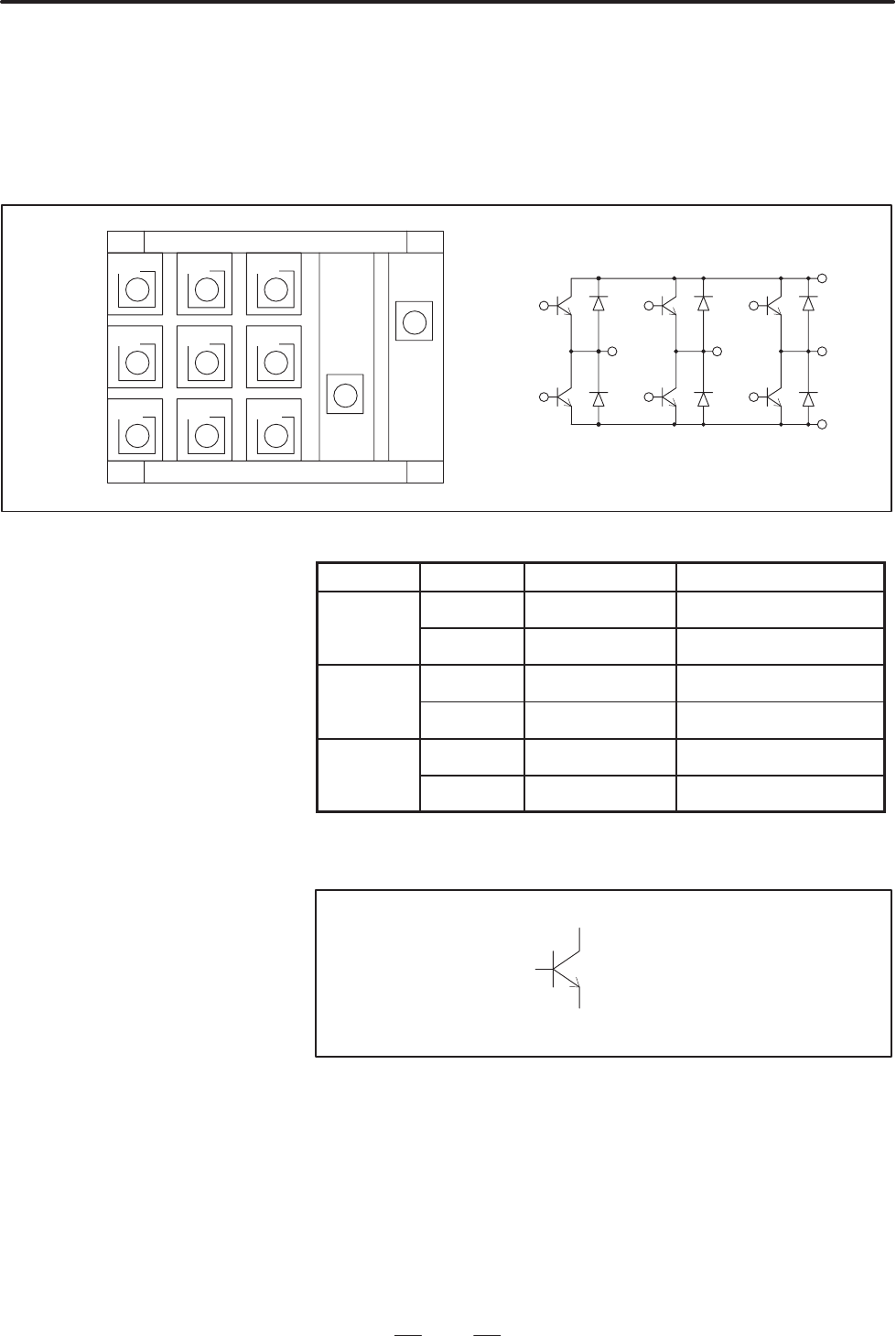

B1 B3 B5

B2 B4 B6

Uo Vo Wo

(–)

(+)

WoVo

(–)

(+)

Judgement (Range of tester : x10 ohm)

Terminal Tester Normal Abnormal

–

C : + 100 ohms Short, infinity

–

C : – Infinity Short, 100 ohms

–

C : + 100 ohms Short, infinity

–

C : – Infinity Short, 100 ohms

–

B : + 100 ohms Short, infinity

–

B : – 100 ohms Short, infinity

* When a transistor is defective, terminals across collector and

emitter, and across collector and base are short–circuited.

Collector (C)

Base (B)

Emittor (E)

10.10

CONFIRMATION OF

TRANSISTOR

MODULE
