8. TROUBLESHOOTING

311

Power to the servo converter is not supplied.Power off

ExplanationMeaning

Display

Internal MMC (electro–magnetic contactor) is not

turned on.

NOT READY

Internal MMC is turned on and the motor

becomes ready.

READY

DC voltage for driving main circuit is considerabley

high.

Excessive

voltage alarm

+5V of control power is abnormally low.LV5V

Control power

low alarm

DC voltage for main circuit is extremely low.LVDC

DC link voltage

low alarm

Regenerative discharge energy in short time is

large or regenerative discharge circuit is faulty.

DCSW

Abnormal regen-

erative control cir-

cuit

Average regenerative discharge energy is large or

frequency of acc./dec. is large.

DCOH

Excessive regen-

erative discharge

Lights when thermostat in the servo amplifier func-

tions.

Servo amplifier

overheat

Contacts of electro–magnetic contactor is blown.MCC

Electro magnetic

contactor

Lights when a large current flows through the main

circuit of L axis.

HCL

L axis excess

current

Lights when a large current flows through the main

circuit of M axis.

HCM

M axis excess

current

Lights when a large current flows throught the main

circuit of L axis and M axis.

HCLM

Excess current

NOTE

1st axis is L, 2nd axis is M.

When the electro–magnetic contactor is turned on in the servo amp. or DC

voltage for the main circuit becomes low, this LED is lit.

Causes are;

1) Input voltage is insufficient.

2) Contacts of electro–magnetic contactor in servo amp. is poor.

3) Power circuit in servo amp. is abnormal.

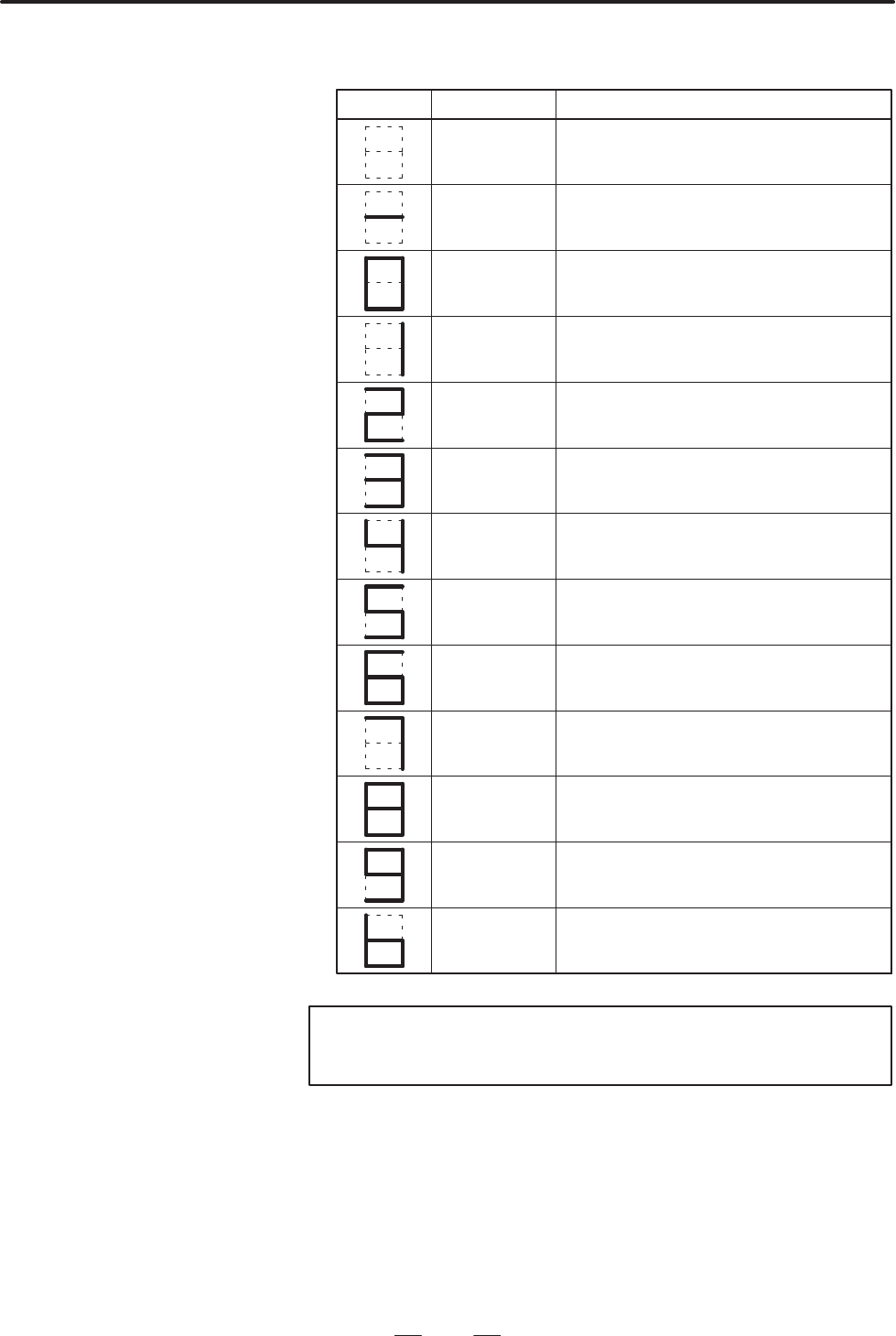

D LED display

D LVDC alarm
