POWER MATE MODEL D/F Maintenance manual Page 157

Maintenance manual
3. INPUT AND OUTPUT OF DATA
B–62835EN/01
146

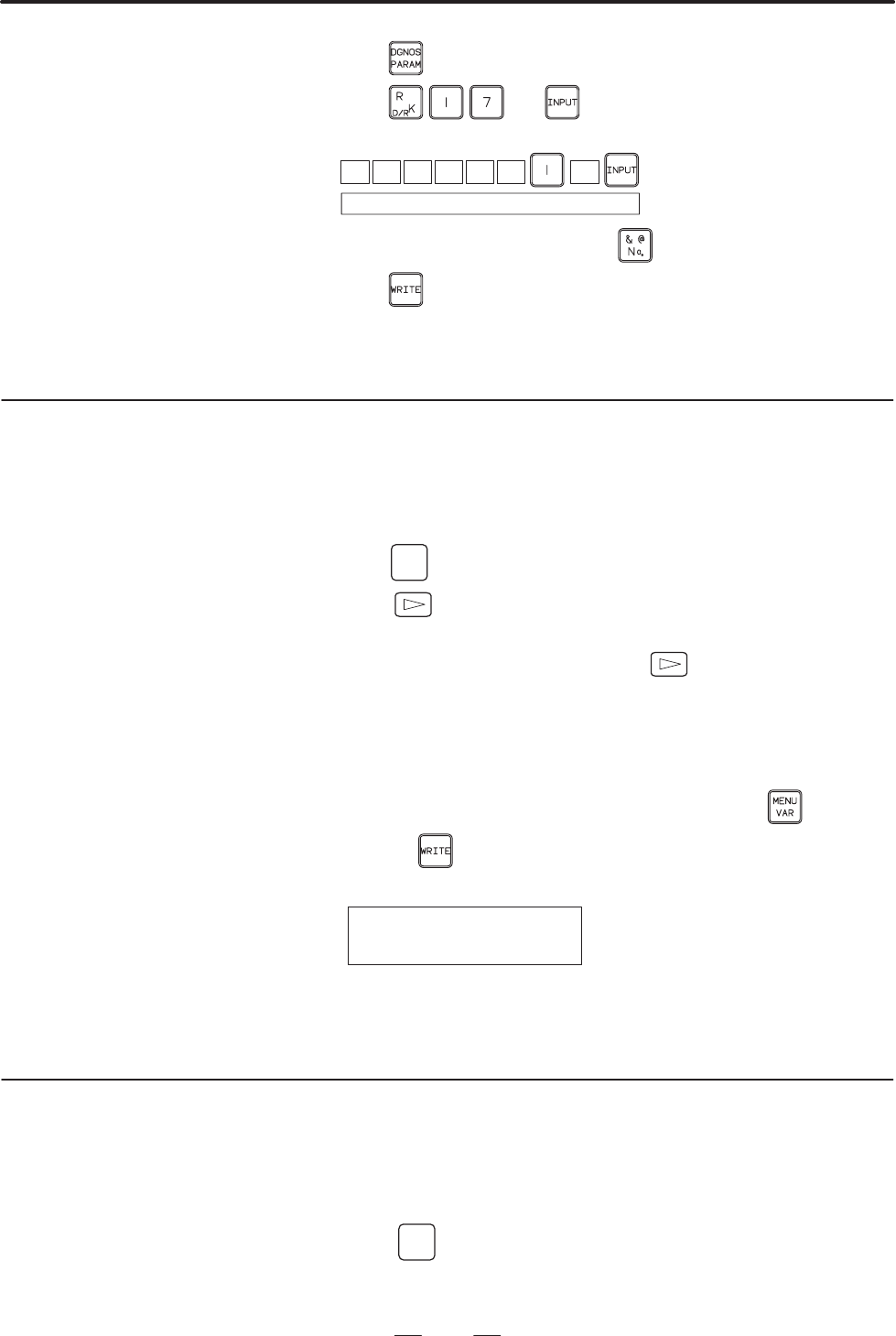

4. Press key several time to select diagnosis screen.
5. Press
and key.
6. Set the first bit to 1.
× × ×× × × ×
Where, mark x is a former value
7. Display the PMC parameter press key then set file number.
8. Press
. Then PMC parameters are started to be output.
9. After the PMC parameters have been output, set PWE to 0.
10.Reset Power Mate to release alarm 100.
1. Select EDIT mode.
2. Press
OFFSET
SETTING
key.
3. Press
key and soft key [MACRO] to select custom macro
variable screen.
4. Press soft key [(OPRT)] and then key
.
5. Press soft key [PUNCH] and [EXEC], then custom macro variable
values are output.
1. Select EDIT mode.
2. Select the tool offset data display screen by pressing
key.
3. Press the
key.
4. While common variable is being output, the display appears as below.
>#0100
WRITE
5. In order to stop output of data from a tape before it has finished, turn
on external reset signal ERS (bit 7 of G008).
Once data output from a tape has been stopped, it cannot be restarted.
1. Select EDIT mode.
2. Press
OFFSET
SETTING
key and soft key [OFFSET] to display the tool
compensation amount screen.
3.2.4
Outputting Custom
Macro Variable Values
D Procedure (CRT/MDI)
D Procedure (DPL/MDI)
3.2.5
Outputting Tool
Compensation Amount
D Procedure (CRT/MDI)
