POWER MATE MODEL D/F Maintenance manual Page 328

Maintenance manual

Page of 420

/ 420

B–62835EN/01

8.TROUBLESHOOTING

317

Communication error has generated in serial spindle

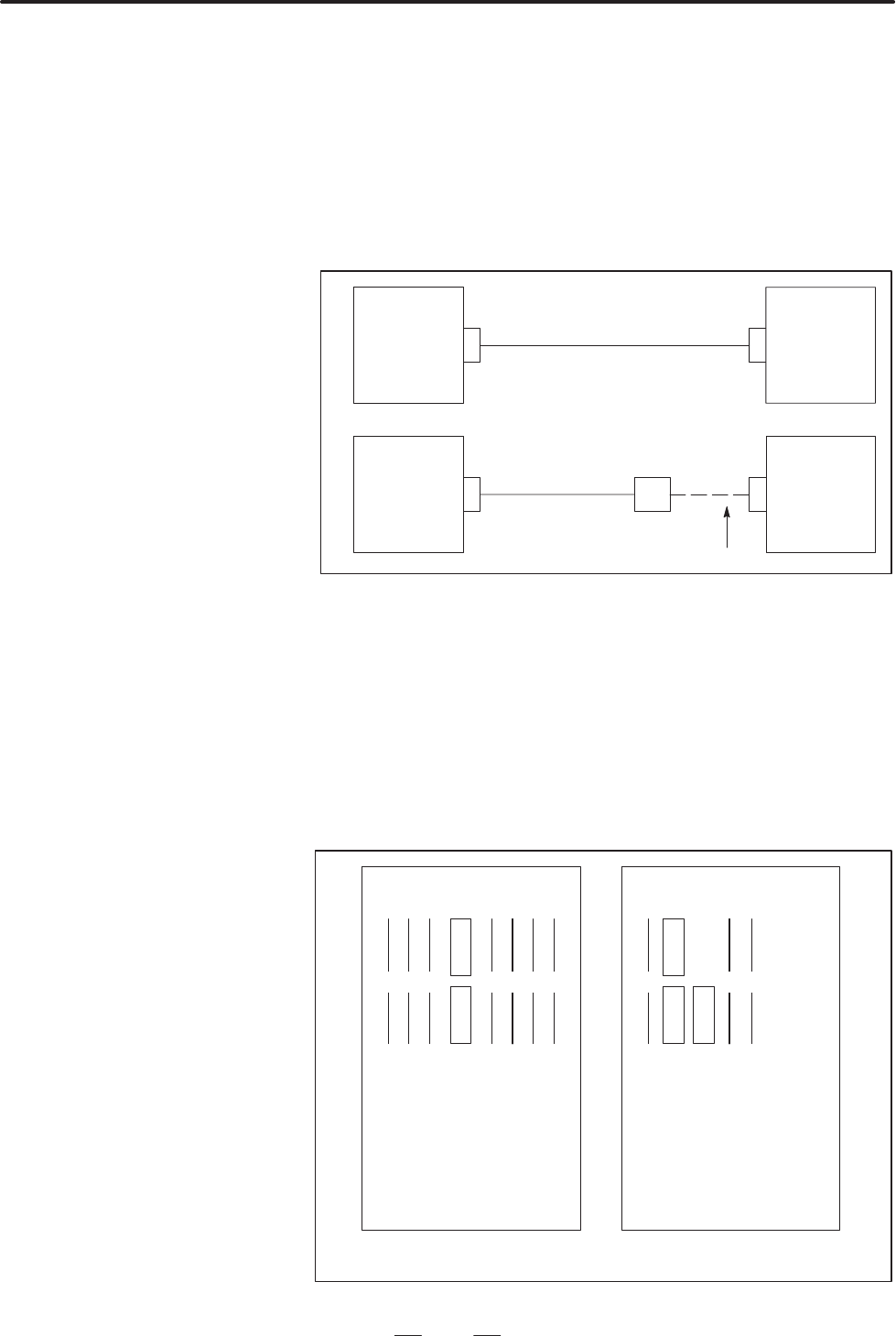

Improper connection between the control unit and the serial spindle. The

following reason is considered.

Optical I/O Link

adaptor

Optocal cable

α series

spindle

amplifier

Power Mate

Spindle

amplifier

JA11

D Spindle module is faulty. (Bold line in the figure below indicates

module mounting position.)

D The cable between the control unit and spindle amplifier is broken or

disconnected.

D A cable between the control unit and optical I/O link adapter is

disconnected or short–circuited.

D Optical I/O link adapter is faulty.

D Optical cable is disconnected.

D Serial spindle amplifier is faulty.

<Location of spindle module> Power Mate–D

(1)(2)(3) (4)(5) (6) (7) (1) (2) (3)

(2) Spindle module

A20B–2900–0850

(2) Memory module

A20B–2902–0221

to 0255

A02B–0166–B001

A02B–0166–B520

A02B–0166–B501, B502

A02B–0166–B531

8.26

ALARM 749

(SERIAL SPINDLE

COMMUNICATION

ERROR)

Causes and Remedies
