16. DIGITAL SERVO

837

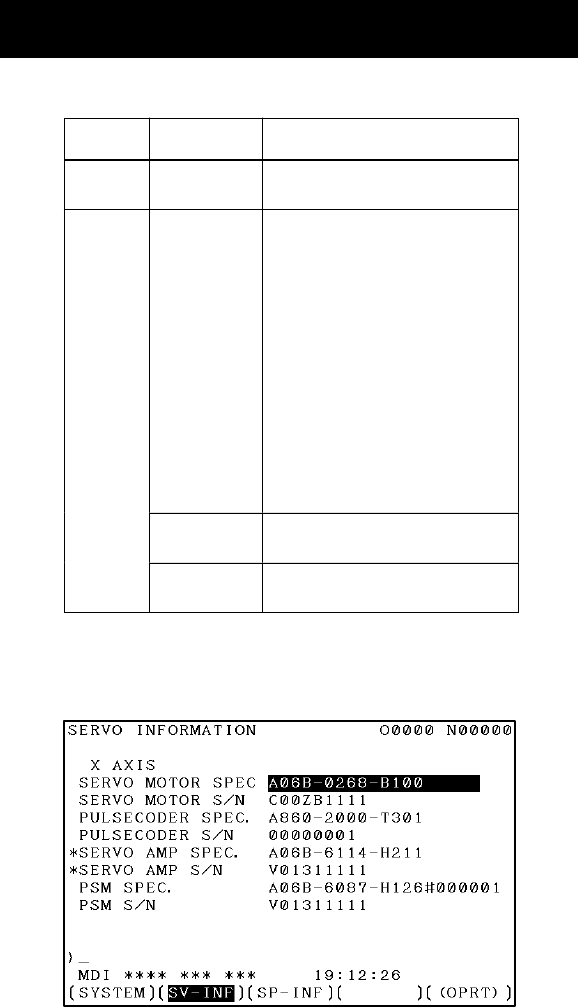

16.4.3 Screen operation

Mode Key operation Use

Viewing (*1) Page key Scrolls up or down on a screen–by–screen

basis.

Editing (*2)

Soft key

[INPUT]

[CANCEL]

[CHANGE]

[SAVE]

[RELOAD]

Replace the selected ID information at the

cursor position with the character string in

key–in buffer.

Deletes the character string in key–in buffer.

Transfers the selected ID information at the

cursor position that was sent by the servo,

to key–in buffer. Only the items preceded

by * (*3) are valid.

Saves the ID information that has been

changed on the servo information screen in

FROM.

Cancels the ID information that has been

changed on the servo information screen

and loads ID information from FROM.

Page key Scrolls up or down on a screen–by–screen

basis.

Cursor key Scrolls up or down the selection of ID in-

formation.

*1 Viewing mode: when PRM13112#0 = 0

*2 Editing mode: when PRM13112#0 = 1

*3 Servo information is stored in FROM (in the MINFO file). If there is a

difference between the servo information in FROM and the actual servo

information, the corresponding items are preceded by *.
