19.4 LED Indication and Maintenance Operation of

the Stand–Alone Type Unit

934

19.4 LED Indication and Maintenance Operation of

the Stand–Alone Type Unit

D Overview

FANUC Series 16i/18i/21i of stand–alone type is equipped with a

7–segment LED, rotary switch, and push switch.

When no MDI is included in the system configuration or when the MDI

becomes defective and cannot be used, battery backed–up data can be

saved and restored by using the rotary switch and push switch.

When the MDI can be used, use these switches for maintenance by system

monitor of the boot function.

D Layout of the 7–segment LED and switches

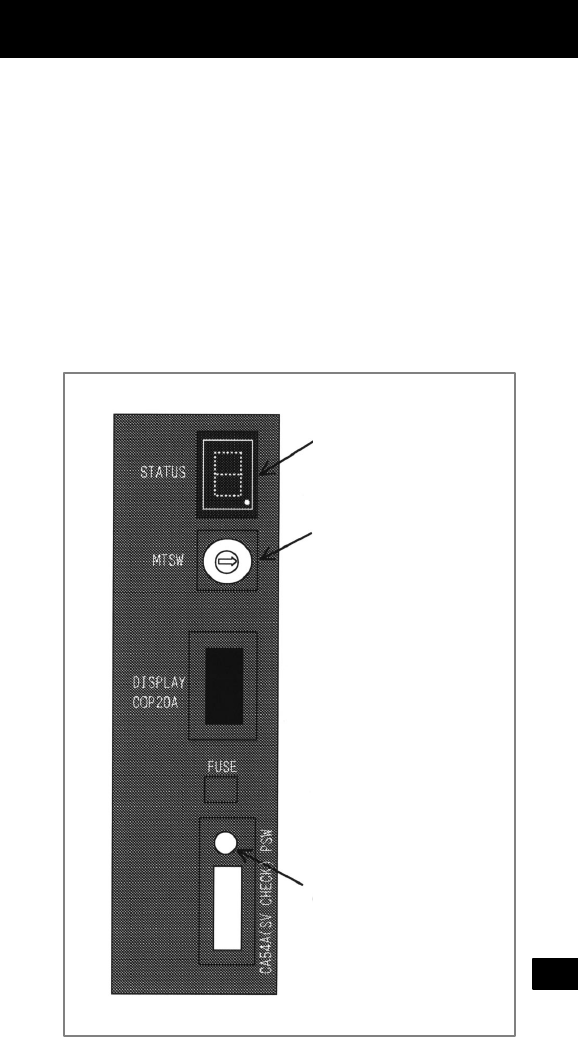

The 7–segment LED, rotary switch, and push switch are located as shown

below.

7–segment LED

(STATUS)

Rotary switch

(MTSW)

Push switch

(PSW)
