19. MAINTENANCE FUNCTION

949

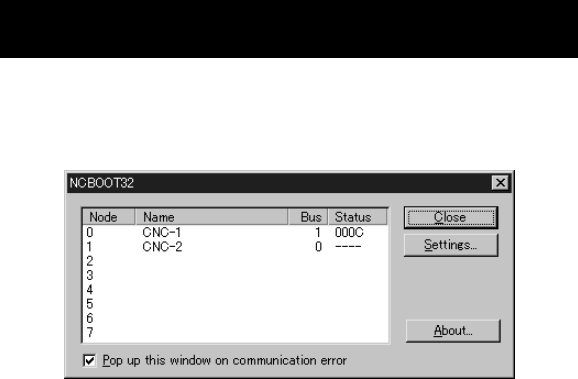

19.5.4.2 Status screen (160i/180i/210i)

To open the status screen, double–click the icon in the system tray.

Alternatively, in the menu popped up by right–clicking, click OPEN.

Node: Node number

Name: Node name. (Define the node name in advance by using the

device manager in Windows 95/98 or the HSSB applet on the

control panel in Windows NT.)

Bus: Hardware communication status (0: Communication error,

1: Communication established)

Status: Status (in hexadecimal)

Bit 1: Rotary switch position 1

Bit 2: End of boot processing

Bit 3: End of IPL processing

Bit 4: Rotary switch position 2

Bit 8: CNC system alarm

Pop up this window on communication error: By checking this item,

this screen (status screen) is opened automatically when a

communication error occurs.

Clicking the [Close] button closes the screen.

Clicking the [Setting...] button opens the option setting screen.

Clicking the [About...] button opens the version information screen.
