PROGRAMMING

B–63444EN/01

12. PROGRAM CONFIGURATION

This section describes program components other than program sections.

See Section 12.2 for a program section.

% TITLE ;

O0001 ;

M30 ;

(COMMENT)

Tape start

Program section

Leader section

Program start

Comment section

Tape end

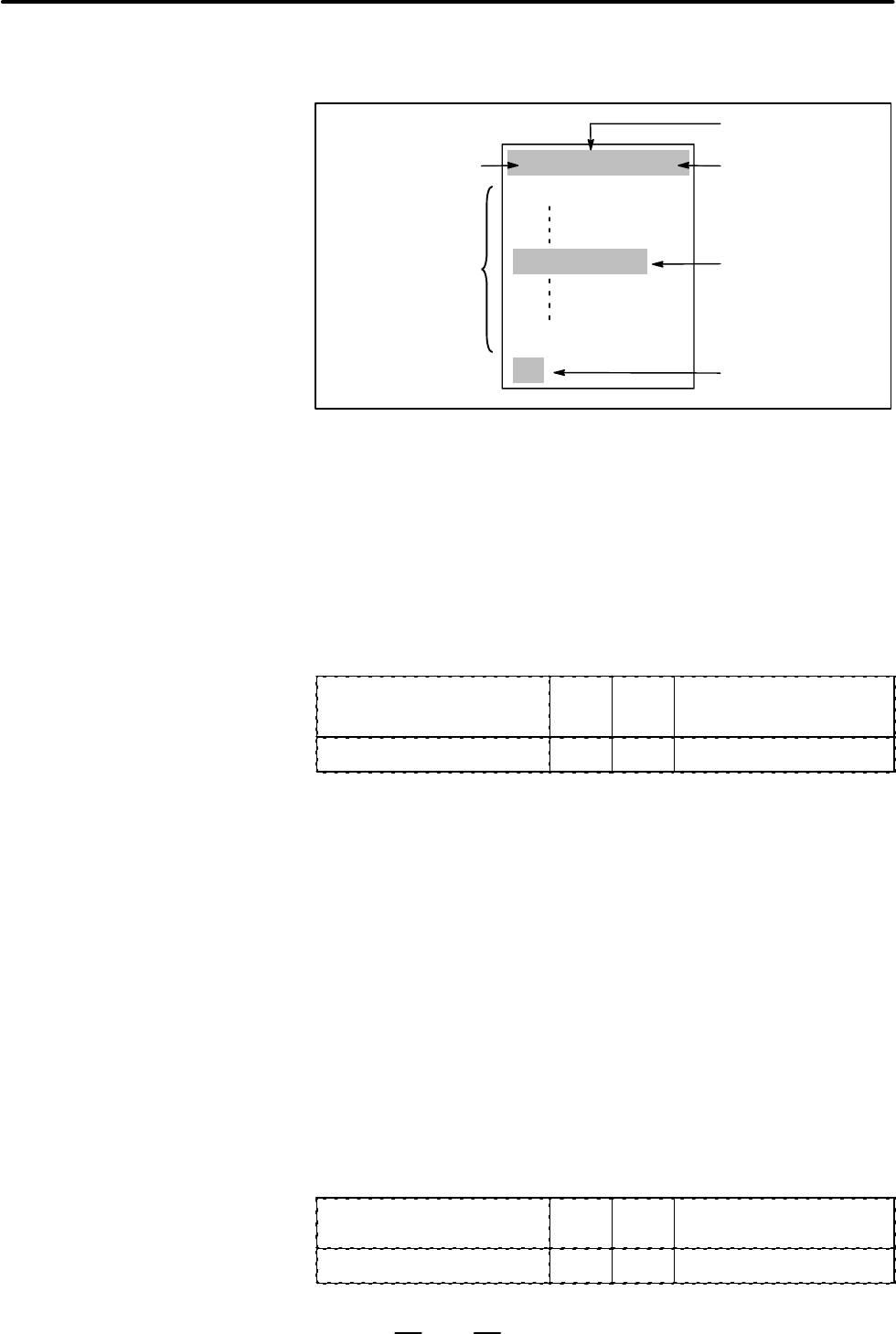

Fig.12.1 (a) Program configuration

The tape start indicates the start of a file that contains NC programs.

The mark is not required when programs are entered using ordinary

personal computers. The mark is not displayed on the CRT display screen.

However, if the file is output,the mark is automatically output at the start

of the file.

Table 12.1 (a) Code of a tape start

Name

ISO

code

EIA

code

Notation in this manual

Tape start % ER %

Data entered before the programs in a file constitutes a leader section.

When machine operation is started, the label skip state is usually set by

turning on the power or resetting the system. In the label skip state, all

information is ignored until the first end–of–block code is read. When a

file is read into the controller from an I/O device, leader sections are

skipped by the label skip function.

A leader section generally contains information such as a file header.

When a leader section is skipped, even a TV parity check is not made. So

a leader section can contain any codes except the EOB code.

The program start code is to be entered immediately after a leader section,

that is, immediately before a program section.

This code indicates the start of a program, and is always required to

disable the label skip function.

With ordinary personal computers, this code can be entered by pressing

the return key.

Table 12.1 (b) Code of a program start

Name

ISO

code

EIA

code

Notation in this manual

Program start LF CR ;

12.1

PROGRAM

COMPONENTS

OTHER THAN

PROGRAM

SECTIONS

Explanations

D Tape start

D Leader section

D Program start
