FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCYLE AND

MULTIPLE REPETITIVE CYCLE

The following program generates the cutting path shown in Fig.

13.2.5. Chip breaking is possible in this cycle as shown below. If X

(U) and P are omitted, operation only in the Z axis results, to be

used for drilling.

G74R (e) ;

G74X(U)_ Z(W)_ P(∆i) Q(∆k) R(∆d) F (f ) ;

e :Return amount

This designation is modal and is not changed until the other

value is designated. Also this value can be specified by the

parameter No. 5139, and the parameter is changed by the

program command.

X : X component of point B

U: Incremental amount from A to B

Z : Z component of point C

W: Increment amount from A to C

∆i :Movement amount in X direction (without sign)

∆k: Depth of cut in Z direction (without sign)

∆d :Relief amount of the tool at the cutting bottom. The sign

of ∆d is always plus (+). However, if address X (U) and ∆i

are omitted, the relief direction can be specified by the

desired sign.

f : Feed rate

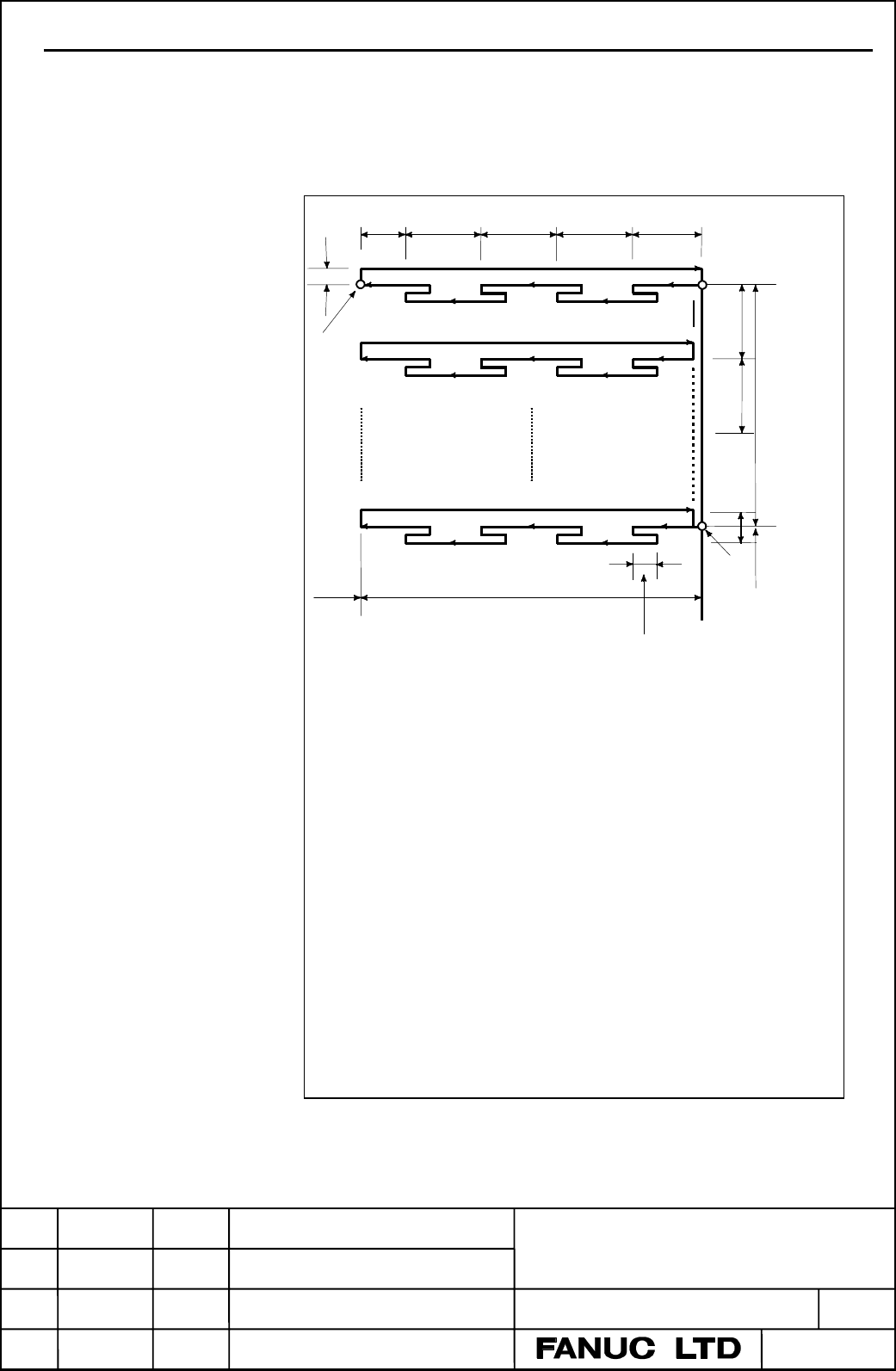

Fig. 13.2.5(a) Cutting Path in End Face Peek Drilling Cycle

13.2.5

End Face Peck Drilling

Cycle (G74)

U/2

∆

∆i'

∆k ' ∆k ∆k ∆k

∆k

(R)

(

)

(R)

(F)

(F) (F) (F)

∆i

(R)

<∆

≤∆

<∆

≤∆

(R)...Rapid traverse

(F)...Cutting feed
