FANUC POWER MATE 0 Operators manual Page 269

Operators manual

Page of 492

/ 492

OPERATION

B–63444EN/01

5. TEST OPERATION

257

Pressing the single block switch starts the single block mode. When the

cycle start button is pressed in the single block mode, the tool stops after

a single block in the program is executed. Check the program in the single

block mode by executing the program block by block.

Stop

Workpiece

Cycle start Cycle start

Cycle start

Tool

Stop

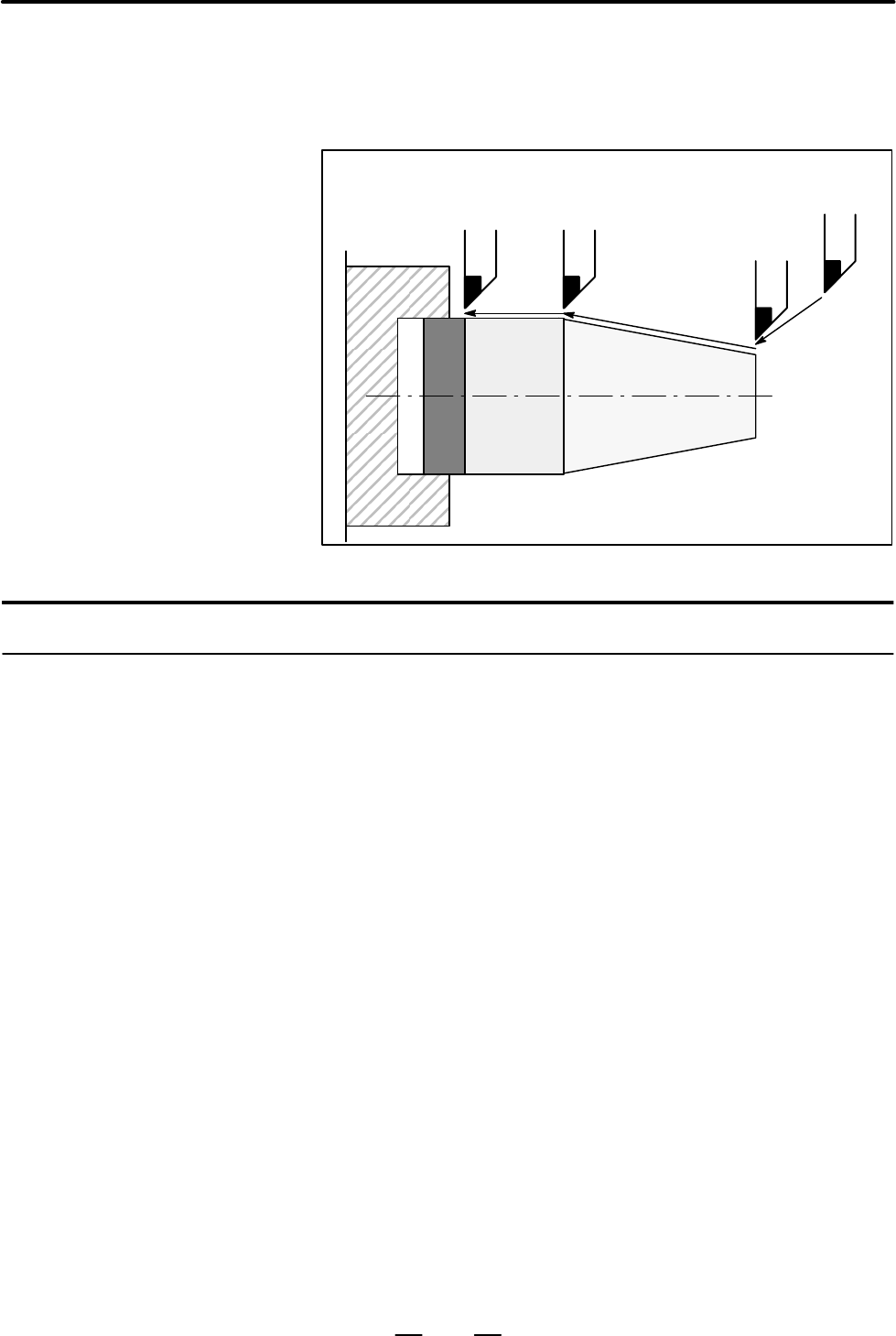

Fig.5.5 (a) Single block

Procedure for Single Block

1 Press the single block switch on the machine operator’s panel. The

execution of the program is stopped after the current block is

executed.

2 Press the cycle start button to execute the next block. The tool stops

after the block is executed.

Refer to the appropriate manual provided by the machine tool builder

for single block execution.

If G28 is issued, the single block function is effective at the intermediate

point.

Single block stop is not performed in a block containing M98P_;. M99;

or G65.

However, single block stop is even performed in a block with M98P_ or

M99 command, if the block contains an address other than O, N or P.

5.5

SINGLE BLOCK

Procedure

Explanation

D Reference position

return and single block

D Subprogram call and

single block
