FANUC POWER MATE 0 Operators manual Page 93

Operators manual

Page of 492

/ 492

PROGRAMMING

B–63444EN/01

9. SPINDLE SPEED FUNCTION (S FUNCTION)

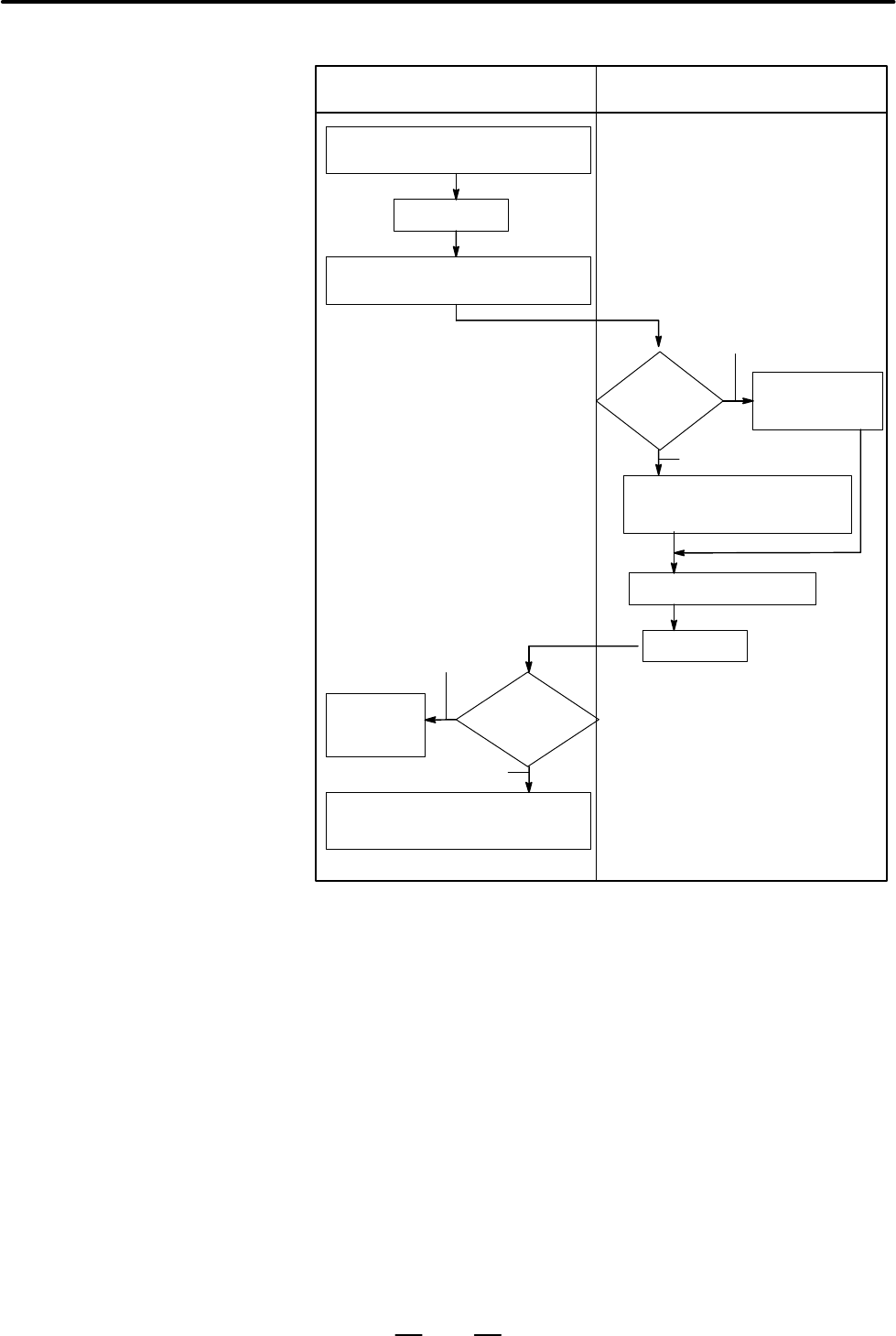

G96 mode G97 mode

Specify the surface speed in m/min

(or feet/min)

G97 command

Store the surface speed in m/min

(or feet/min)

Command for

the spindle

speed

Specified

The specified

spindle speed

(rpm) is used

Not specified

The surface speed (m/min or

feet/min) is converted to the

spindle speed (rpm)

Commands other than G96

G96 command

The specified

surface

speed is used

Command

for the surface

speed

The stored surface speed (m/min or

feet/min) is used. If no surface speed is

stored, 0 is assumed.

Specified

Not specified

The constant surface speed control is also effective during threading.

Accordingly, it is recommended that the constant surface speed control

be invalidated with G97 command before starting the scroll threading and

taper threading, because the response problem in the servo system may

not be considered when the spindle speed changes.

D Surface speed specified

in the G96 mode

Restrictions

D Constant surface speed

control for threading
