9. EDITING PROGRAMS

293

EDITING PROGRAMS

This chapter describes how to edit programs registered in the controller.

Editing includes the insertion, modification, deletion, and replacement of

words. Editing also includes deletion of the entire program and automatic

insertion of sequence numbers. This chapter also describes program

number search, sequence number search, word search, and address

search, which are performed before editing the program.

1) Program number search: See Section 9.3.

2) Sequence number search: See Section 9.4.

3) Word search: See Section 9.1.1.

4) Address search: See Section 9.1.1.

1) Inserting, altering, and deleting a word: See Sections 9.1.3 to 9.1.5.

2) Deleting blocks: See Sections 9.2.

3) Deleting programs: See section 9.5.

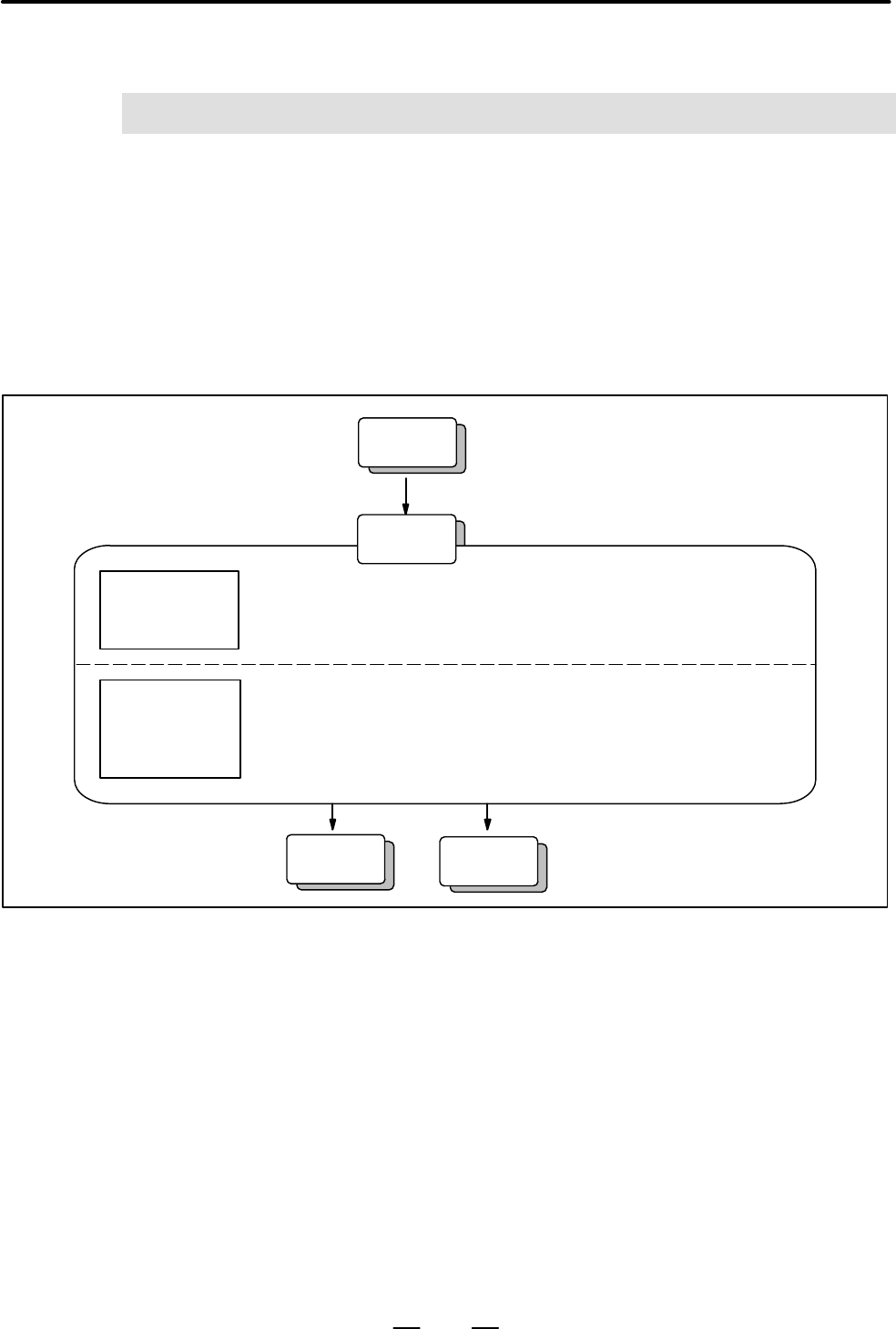

Search for part

of program to be

edited

Inserting, altering,

and deleting pro-

grams

Registration

Editing

Output

Execution

General
