FANUC POWER MATE 0 Operators manual Page 459

Operators manual

Page of 492

/ 492

B-63444EN/01-3

10 / 28

EDIT

DATE DESIG. DESCRIPTION

FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCLE AND

MULTIPLE REPETITIVE CYCLE

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

NOTE

Since data values of X (U), Z (W) and R during canned cycle are

modal, if X (U), Z (W), or R is not newly commanded, the previously

specified data is effective. Thus, when the Z axis movement amount

does not vary as in the example below, a canned cycle can be

repeated only by specifying the movement commands for the X-axis.

However, these data are cleared, if a one-shot G code expect for G04

(dwell) or a G code in the group 01 except for G90, G92, G94 is

commanded.

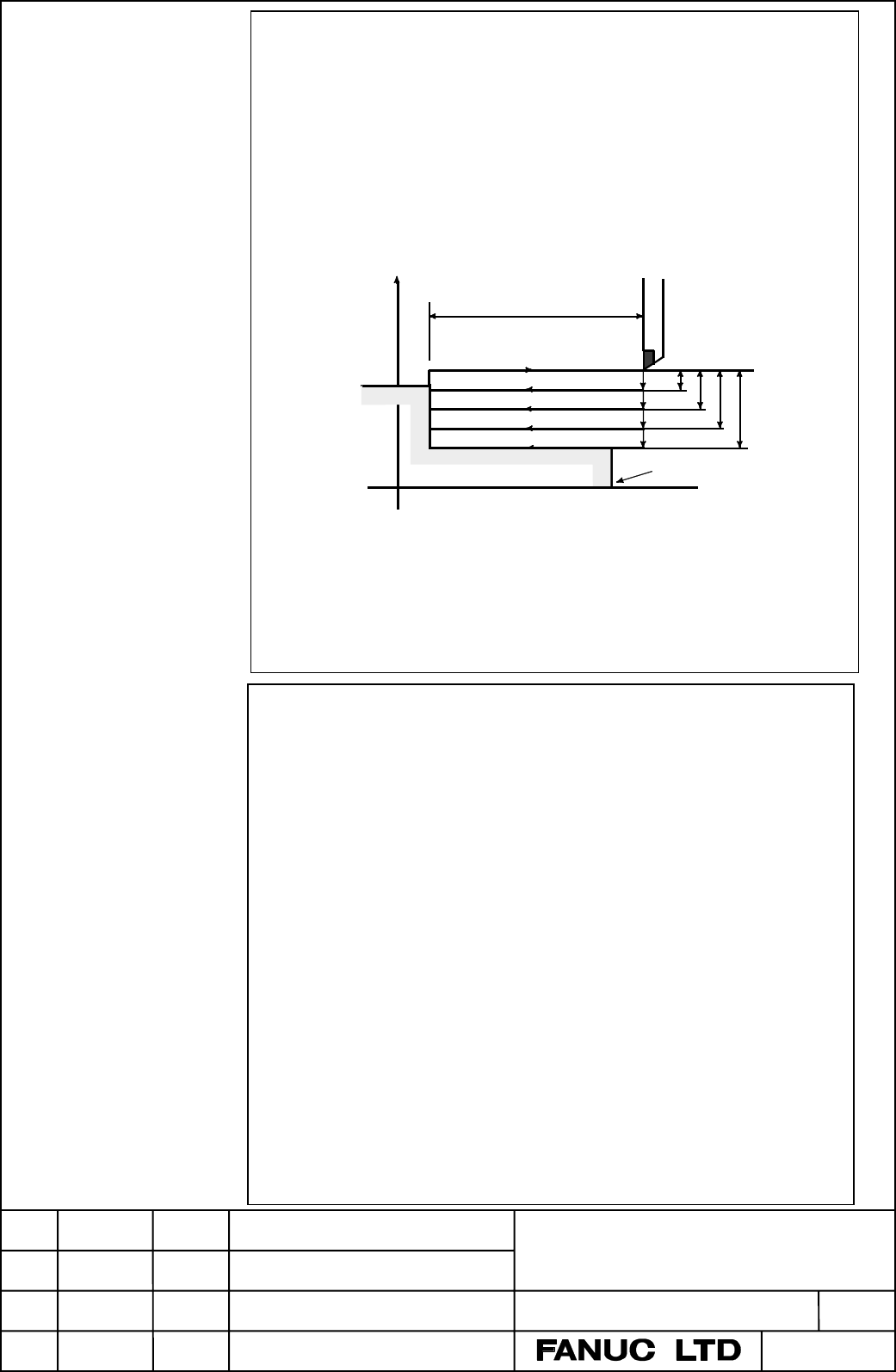

The cycle in the above figure is executed by the following program.

N030 G90 U-8.0 W-66.0 F0.4 ;

N031 U-16.0 ;

N032 U-24.0 ;

N033 U-32.0 ;

Work piece

X Axis

Z Axis

NOTE

The following two applications can be performed.

1. If an EOB or zero movement commands are specified for the block

following that specified with a canned cycle, the same canned cycle

is repeated.

2. If the M, S, T function is commanded during the canned cycle

mode, both the canned cycle and M, S, or T function can be

performed simultaneously. If this is inconvenient, cancel the

canned cycle once as in the program examples below (specify G00

or G01) and execute the M, S, or T command. After the execution

of M, S, or T terminates, command the canned cycle again.

(Example)

N003 T0101 ;

N010 G90 X20.0 Z10.0 F0.2 ;

N011 G00 T0202 ;

N012 G90 X20.5 Z10.0 ;
