B-63444EN/01-4

2/ 14

EDIT

DATE DESIG. DESCRIPTION

FANUC Power Mate 0 Operator’s Manual

Addition of Tool geometry and wear offset

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

Add the following description of " 13.1.1 Tool Geometry Offset and Tool Wear Offset” to

the chapter of “

Ⅱ

.13.1 Tool Offset”. And carry down the followed chapter number in turn.

13.1.1

Tool Geometry Offset

and Tool Wear Offset

Point on the

ram

X axis geometry

offset value

X axis wear

offset value

Z axis geometry

offset value

Z axis wear

offset value

Offset

value on

X axis

Offset

value on

Z axis

Point on the program

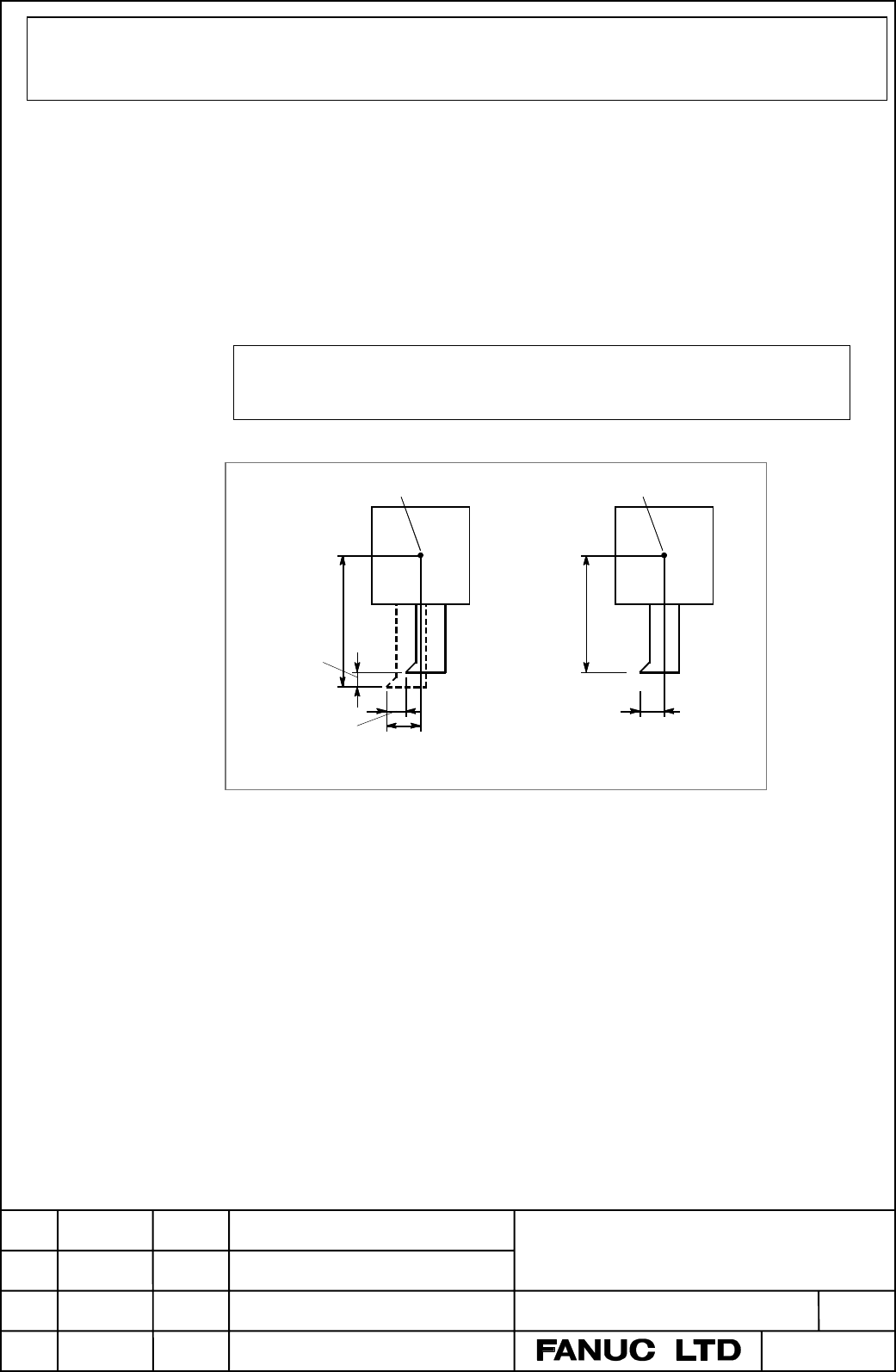

Fig. 13.1.1 (a) Divide into the

tool geometry offset and tool

wear offset

Fig.13.1.1 (b) Combine the tool

geometry offset with tool wear offset

Tool geometry offset and tool wear offset are possible to divide the tool

offset to the tool geometry offset for compensating the tool shape or tool

mounting position and the tool wear offset for compensating the tool nose

wear.

Total value of tool geometry offset value and tool wear offset value is set

as the tool wear offset value without option.

NOTE

Tool geometry offset and tool wear offset are optional function.
