PROGRAMMING

B–63444EN/01

4. INTERPOLATION FUNCTIONS

G31 G91W100.0 F100;

U50.0;

X50.0

50.0

100.0

Skip signal is input here

Actual motion

Motion without skip signal

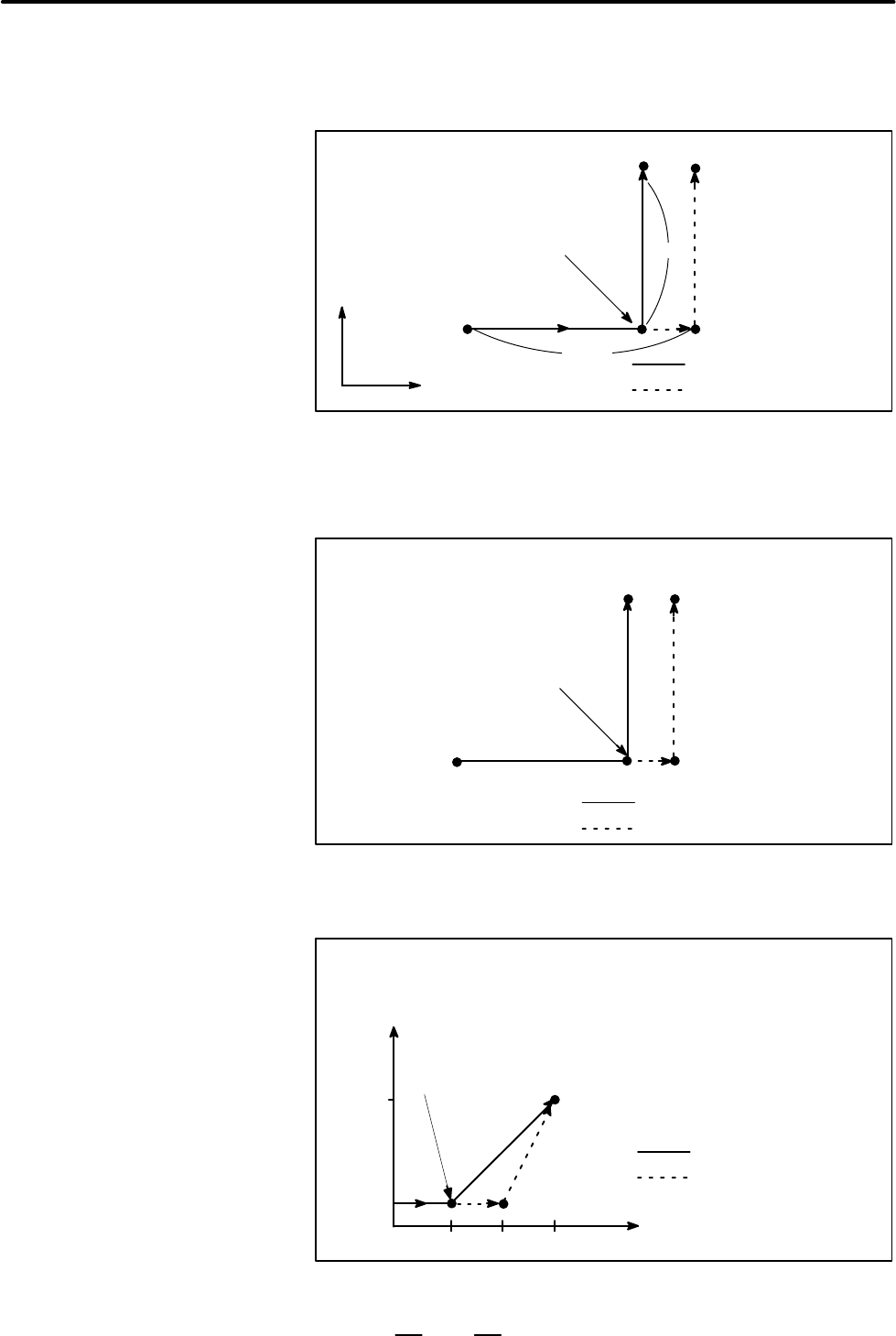

Fig.4.6 (a) The next block is an incremental command

G31 G90Z200.00 F100;

X100.0;

X100.0

Z200.0

Skip signal is input here

Actual motion

Motion without skip signal

Fig.4.6 (b) The next block is an absolute command for 1 axis

(300,100)

100 200 300

100

G31 G90Z200.0 F100;

X100.0 Z300.0;

Actual motion

Motion without skip signal

Skip signal is input here

Fig.4.6 (c) The next block is an absolute command for 2 axes

Examples

D The next block to G31 is

an incremental

command

D The next block to G31 is

an absolute command

for 1 axis

D The next block to G31 is

an absolute command

for 2 axes
