FANUC POWER MATE 0 Operators manual Page 55

Operators manual

Page of 492

/ 492

PROGRAMMING

B–63444EN/01

4. INTERPOLATION FUNCTIONS

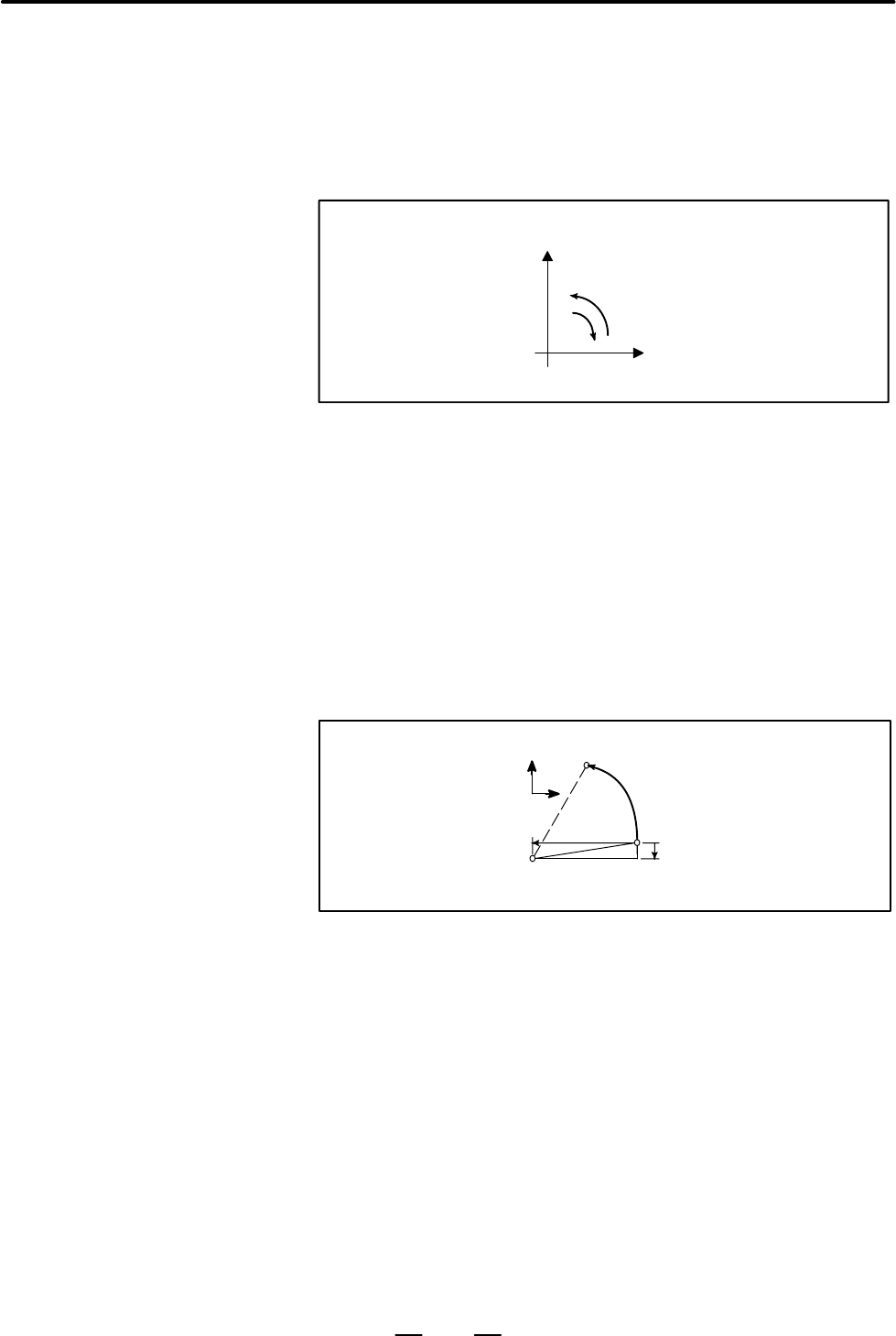

“Clockwise”(G02) and “counterclockwise”(G03) on the Z

plane is

defined when the Z

plane is viewed in the positive–to–negative

direction of the Y

axis in the Cartesian coordinate system. See the figure

below.

G02

G03

The end point of an arc is specified by address Xp or Zp, and is expressed

as an absolute or incremental value according to G90 or G91. For the

incremental value, the distance of the end point which is viewed from the

start point of the arc is specified.

The arc center is specified by addresses I and K for the Xp and Zp axes,

respectively. The numerical value following I or K, however, is a vector

component in which the arc center is seen from the start point, and is

always specified as an incremental value irrespective of G90 and G91, as

shown below.

I, J, and K must be signed according to the direction.

End point (z,x)

Start

point

Center

I0 and K0 can be omitted. When X

and Z

are omitted (the end point is

the same as the start point) and the center is specified with I and K, a 360°

arc (circle) is specified.

G02I; Command for a circle

If the difference between the radius at the start point and that at the

end point exceeds the value in a parameter (No.3410), an alarm (No.024)

occurs.

Explanations

D Direction of the circular

interpolation

D Distance moved on an

arc

D Distance from the start

point to the center of arc
