PROGRAMMING

7. COORDINATE SYSTEM

B–63444EN/01

COORDINATE SYSTEM

By teaching the CNC a desired tool position, the tool can be moved to the

position. Such a tool position is represented by coordinates in a

coordinate system. Coordinates are specified using program axes.

When two program axes, the X–axis and Z–axis, are used, coordinates

are specified as follows:

X_Z_

This command is referred to as a dimension word.

Zero point

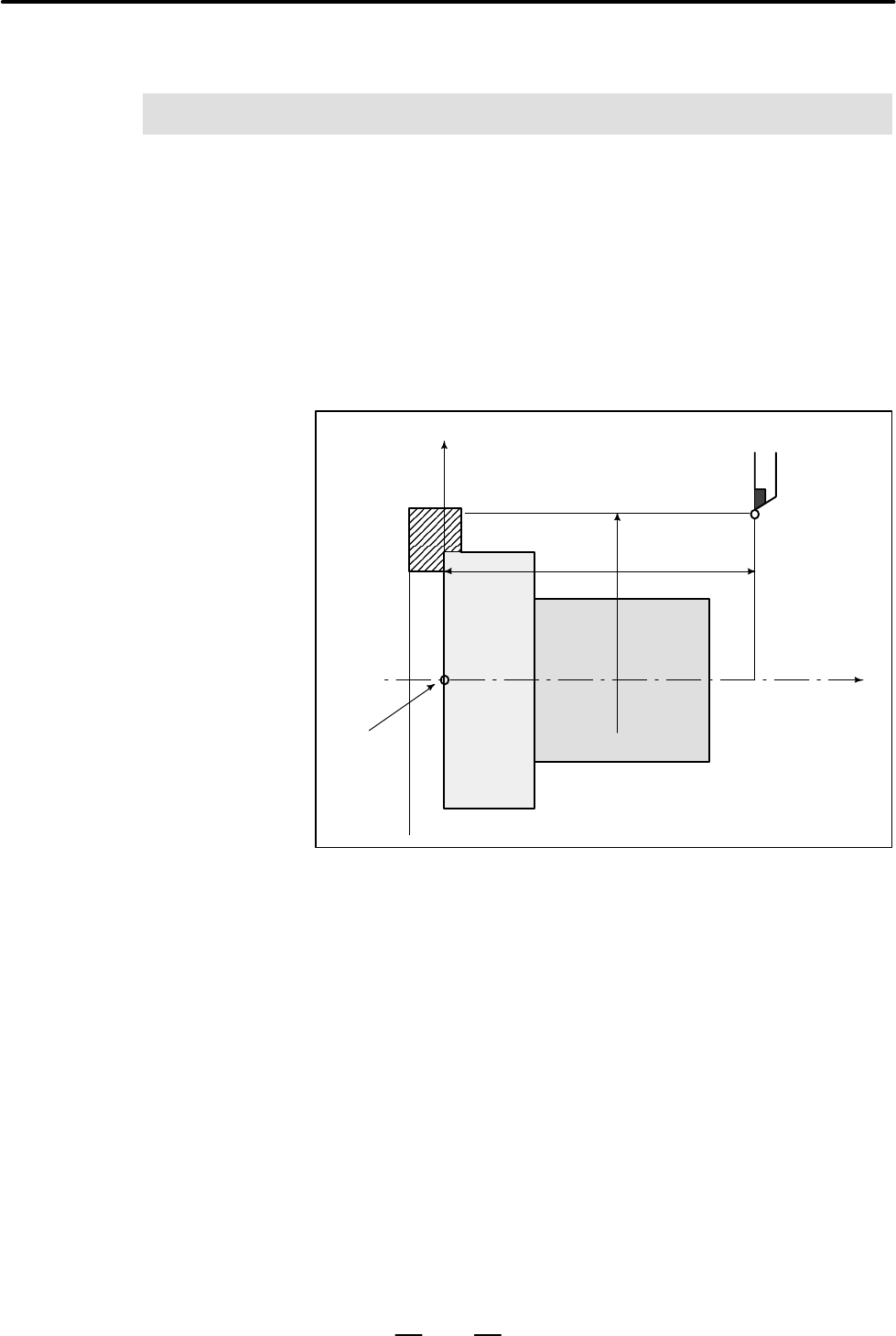

Fig.7 Tool Position Specified by XαZβ

Coordinates are specified in one of following three coordinate systems:

(1) Machine coordinate system

(2) Workpiece coordinate system

The number of the axes of a coordinate system varies from one machine

to another. So, in this manual, a dimension word is represented as IP_.
