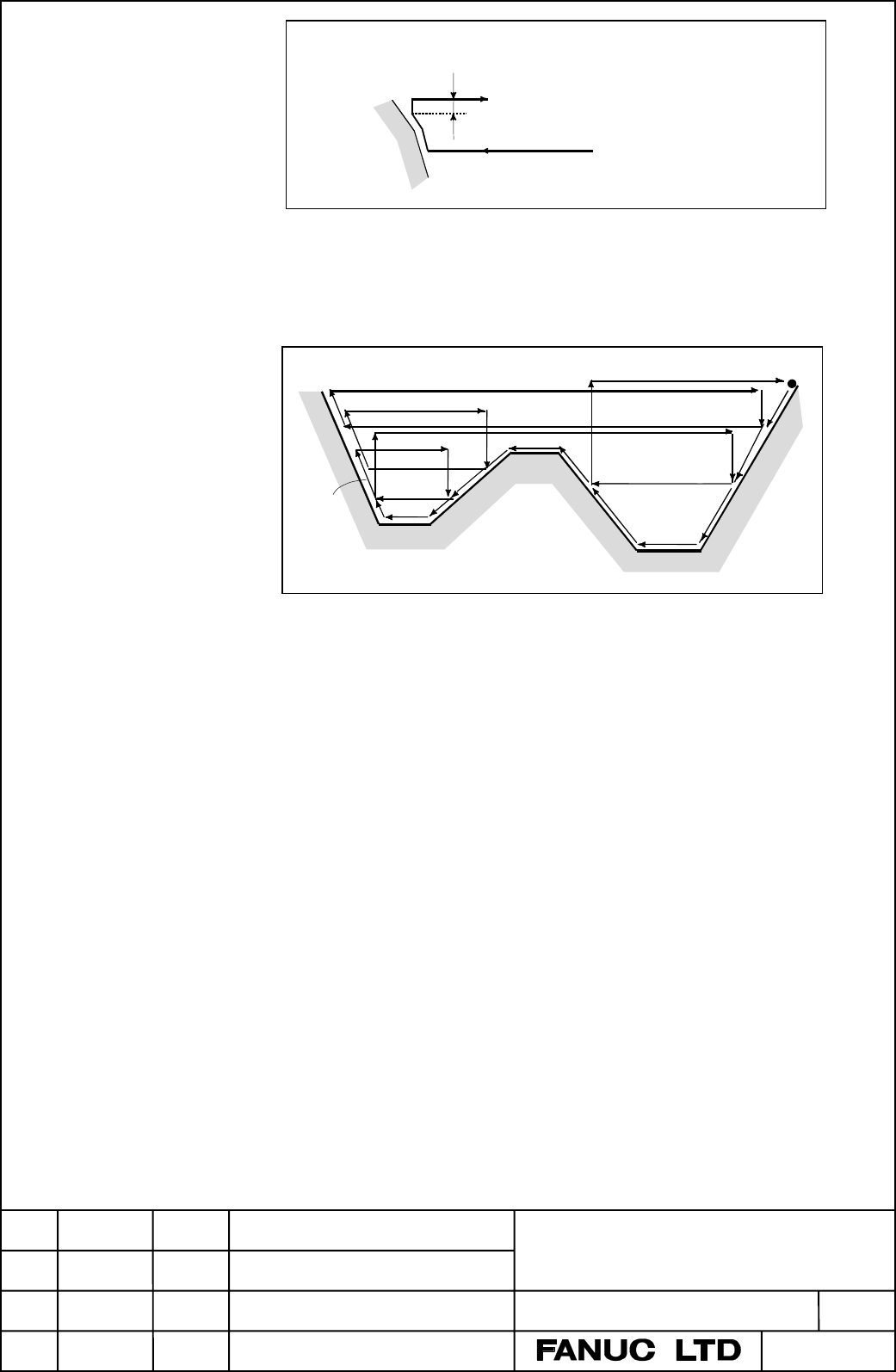

Fig. 13.2.1 (e) Chamfering in Stock Removal in Turning (Type II)

The clearance e (specified in R) to be provided after cutting can also be

set in parameter No. 5133. A sample cutting path is given below:

Fig. 13.2.1 (f) Cutting Path in Stock Removal in Facing

The offset of the tool tip radius is not added to finishing allowances ∆u

and ∆w. In turning, the offset of the tool tip radius is assumed to be zero.

W=0 must be specified ; otherwise, the tool tip may cut into one wall side.

For the first block of a repetitive portion, two axes X (U) and Z (W) must

be specified. When Z motion is not performed, W0 is also specified.

Distinction

between type I

and type II

When only one axis is specified in the first block of a repetitive portion⋅⋅⋅ Type I

When two axes are specified in the first block of a repetitive portion⋅⋅⋅ Type II

When the first block does not include Z motion and type II is to be used, W0

must be specified.

(Example)

TYPE I TYPE II

G71 V10.0 R5.0 ; G71 V10.0 R5.0 ;

G71 P100 Q200....; G71 P100 Q200........;

N100X (U)___; N100X (U)___ Z(W)___;

: :

N200 ; N200 ;

e (set by a parameter)
