13. COMPENSATION FUNCTION

103

When only a T code is specified in a block, the tool is moved by the offset

value without a move command. The movement is performed at rapid

traverse rate in the G00 mode . It is performed at feedrate in other modes.

When a T code with offset number 0 is specified by itself, movement is

performed to cancel the offset.

WARNING

1 When G50 X_Z_T_ ; is specified

Tool is not moved.

The coordinate system in which the coordinate value of the

tool position is (X,Z) is set. The tool position is obtained by

subtracting the offset value corresponding to the offset

number specified in the T code.

2 Do not command a G code other than G50 in group 00 and

a T code together in the same block.

Specifying offset number 0 cancels offset.

NOTE

When LGC, bit 5 of parameter No.5002, is set to 0,

specifying offset number 0 does not cancel offset.

1. When a tool offset number is specified with the last two digits of a T

code

(when LGN, bit 1 of parameter No.5002, is set 0),

N1 X50.0 Z100.0 T0202 ;Specifies offset number 02

N2 Z200.0 ;

N3 X100.0 Z250.0 T0200 ; Cancels offset

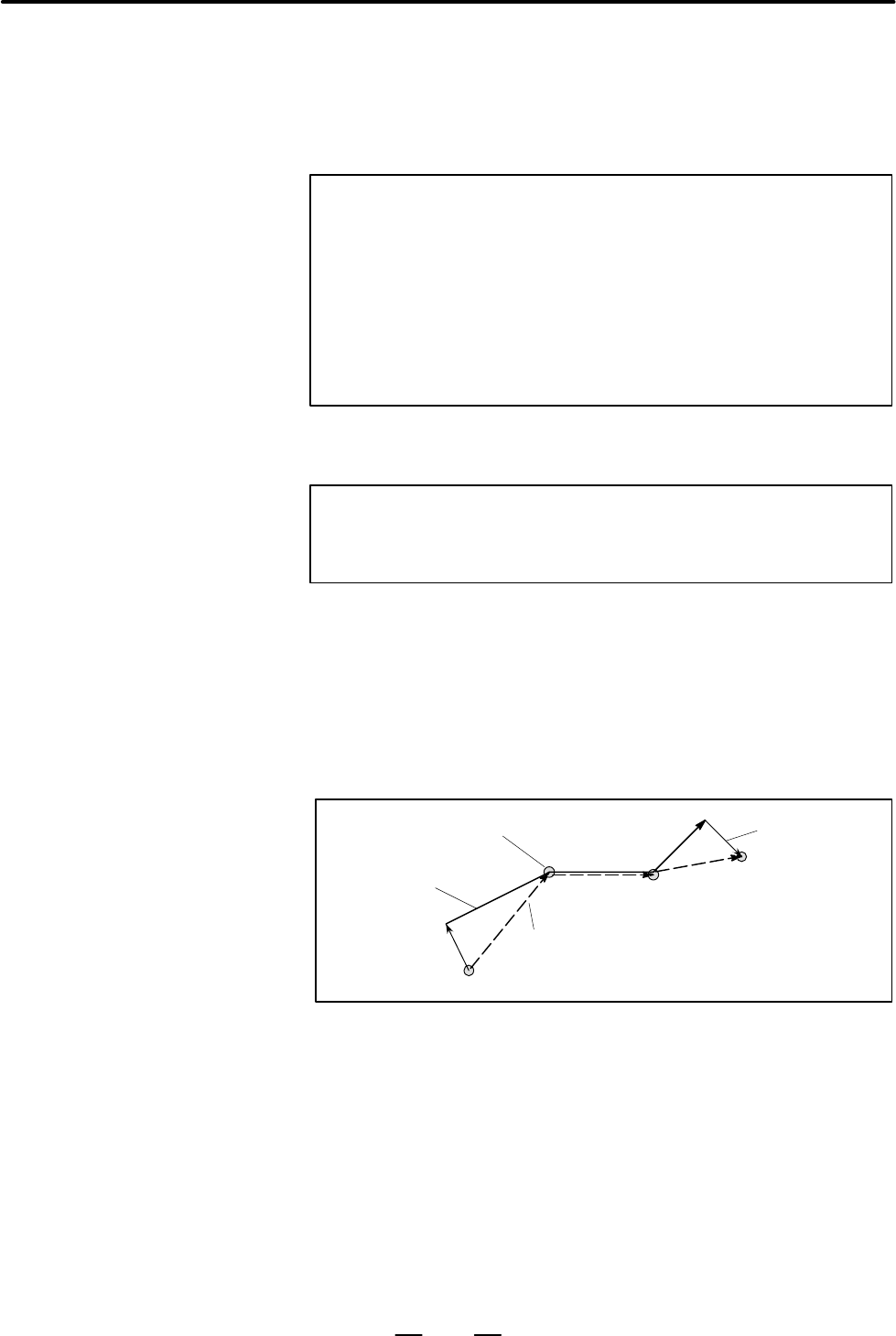

Programmed

path after work

coordinate

system shift

Absolute command

Offset cancelOffset cancel

Tool path after offsetTool path after offset

OffsetOffset

Programmed

path after work

coordinate

system shift

Absolute command

D Only T code

D Offset cancel

Examples
