PROGRAMMING

B–63444EN/01

1. GENERAL

The speed of the tool with respect to the workpiece when the workpiece

is cut is called the cutting speed.

As for the CNC, the cutting speed can be specified by the spindle speed

in rpm unit.

Tool

V: Cutting speed

φD

N rpm

Workpiece

v m/min

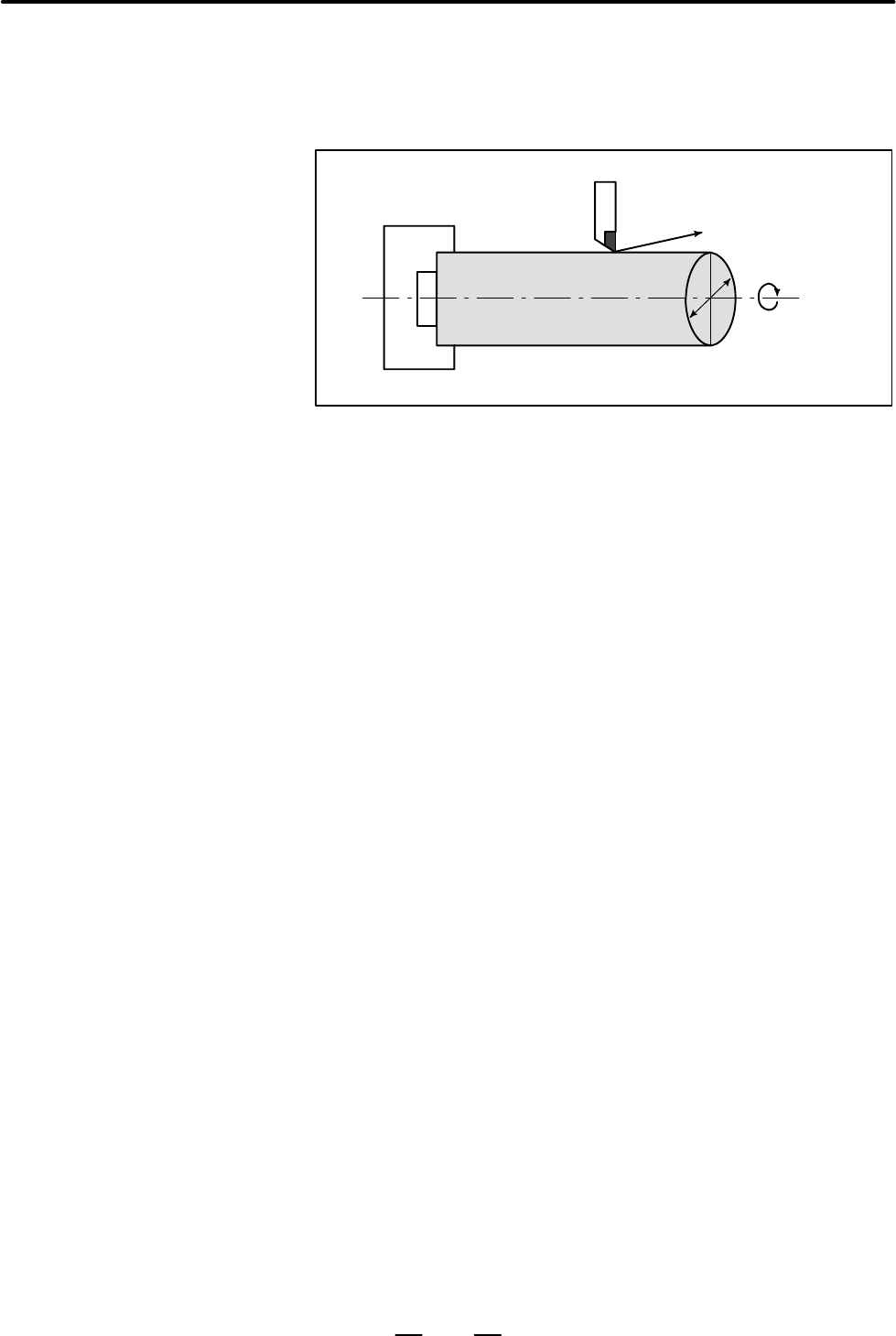

Fig.1.4 Cutting speed

<When a workpiece 200 mm in diameter should be machined at

a cutting speed of 300 m/min. >

The spindle speed is approximately 478 rpm, which is obtained from

N=1000v/πD. Hence the following command is required:

S478 ;

Commands related to the spindle speed are called the spindle speed

function (See II–9).

The cutting speed v (m/min) can also be specified directly by the speed

value. Even when the workpiece diameter is changed, the CNC changes

the spindle speed so that the cutting speed remains constant.

This function is called the constant surface speed control function

(See II–9.3).

1.4

CUTTING

SPEED–SPINDLE

SPEED FUNCTION

Examples
