PROGRAMMING

B–63444EN/01

8. COORDINATE VALUE

AND DIMENSION

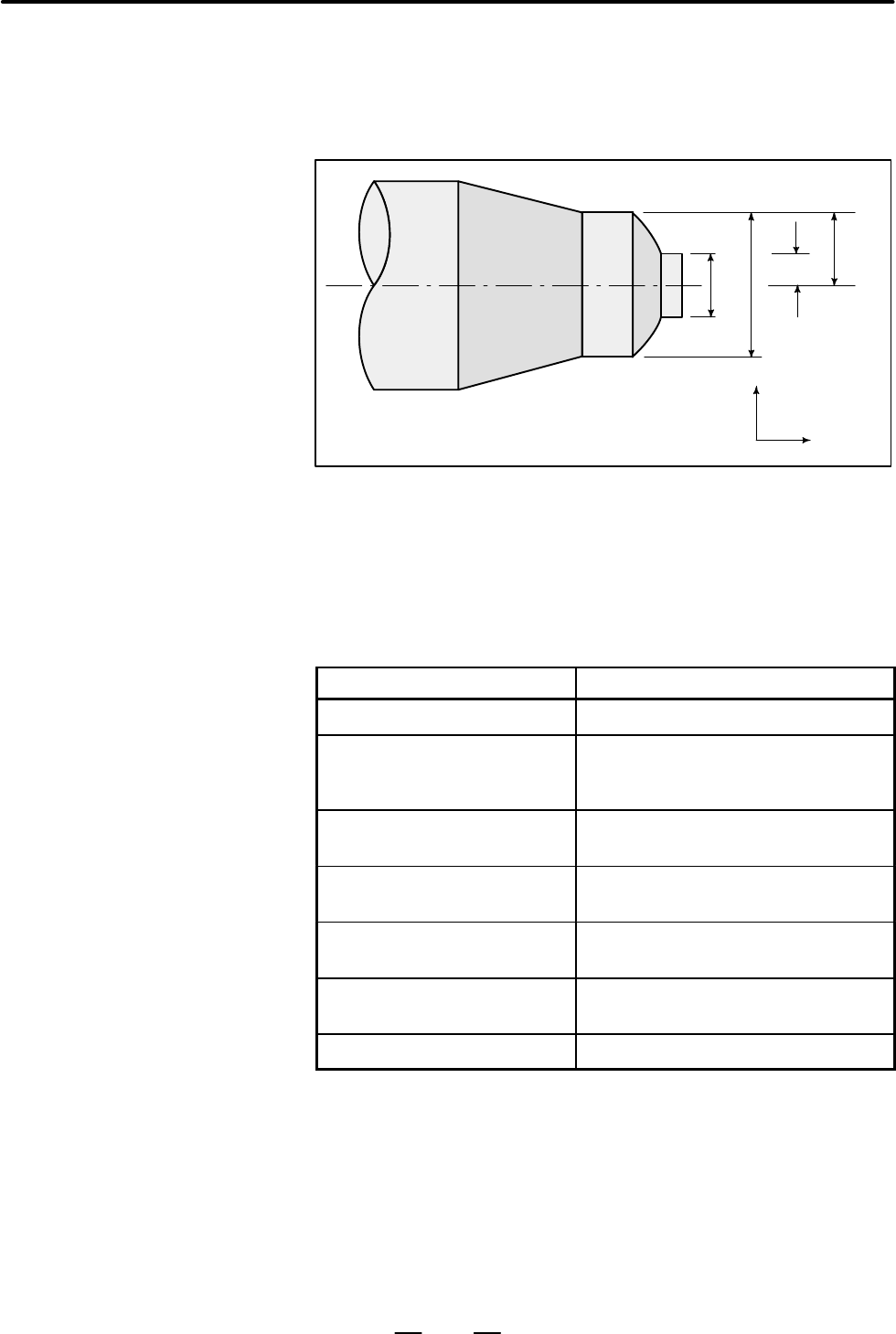

Since the work cross section is usually circular in CNC lathe control

programming, its dimensions can be specified in two ways :

Diameter and Radius

When the diameter is specified, it is called diameter programming and

when the radius is specified, it is called radius programming.

Z axis

X axis

, D

: Diameter programming

, R

: Radius programming

Radius programming or diameter programming can be specified by

parameter DIA (No.1006#3). When using diameter programming, note

the conditions listed in the table 8.4.

Table 8.4 Notes on specifying diameter value

Item Notes

X axis command Specified with a diameter value

Incremental command Specified with a diameter value

In the above figure, specifies D2 minus

D1 for tool path B to A.

Coordinate system setting (G50) Specifies a coordinate value with a diam-

eter value

Component of tool offset value Parameter (No.5004#1) determines either

diameter or radius value

Radius designation in circular in-

terpolation (R, I, K, and etc.)

Specifies a radius value

Feedrate along axis Specifies change of radius/rev. or

change of radius/min.

Display of axis position Displayed as diameter value

8.4

DIAMETER AND

RADIUS

PROGRAMMING

Explanations

D Notes on diameter

programming/radius

programming for each

command
