FANUC POWER MATE 0 Operators manual Page 268

Operators manual

Page of 492

/ 492

OPERATION

5. TEST OPERATION

B–63444EN/01

256

The tool is moved at the feedrate specified by a parameter regardless of

the feedrate specified in the program. This function is used for checking

the movement of the tool.

Tool

Chuck

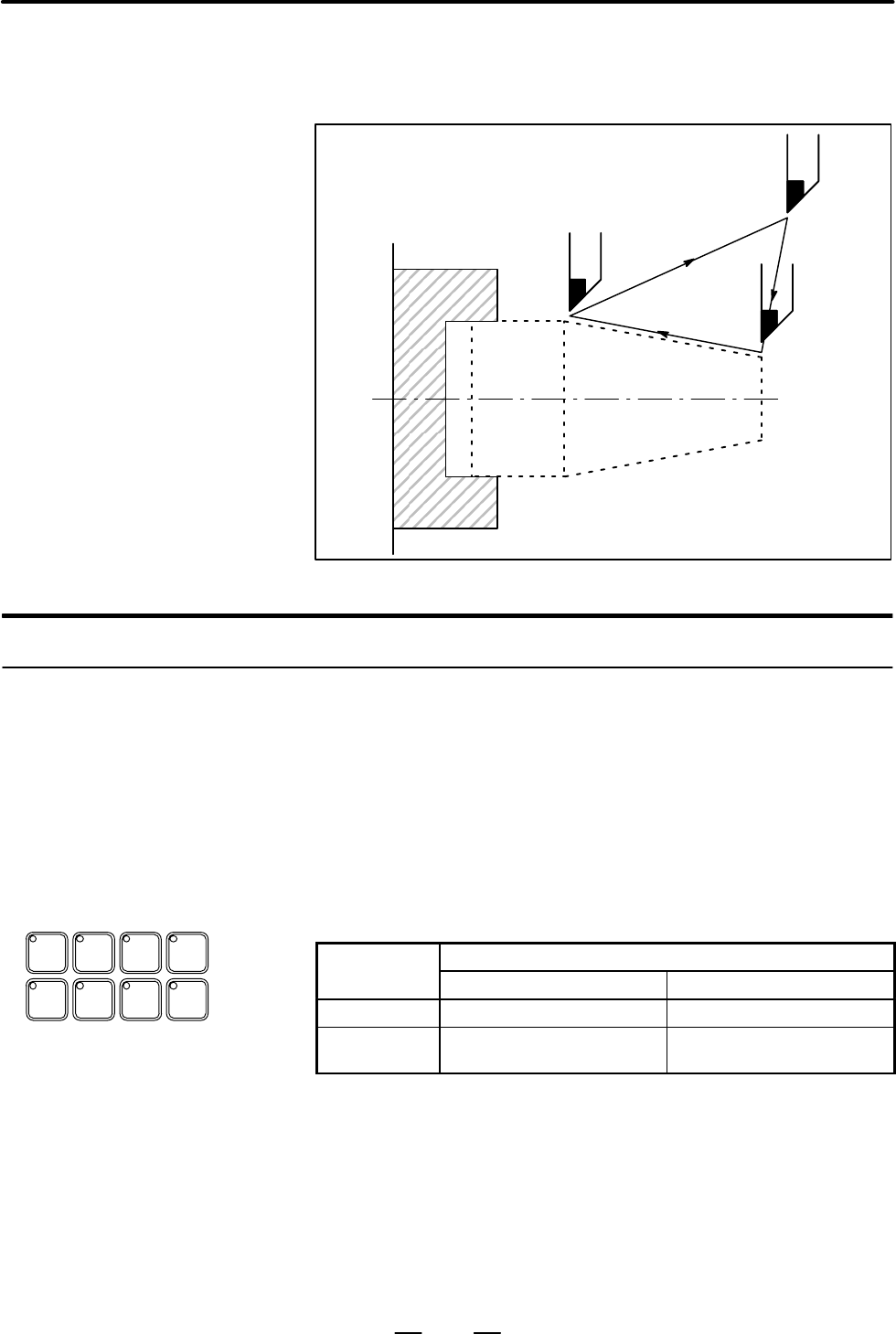

Fig.5.4 Dry run

Procedure for Dry Run

Press the dry run switch on the machine operator’s panel during automatic

operation.

The tool moves at the feedrate specified in a parameter. The rapid traverse

switch can also be used for changing the feedrate.

Refer to the appropriate manual provided by the machine tool builder for

dry run.

The dry run feedrate changes as shown in the table below according to the

rapid traverse switch and parameters.

Rapid traverse Program command

button

Rapid traverse Feed

ON Rapid traverse rate Dry run feedrate Max.JV *2)

OFF Dry run speed JV,or rapid

traverse rate *1)

Dry run feedrate JV *2)

Max. feedrate of command Setting by parameter No.1422. . . . . . . . . .

Rapid traverse rate Setting by parameter No.1420. . . . . . . . . . . . . . . . .

Dry run feedrate Setting by parameter No.1410. . . . . . . . . . . . . . . . . . .

JV: Jog feedrate override

*1:Dry run feedrate x JV when parameter RDR (bit 6 of No. 1401) is 1.

Rapid traverse rate when parameter RDR is 0.

*2:

Clamping occurs at the maximum cutting feedrate.

max

: Maximum value for jog feedrate override

5.4

DRY RUN

Procedure

Explanation

D Dry run feedrate

DRY

RUN

LOCK

SINGLE

BLOCK

OPT

STOP

MST

LOCK

BLOCK

SKIP

WORK

LIGHT
