FANUC POWER MATE 0 Operators manual Page 287

Operators manual

Page of 492

/ 492

OPERATION

B–63444EN/01

8. DATA INPUT/OUTPUT

275

When the program is input from the floppy, the file to be input first must

be searched.

For this purpose, proceed as follows:

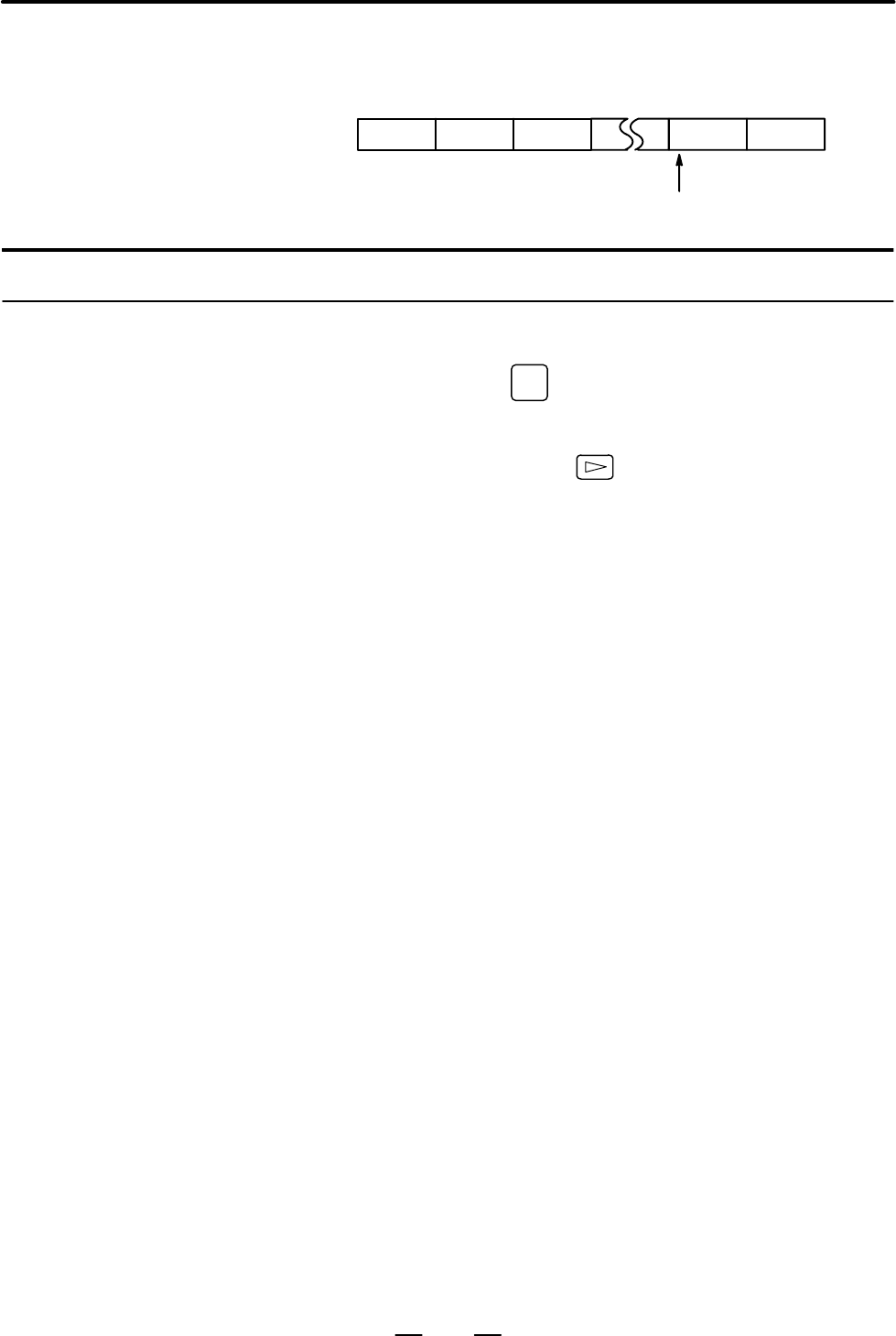

File 1

File searching of the file n

File n

BlankFile 2 File 3

File heading

1 Press the EDIT or MEMORY switch on the machine operator’s panel.

2 Press function key

PROG

3 Press soft key

[(OPRT)]

4 Press the rightmost soft key (next–menu key).

5 Enter address N.

6 Enter the number of the file to search for.

⋅ N0

The beginning of the cassette is searched.

One of N1 to N9999

Of the file Nos. 1 to 9999, a designated file is searched.

⋅ N–9999

The file next to that accessed just before is searched.

⋅ N–9998

When N–9998 is designated, N–9999 is automatically inserted

each time a file is input or output. This condition is reset by the

designation of N0,N1 to 9999, or N*9999 or reset.

7 Press soft keys

[FSRH] and [EXEC]

The specified file is searched for.

1 Select EDIT or MEMORY mode.

2 Push <PRGRM> key to select the program screen.

3 Key in address N.

4 Key in a file number.

5 Press <READ> key.

The following head searching occurs according to the number

specified:

(a) N0

The beginning of the cassette is searched.

(b)One of N1 to N9999

Of the file Nos. 1 to 9999, a designated file is searched.

The file next to that accessed just before is searched.

8.2

FILE SEARCH

Procedure (CRT/MDI)

Procedure (DPL/MDI)
