PROGRAMMING

B–63444EN/01

6. REFERENCE POSITION

Tools are automatically moved to the reference position via an

intermediate position along a specified axis. Or, tools are automatically

moved from the reference position to a specified position via an

intermediate position along a specified axis. When reference position

return is completed, the lamp for indicating the completion of return goes

on.

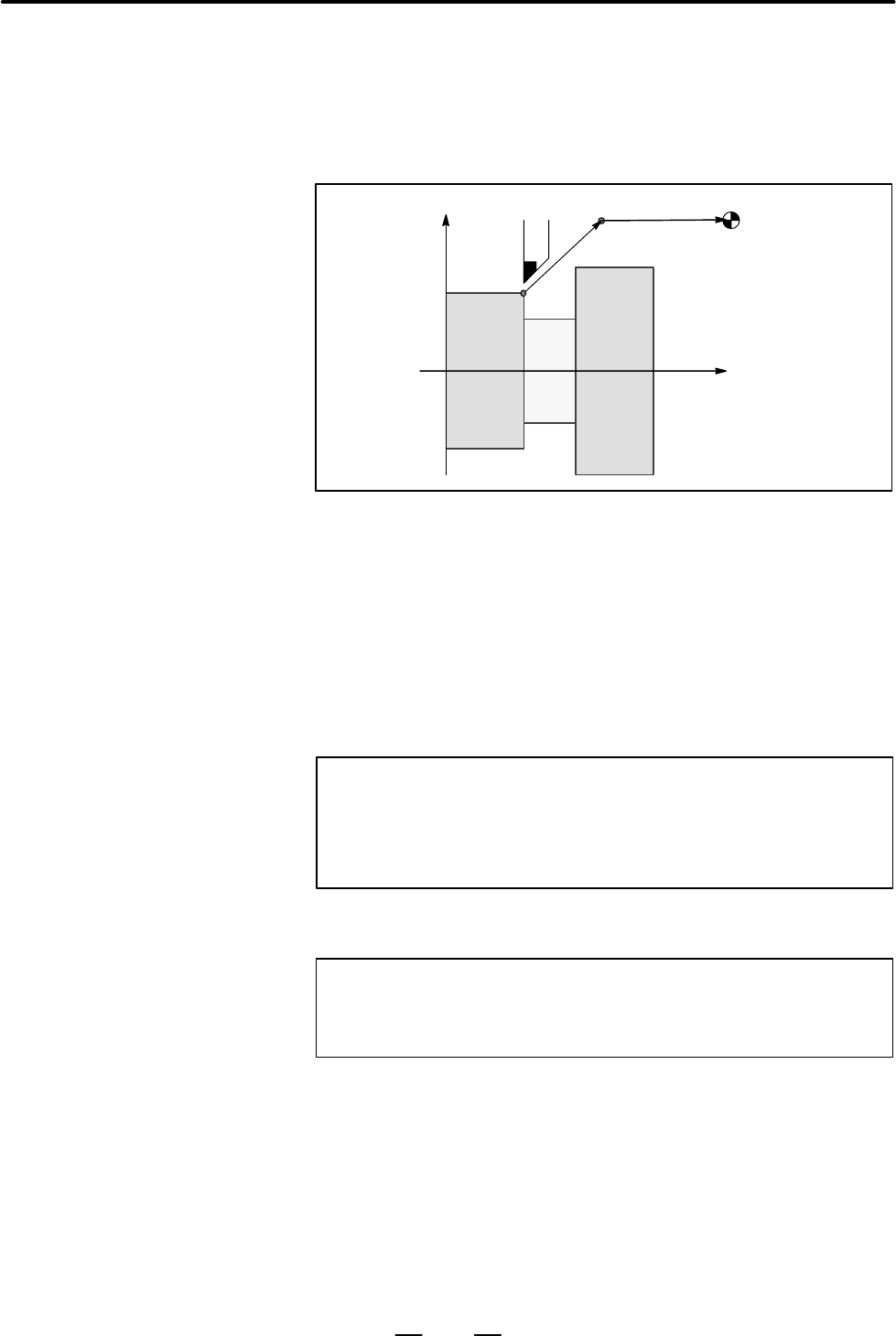

Intermediate position

Reference position

Fig.6 (b) Reference position return

The reference position return check (G27) is the function which checks

whether the tool has correctly returned to the reference position as

specified in the program. If the tool has correctly returned to the reference

position along a specified axis, the lamp for the axis goes on.

G28 _ ;

Reference position return

: Command specifying the intermediate position

(Absolute/incremental command)

G27 _ ;

: Command specifying the reference position

(Absolute/incremental command)

D Reference position

return and movement

from the reference

position

D Reference position

return check

Format

D Reference position

return

D Reference position

return check
