FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCLE AND

MULTIPLE REPETITIVE CYCLE

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

There are three canned cycles: the outer diameter/internal diameter

cutting canned cycle (G90), the thread cutting canned cycle (G92), and

the end face turning canned cycle (G94).

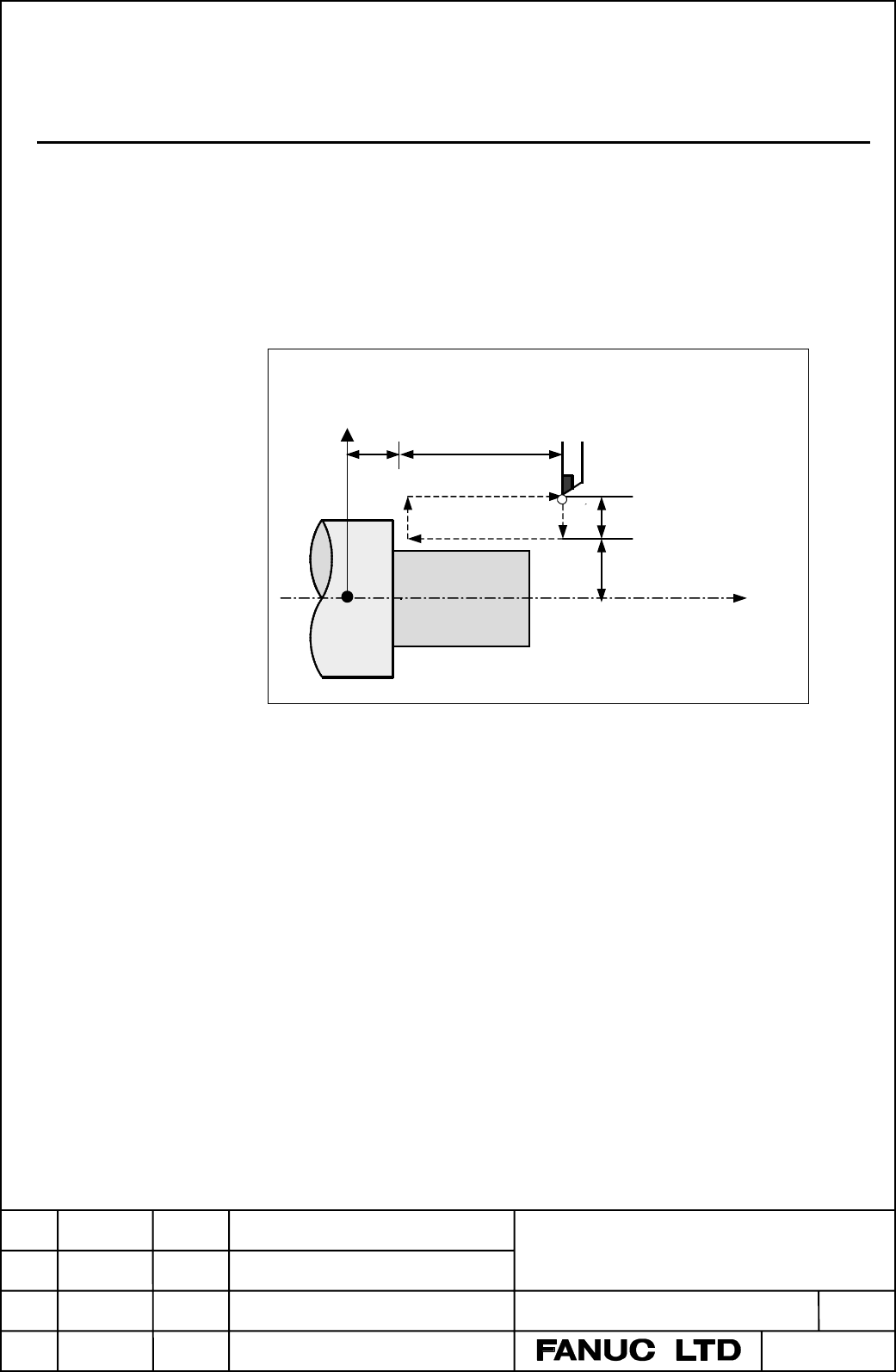

Fig. 13.1.1 (a) Straight Cutting Cycle

In incremental programming, the sign of the numbers following

address U and W depends on the direction of paths 1 and 2. In

the cycle of 13. 1.1 (a), the signs of U and W are negative. In

single block mode, operations 1, 2, 3 and 4 are performed by

pressing the cycle start button once.

13.1

CANNED CYCLE

(G90, G92, G94)

13.1.1

Outer Diameter /

Internal Diameter

Cutting Cycle (G90)

Straight cutting cycle

G90X (U)__Z (W)__F__ ;

• Axis

U/2

2(F)

3(F) 1

(

)

4(R)

(R)⋅⋅⋅Rapid traverse

(F)⋅⋅⋅ Specified by F code

• Axis
