FANUC Power Mate 0 Operator’s Manual

ADDITION OF CANNED CYCLE AND

MULTIPLE REPETITIVE CYCLE

TITLE

DRAW.NO.

CUST.

SHEET

011129 New design

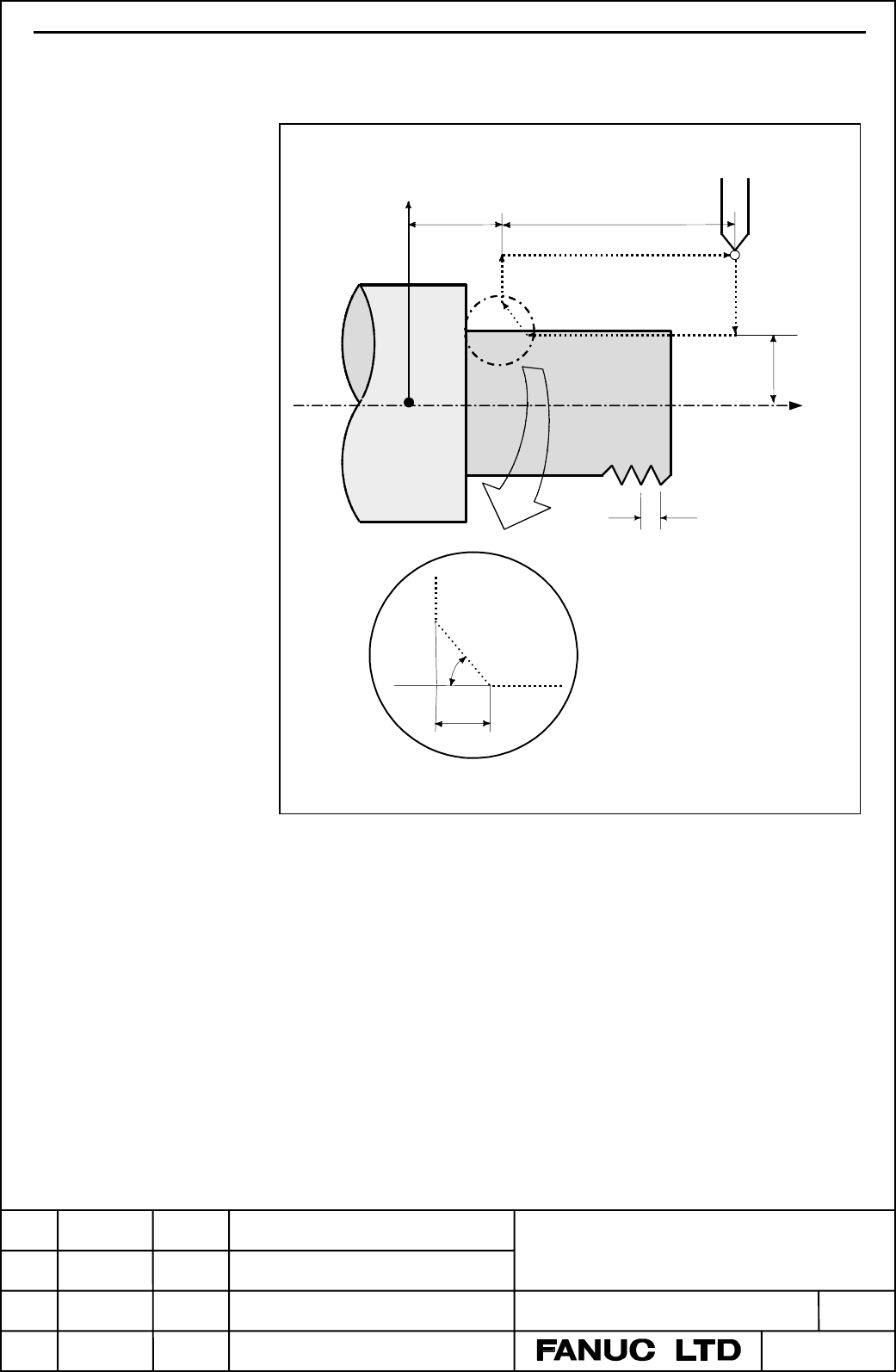

Fig. 13.1.2 (a) Straight Thread Cutting

In incremental programming, the sign of numbers following addresses

U and W depends on the direction of paths 1 and 2. That is, if the

direction of path 1 is the negative along the X axis, the value of U is

negative. The range of thread leads, limitation of spindle speed, etc.

are the same as in G32 (thread cutting). Thread chamfering can be

performed in this thread cutting cycle. A signal from the machine tool,

initiates thread chamfering. The chamfering distance is specified in a

range from 0.1L to 12.7L in 0.1L increments by parameter (No. 5130).

(In the above expression, L is the thread lead.) In the single block

mode, operations 1, 2, 3, and 4 are performed by pressing cycle start

button once.

13.1.2

Thread Cutting Cycle

(G92)

• Axis

G92X(U)__ Z(W)__ F__ ; Lead (L) is specified by F.

X/2

X Axis

1(R)

(

)

3(R)

(

)

Approx. 45

Detailed chamfered thread

(The chamfered angle in the

left figure is 45 degrees or

less because of the delay in

the servo system.

R…Rapid traverse

F…Specified by F code
