2.EXPLANATION OF OPERATION MODES FANUC AC SPINDLE MOTOR αi series B-65280EN/05

- 144 -

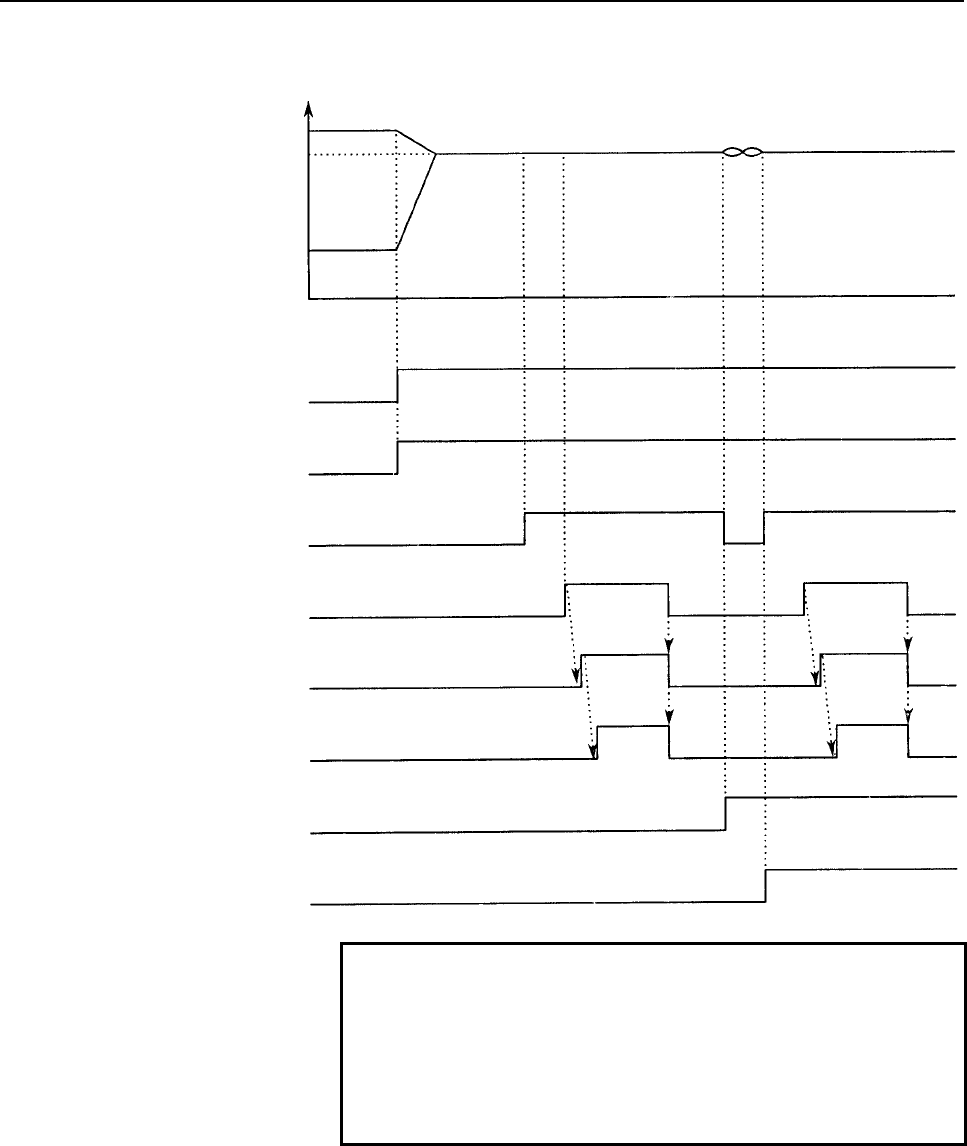

(3) When the velocity integral control signal is used

Speed

Synchronous

speed

Spindle 1

Phase matching

Spindle synchronous

control signal

SPSYC

Spindle synchronous

speed command signal

R12I-R01I

Spindle phase

synchronous control signal

SPPHS

Spindle synchronous speed

control completion signal

FSPSY

Spindle synchronous speed

control completion signal

FSPPH

(Note)

Chuck close command signal

Chuck close completion signal

Velocity integral control signal

INTGA

(Note)

Spindle 2

NOTE

Turn on (set to 1) the velocity integral control signal

INTGA only when the two spindles are seizing the

same workpiece. If the signal is turned on (set to 1)

in other cases, the velocity loop integral function is

disabled. So, an increased synchronous error can

result.
