B-65280EN/05 FANUC AC SPINDLE MOTOR αi series 2.EXPLANATION OF OPERATION MODES
- 41 -

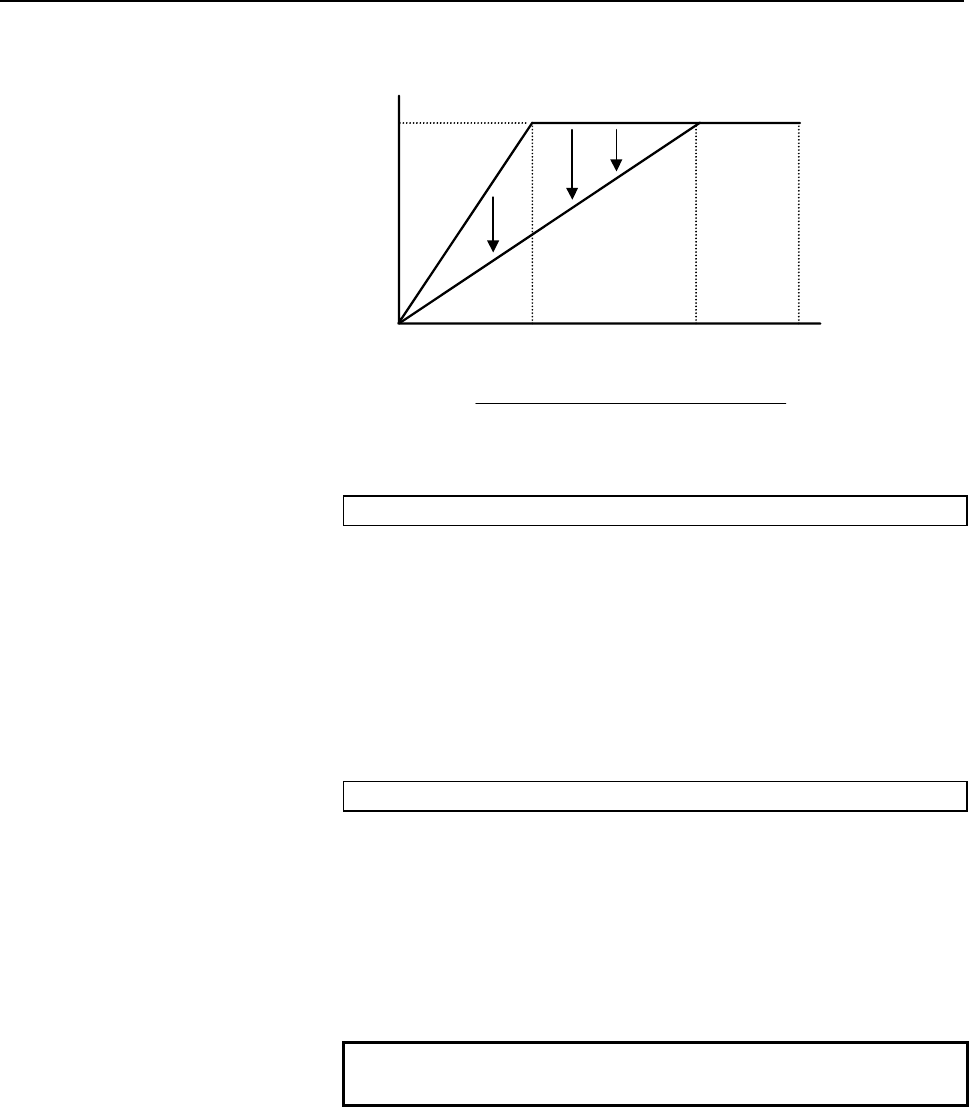

[Output limitation pattern 3]--- Setting data = 7, 8, 9 ---
Nout
Output
Speed
Pm
0
NmNb0
Catalog value
Limit value
Nb
4029 No. parameter in Setting
100
Nout ×=
15i 16i 30i
3029 4029 4029
Output limitation value
Unit of data : 1%
Valid data range : 0 to 100
Standard setting value : 100
This parameter sets a desired limitation value, with the maximum
output (overload tolerance) being 100%.
This setting becomes valid when output is limited by setting parameter
No. 4028.
15i 16i 30i
3030 4030 4030
Soft start/stop setting time
Unit of data : 1min
-1
/sec (Unit of 10min
-1
/sec when bit 2 (SPDUNT) of parameter
No. 4006 = 1)
Valid data range : 0 to 32767
Standard setting value : 0
This parameter sets an acceleration value (speed change rate) when the
soft start/stop function is enabled (when the soft start/stop signal
SOCNA = 1).
NOTE
When 0 is set, the soft start/stop function is disabled.
